Which connectors is this tool case designed for?

This kit is specifically configured for assembling and crimping MC4 solar cable connectors.

What wire sizes can the included stripping pliers handle?

The 12 12 12 precision insulation stripper works with solar cables from 4.0 to 10.0 mm².

Which pliers are included in this 7-piece set?

The set includes the 97 43 200 A crimp system pliers, 95 16 165 cable shears, and 12 12 12 precision stripper.

Can the crimping dies be replaced or swapped?

Yes, the 97 43 200 A is a system plier designed for interchangeable Knipex crimping dies.

Is all the tooling in this set 1000V insulated?

The set has a mixed VDE rating and does not feature full 1000V insulation across all tools.

KNIPEX 97 91 04 V02 full tool kit for photovoltaics 7-piece

Name: KNIPEX 97 91 04 V02 full tool kit for photovoltaics 7-piece
Brand: KNIPEX
SKU: 08093464
Price: 514.8 EUR
Availability: PreOrder

Supplier number: KNIPEX 97 91 04 V02 | EAN 4003773089001

Recommended Retail Price €790.13

514.80 tax incl.

€425.45 excl. VAT (incl. all environmental contributions)

On order: delivered from 20/10/2026

set

Delivery by DHL

✆ Talk to a specialist

Complete tool kit for photovoltaics

Practical benefits

Precise solar connector crimping: You achieve calibrated and secure crimp connections on MC4 connectors from 4.0 to 10.0 mm² with Knipex.
Clean and easy cutting: You cut copper solar cables up to a diameter of 15 mm cleanly using the included shears.
Organized and impact-resistant storage: The foam insert in a durable plastic case keeps every tool securely seated and ready for transport.

In a nutshell

The right choise for

With the Knipex 97 91 04 V02 tool case, you have the dedicated tools needed to install and maintain photovoltaic systems with confidence. You cut copper solar cables up to 15 mm in diameter cleanly using the 95 16 165 cable shears and strip 4.0 to 10.0 mm² wires accurately with the 12 12 12 precision stripper. The 97 43 200 a crimp system pliers, combined with the MC4 crimping die and locator, deliver secure and calibrated crimp connections on solar connectors. The included assembly tool set lets you tighten and unlock MC4 housings with ease. Kept organized in an impact-resistant case with foam inlay, your tools stay protected on every rooftop or jobsite.

Product information Accessories FAQ

€514.80

tax incl.

Key features according to our expert

VDE approved: Mixed
With safety colour code 1000V: No
ESD: No
Supplied in: Case
Quantity per set: 7

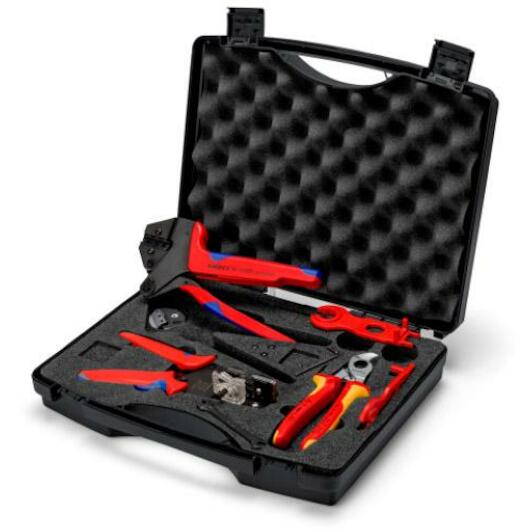

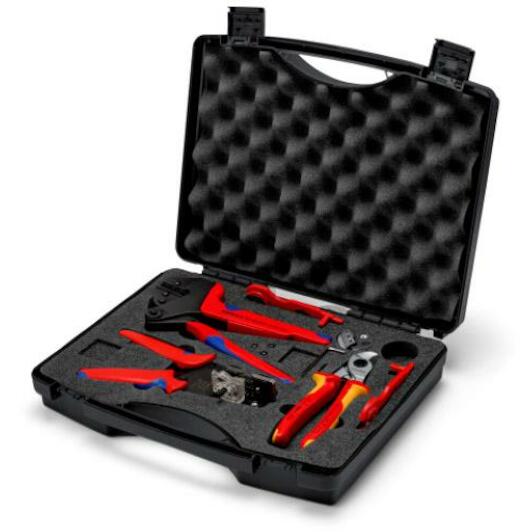

Scope of delivery

1 x 12 12 12 Knipex Precision Stripping Pliers with precision-ground blades (4.0 - 10.0 mm²)
1 x 95 16 165 Knipex Cable Cutters (Ø 15 mm / 50 mm²)
1 x 97 43 200 A Knipex Crimping Pliers for interchangeable crimping dies
1 x 97 49 71 Knipex Crimping dies for solar connectors MC4 (Multi-Contact) (4.0 - 10.0 mm²)
1 x 97 49 71 1 Knipex Positioning aid for 97 49 71 (solar connectors MC4)
1 x 97 49 66 2 Knipex Mounting tool set for solar connectors MC4 (Multi-Contact)

Product description

With tools for photovoltaics
With crimping system pliers 97 43 200 A for interchangeable crimping dies - the crimping pressure is set exactly at the factory (calibrated)
with cable cutter 95 16 165 for copper cables up to Ø 15 mm
With assembly tool (Allen key) for changing crimp inserts
With tool set 97 49 66 2 for tightening the swivel on MC4® solar connectors and unscrewing the latch on MC4® enclosures
Foam lining with cut-outs for tools, crimping profiles and positioning aids

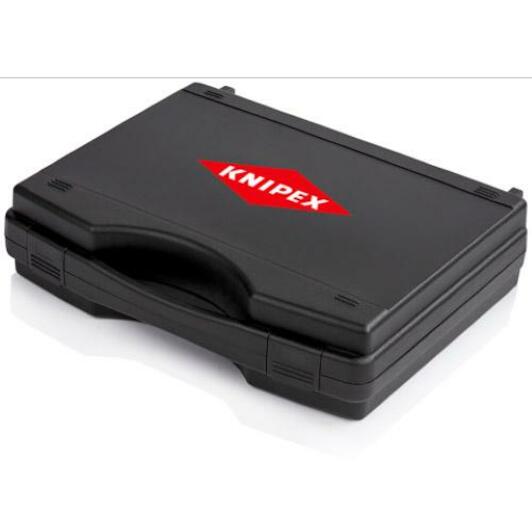

Impact-resistant plastic case
External dimensions (W x H x D): 345 x 80 x 280 mm
With crimping insert 97 49 71 (4.0 / 6.0 / 10.0 mm²) for solar connectors MC4® (Multi-Contact), positioning aid97 49 71 1 and assembly tool set 97 49 66 2
With precision wire stripper 12 12 12 (4.0 / 6.0 / 10.0 mm²) with formers for larger strip thicknesses

All Features

Vde approved: Mixed
With safety colour code 1000v: No
Esd: No
Supplied in: Case
Quantity per set: 7
Dimensions: 280 x 80 mm
Weight: 2.010 g
Rohs compliance: irrelevant
Reach compliance: contains SVHC

Brand KNIPEX
08093464
EAN 4003773089001
Supplier number KNIPEX 97 91 04 V02

Accessories

KNIPEX 97 91 01 LE Tool box for photovoltaics empty

Recommended Retail Price €82.28

52.20

€43.14 excl. VAT

Delivery time average 10 days.

Frequently asked questions about this product

Answered by specialists

Which connectors is this tool case designed for?: This kit is specifically configured for assembling and crimping MC4 solar cable connectors.
What wire sizes can the included stripping pliers handle?: The 12 12 12 precision insulation stripper works with solar cables from 4.0 to 10.0 mm².
Which pliers are included in this 7-piece set?: The set includes the 97 43 200 A crimp system pliers, 95 16 165 cable shears, and 12 12 12 precision stripper.
Can the crimping dies be replaced or swapped?: Yes, the 97 43 200 A is a system plier designed for interchangeable Knipex crimping dies.
Is all the tooling in this set 1000V insulated?: The set has a mixed VDE rating and does not feature full 1000V insulation across all tools.
