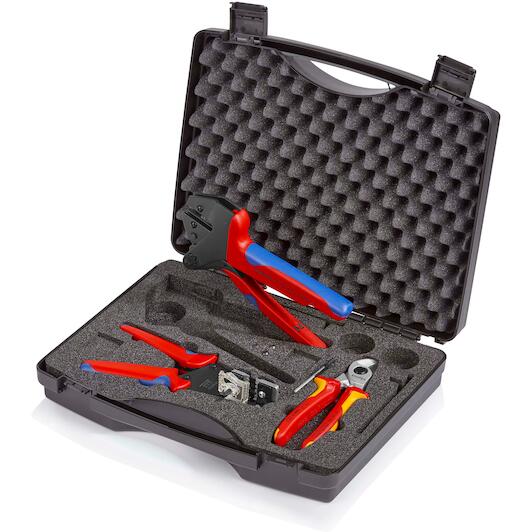

KNIPEX 97 91 03 padded tool kit for photovoltaics 3-piece

With the Knipex 97 91 03 photovoltaic tool set, you handle solar panel wiring with complete precision and confidence. The 95 16 165 cable shears cut cleanly through copper and aluminium cables up to 15 mm without crushing the conductors. Using the 12 12 12 precision stripping pliers, you remove tough solar insulation from 4.0 to 10.0 mm² without damaging delicate copper strands. For secure terminations, the 97 43 200 a crimp system pliers feature factory-calibrated crimp pressure and take interchangeable crimp inserts. Kept organized in an impact-resistant case with custom foam cut-outs, this set ensures you are fully prepared for every rooftop installation.

Scope of delivery

• 1 x 12 12 12 Knipex Precision Stripping Pliers with precision-ground blades (4.0 - 10.0 mm²)
• 1 x 95 16 165 Knipex Cable Cutters (Ø 15 mm / 50 mm²)
• 1 x 97 43 200 A Knipex Crimping Pliers for interchangeable crimping dies

Product description

• With tools for photovoltaics
• With precision wire stripper 12 12 12 (4.0 / 6.0 / 10.0 mm²) with formers for larger stripping thicknesses
• with cable cutter 95 16 165 for copper cables up to Ø 15 mm
• With crimping pliers 97 43 200 A for interchangeable crimping dies - the crimping pressure is set exactly at the factory (calibrated)
• Without crimp inserts - for individual equipment - please order separately (see part no. 97 49..)
• With assembly tool (Allen key) for changing crimp inserts
• Impact-resistant plastic case
• Foam lining with cut-outs for tools, crimping dies (not included) and positioning aids
• External dimensions (W x H x D): 345 x 80 x 280 mm
