KNIPEX

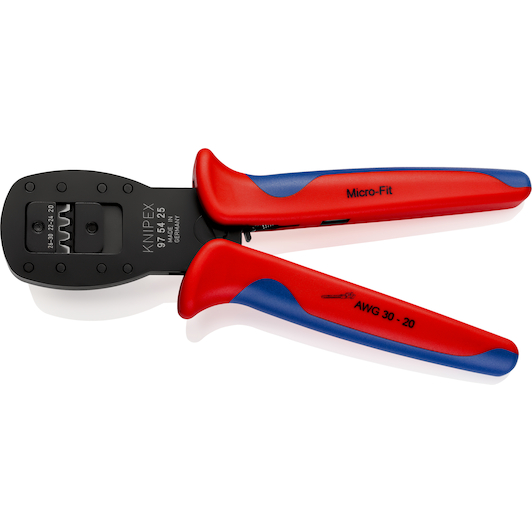

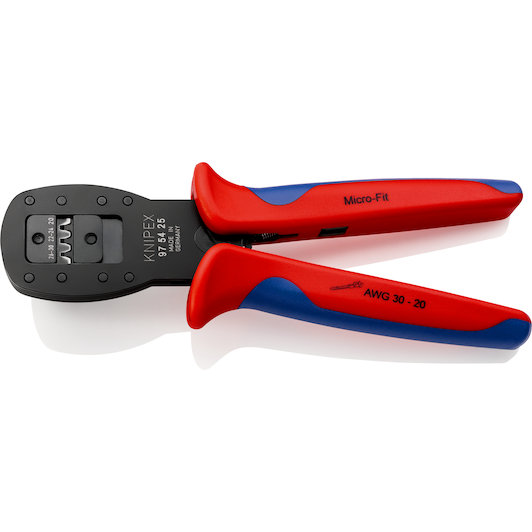

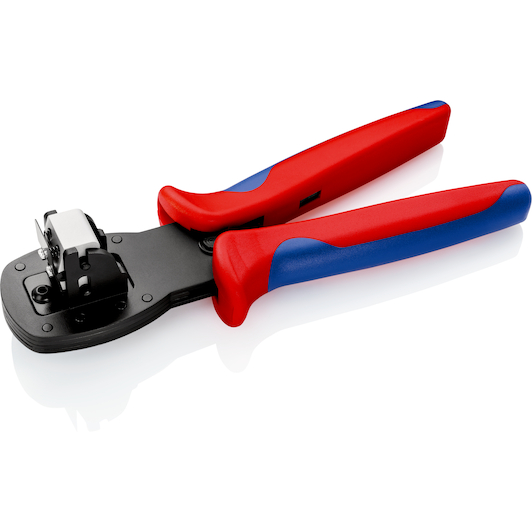

KNIPEX 97 54 25 crimping pliers for Micro-Fit miniature plugs (brown-plated with multi-component handles 190 mm)

Recommended Retail Price €544.20
328.80 tax incl.
€271.74 excl. VAT (incl. all environmental contributions)
On order: delivered from 28/05/2026
each

  • Delivery by DHL

Product description

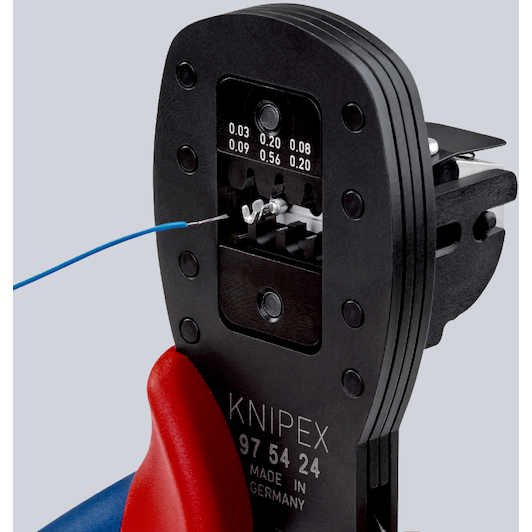

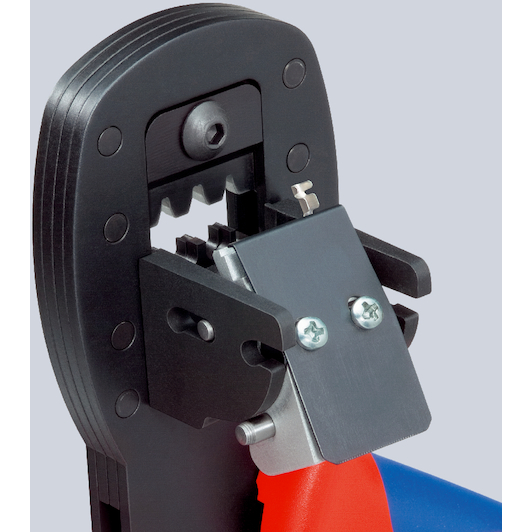

  • Parallel shrink jaws to meet the particularly high requirements of small connector types
  • Consistently high shrink quality thanks to precision jaws and forcing closure (unlockable)
  • Shrink pressure is set accurately at the factory (calibrated)
  • Increased power transmission thanks to knee lever design for effortless work
  • Crimping pliers for other miniature connectors, e.g. HD 22; Modu IV; Micro Timer; ... on request
  • Crimping insert is not exchangeable
Key features according to our expert
  • Min. wire cross-section: 0,35 mm²
  • Pliers type: Cable lug crimping pliers
  • Number of crimp profiles: 3
  • Length: 190 mm
  • Max. wire section: 1 mm²
Specifications / All features
  • Brand: KNIPEX
  • EAN: 4003773079859
  • Supplier number: KNIPEX 97 54 25
Min. wire cross-section
0,35 mm²
Pliers type
Cable lug crimping pliers
Number of crimp profiles
3
Length
190 mm
Max. wire section
1 mm²
Handle
with multi-component handle
Reach compliance
contains SVHC
Rohs compliance
irrelevant
Weight
305 g
Dimensions
190 x 60 x 34 mm
Tang
burnished
