Which connectors is this crimping tool designed for?

It is designed for micro plugs such as D-Sub, HD 20, and HDE connectors.

What wire capacity does this tool support?

It handles wire sizes from 0.03 mm² to 0.56 mm² (AWG 32 to 20).

How many crimping profiles are built into this model?

The tool features 3 precision crimping profiles.

What is the benefit of parallel crimping?

The jaws close in a parallel motion, preventing deformation of delicate micro contacts.

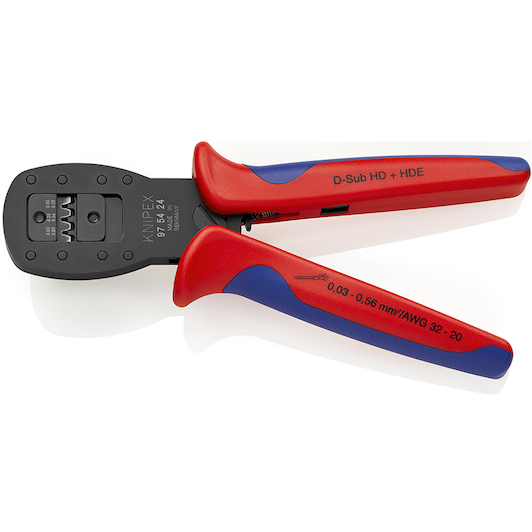

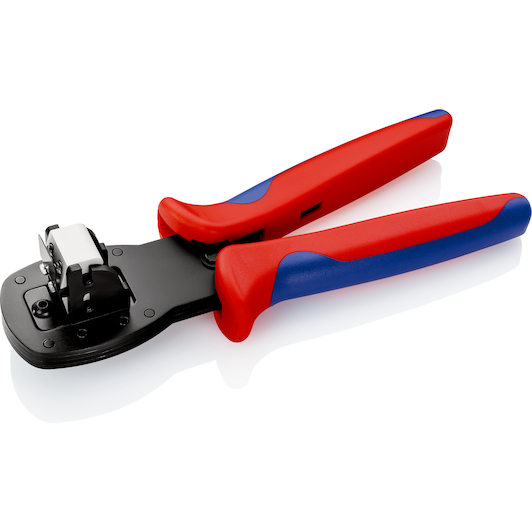

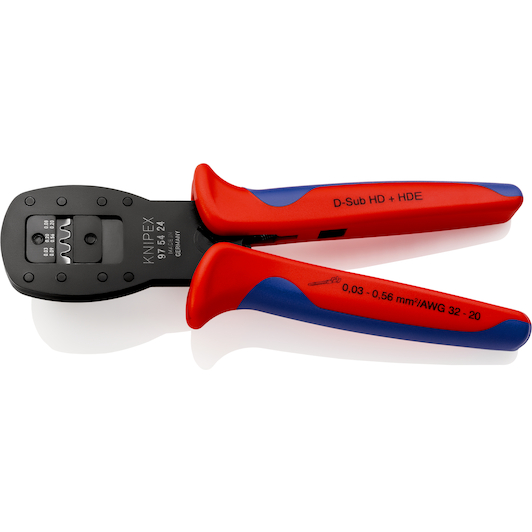

KNIPEX 97 54 24 crimping pliers for miniature plugs parallel crimping with multi-component handles browned 190 mm

Name: KNIPEX 97 54 24 crimping pliers for miniature plugs parallel crimping with multi-component handles browned 190 mm
Brand: KNIPEX
SKU: 41191603
Price: 334.8 EUR
Availability: PreOrder

Supplier number: KNIPEX 97 54 24 | EAN 4003773060215

Recommended Retail Price €544.20

334.80 tax incl.

€276.69 excl. VAT (incl. all environmental contributions)

On order: delivered from 19/10/2026

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Exact terminations with Knipex pliers

Practical benefits

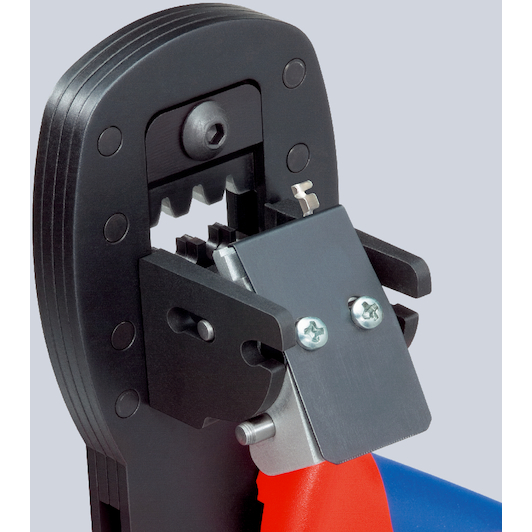

Precise parallel crimping action: Parallel closing dies press micro connectors evenly to deliver dependable electrical connections without pinching or misaligning delicate contacts.
Calibrated factory lock mechanism: The integrated ratchet with emergency release ensures you achieve a full, repeatable crimp cycle every time with consistent pressure.
High leverage low fatigue: An efficient toggle lever design paired with multi-component handles noticeably reduces the manual force you need for repetitive tasks.

In a nutshell

The right choise for

With the Knipex 97 54 24 crimping pliers, you achieve high-precision connections on delicate micro plugs such as D-Sub, hd 20, and hde connectors. The parallel closing jaws press contacts evenly, preventing deformation or misalignment of tiny micro pins. Covering a capacity from 0.03 mm² to 0.56 mm² (AWG 32 to 20) across 3 precision crimping profiles, this 190 mm tool handles demanding fine-wire applications with ease. The unlockable ratchet mechanism ensures consistent, factory-calibrated crimp pressure on every cycle. Thanks to toggle lever transmission and ergonomic multi-component handles, you work with reduced effort and complete control.

Product information FAQ

€334.80

tax incl.

Key features according to our expert

Min. wire cross-section: 0,03 mm²
Pliers type: Cable lug crimping pliers

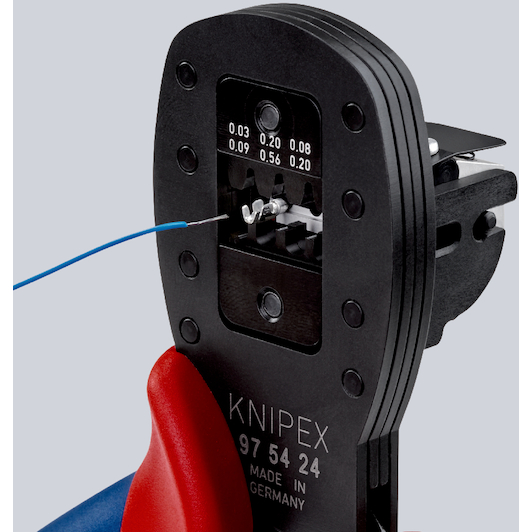

Number of crimping profiles: 3
Overall length: 190 mm
Max. wire section: 0,56 mm²

Product description

Parallel shrink jaws to meet the particularly high requirements of small connector types
Consistently high shrink quality thanks to precision jaws and forcing closure (unlockable)
Shrink pressure is set accurately at the factory (calibrated)
Increased power transmission thanks to knee lever design for effortless work
Crimping pliers for other miniature connectors, e.g. HD 22; Modu IV; Micro Timer; ... on request
Crimping insert is not exchangeable

Documents

⤓ Product sheet PDF

All Features

Min. wire cross-section: 0,03 mm²
Pliers type: Cable lug crimping pliers
Number of crimping profiles: 3
Overall length: 190 mm
Max. wire section: 0,56 mm²
Weight: 305 g
Handle: with multi-component handle
Number of crimp profiles: 3
Reach compliance: contains SVHC
Rohs compliance: irrelevant
Dimensions: 190 x 60 x 34 mm
Use: D-Sub
Tang: burnished

Brand KNIPEX
41191603
EAN 4003773060215
Supplier number KNIPEX 97 54 24

Frequently asked questions about this product

Answered by specialists

Which connectors is this crimping tool designed for?: It is designed for micro plugs such as D-Sub, HD 20, and HDE connectors.
What wire capacity does this tool support?: It handles wire sizes from 0.03 mm² to 0.56 mm² (AWG 32 to 20).
How many crimping profiles are built into this model?: The tool features 3 precision crimping profiles.
What is the benefit of parallel crimping?: The jaws close in a parallel motion, preventing deformation of delicate micro contacts.
Does this tool feature an integrated ratchet mechanism?: Yes, an unlockable ratchet mechanism ensures consistent, factory-calibrated crimp quality.
