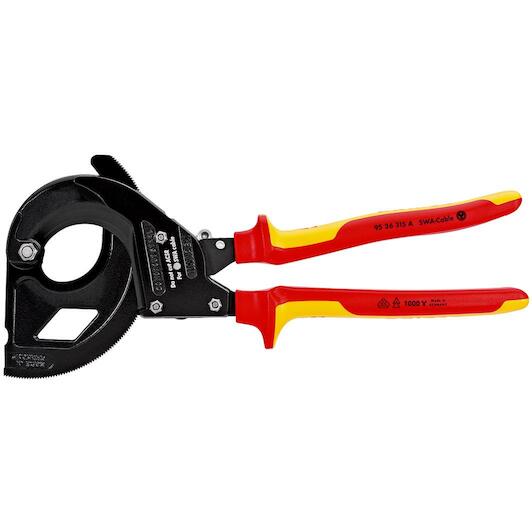

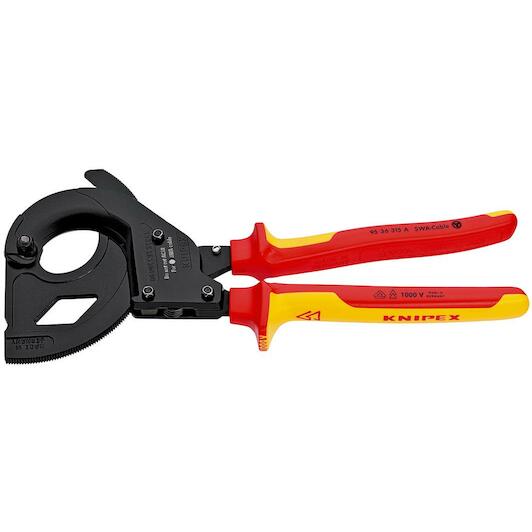

KNIPEX 95 36 315 A cable cutter (ratchet principle) for SWA cables, VDE insulated with multi-component handles black lacquered 315 mm

KNIPEX
Supplier number: KNIPEX 95 36 315 A | EAN 4003773078579
Recommended Retail Price €572.57
343.80 tax incl.
€284.13 excl. VAT (incl. all environmental contributions)
On order: delivered from 20/11/2026

  • Delivery by DHL
↓ Documents (1) ✆ Talk to a specialist

Efficient cutting with Knipex ratchet action

Practical benefits
  • Effortless cutting of armoured cables: The three-stage ratchet drive allows you to cut smoothly through steel wire armoured cables up to 45 mm diameter.
  • Certified VDE electrical protection: Fully insulated multi-component grips keep you safe while working on live electrical installations.
  • Compact one or two-handed use: Weighing just 800 g with a built-in support area, you maintain stable control even in tight working spaces.

In a nutshell

The right choise for

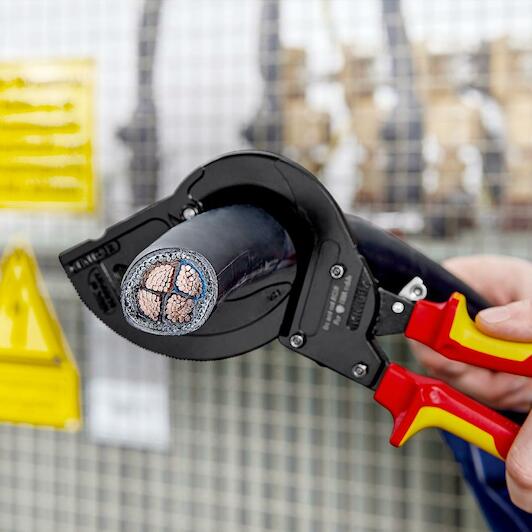

With the Knipex 95 36 315 a cable cutter, you can smoothly cut through steel wire armoured cables and copper cables up to 45 mm diameter or 380 mm². The innovative three-stage ratchet drive provides high leverage, enabling clean and neat cuts without crushing using one-handed or two-handed operation. Thanks to the VDE-insulated multi-component grips, you work safely on electrical installations up to 1000 V in compliance with iec 60900 and din en 60900. Featuring a compact 315 mm length, a weight of 800 g, and a built-in support area, you maintain stable handling even in confined cable trays and control cabinets.



Product information Accessories FAQ
€343.80
tax incl.

Product information

Key features according to our expert

  • Length: 315 mm
  • VDE approved: Yes

Product description

  • Robust. Handy. Stable.
  • Innovative toothed ring gear with three passes with high transfer for easy cutting in one- and two-hand operation
  • Easy handling thanks to low weight and compact design - also for use in confined spaces

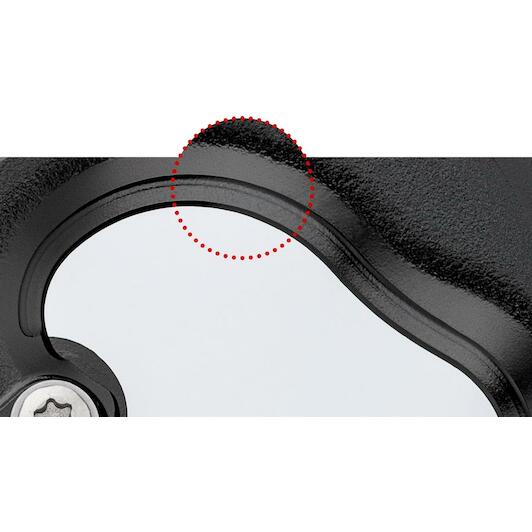

  • Clamp protection reduces the risk of trapped fingers
  • For cables with single and multi-wire conductors (conductor classes 1 & 2 according to DIN EN 60228, VDE 0295, IEC 60228)
  • Manual opening and emergency release possible in any position
  • Lockable for transport when closed - saves space and protects tools
  • Cuts steel-reinforced cables up to Ø 45 mm / 380 mm² (e. g. 4 x 95 mm²) can be used with one hand or with two hands
  • Inductively hardened and precisely milled cutting edges cut smoothly and cleanly without crushing
  • Fixed-leg handle with support surface for during cutting
  • Not suitable for ACSR cables and wire cables!

Documents

⤓ Product sheet PDF

All Features

Length
315 mm
Vde approved
Yes
Handle
insulated with multi-component handles, VDE-tested
Reach compliance
does not contain SVHC
Vde-approved
yes
Rohs compliance
irrelevant
Weight
800 g
Dimensions
315 x 140 x 30 mm
Mcm
750
Standard
IEC 60900 DIN EN 60900
Tang
black lacquered
  • Brand KNIPEX
  • EAN 4003773078579
  • Supplier number KNIPEX 95 36 315 A

Accessories

Frequently asked questions about this product

Answered by specialists
Which types of cables can this cable cutter cut?
The Knipex 95 36 315 A cuts steel wire armoured cables (SWA) and copper cables up to a diameter of 45 mm or 380 mm².
Is this cutter suitable for ACSR cables or wire ropes?
No, this cable cutter is not suitable for cutting ACSR cables, solid steel wire, or wire ropes.
Is this tool certified for live electrical work?
Yes, it is VDE-insulated and tested according to IEC 60900 and DIN EN 60900 for work up to 1000 V.
How does the ratchet mechanism work?
The three-stage ratchet drive provides high mechanical advantage for easy cutting using one-handed or two-handed operation.
What are the dimensions and weight of this tool?
The cable cutter has an overall length of 315 mm and weighs 800 g.
