What is the Knipex 77 11 115 diagonal cutter used for?

It is designed for ultra-fine cutting work in electronics and precision engineering.

What are the benefits of the box joint design?

The zero-backlash box joint prevents tilting and ensures a smooth, highly precise cutting action.

Does this tool catch cut wire ends?

Yes, the integrated lead catcher holds cut wire ends so they do not fly off uncontrollably.

Is this cutter insulated for live electrical work?

No, this cutter is not insulated for live electrical work and is not non-sparking.

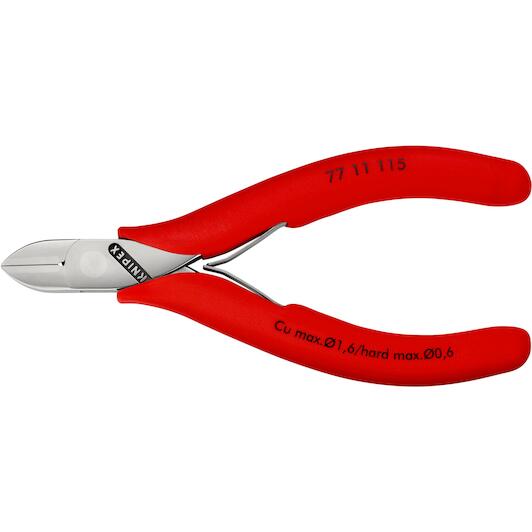

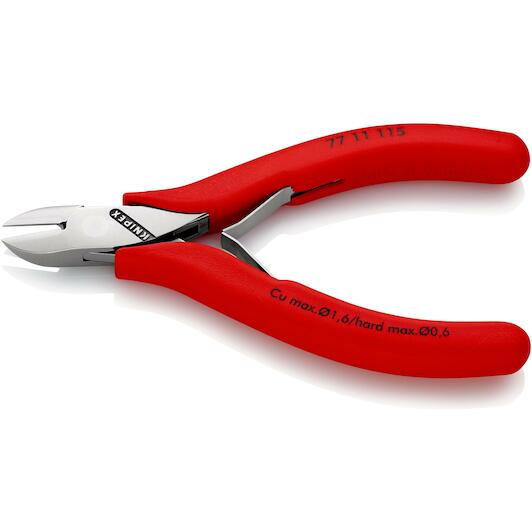

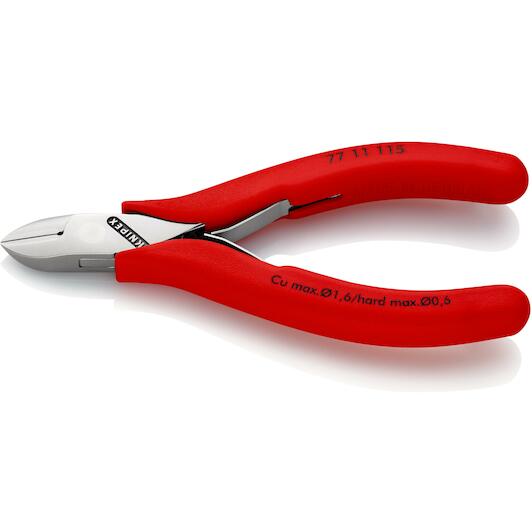

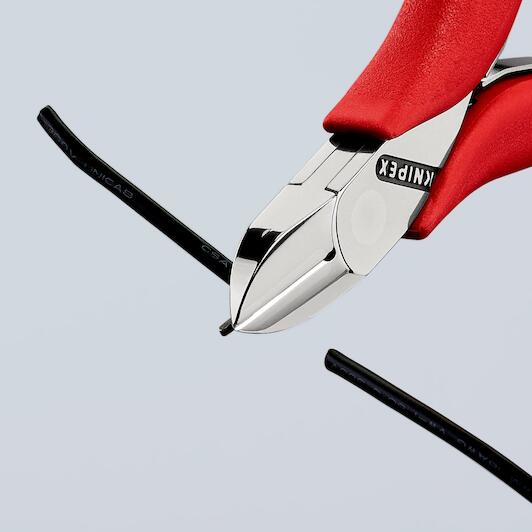

KNIPEX 77 11 115 electronics diagonal cutters with non-slip plastic coating 115 mm

Name: KNIPEX 77 11 115 electronics diagonal cutters with non-slip plastic coating 115 mm
Brand: KNIPEX
SKU: 41190144
Price: 40.8 EUR
Availability: InStock

Supplier number: KNIPEX 77 11 115 | EAN 4003773018629

40.80 tax incl.

€33.72 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 6 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Alternative to this product

BAHCO 2646 AK side cutter with pointed...

81.95 €155.07

€67.73 excl. VAT

Delivery time average 9 days.

Precision cutting with Knipex

Practical benefits

Play-free box joint: The sturdy box joint design provides smooth movement and continuous accuracy for repetitive, fine electronic tasks.
Low-friction double spring: The built-in double spring gently opens the jaws to reduce hand fatigue throughout continuous cutting jobs.
Non-slip plastic coating: With comfortable plastic-coated handles, you maintain a secure grip and complete control during detailed mechanical work.

In a nutshell

The right choise for

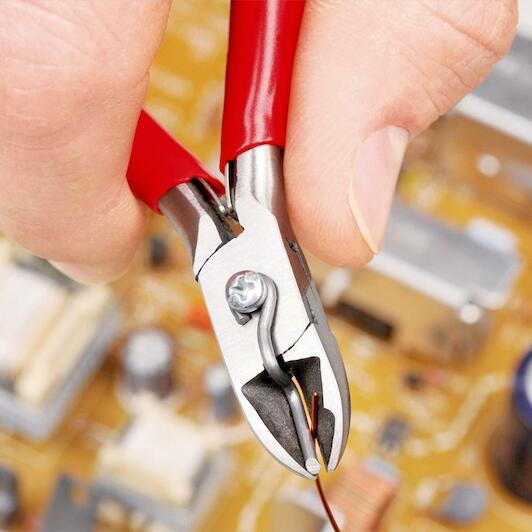

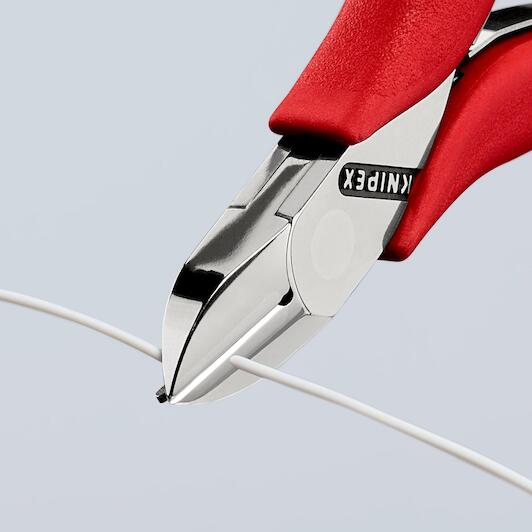

With the Knipex 77 11 115 electronics diagonal cutter, you carry out ultra-fine cutting tasks on printed circuit boards and delicate components with ease. The play-free box joint prevents tilting and ensures a smooth, consistently precise cutting action during repetitive work. Thanks to the low-friction double opening spring, the jaws open gently to reduce hand fatigue during long sessions. The integrated wire clamp holds cut wire ends securely, preventing loose fragments from falling into sensitive circuitry. Featuring non-slip plastic-coated handles and a compact 115 mm length, it cuts soft wire from 0.3 to 1.6 mm, medium-hard wire up to 1.2 mm, and hard wire up to 0.6 mm with total control.

Product information FAQ

€40.80

In stock - tax incl.

Key features according to our expert

Pliers type: Diognal cutting pliers
Non-sparking: No
Material (Handle): Plastic
Length: 115 mm

Product description

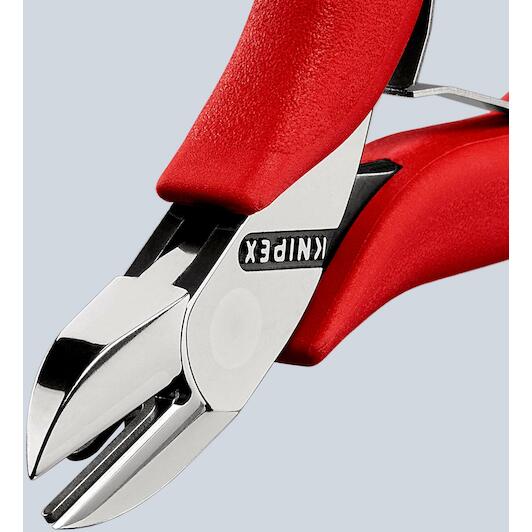

Robust, stronger load-bearing construction with backlash-free through-hinge
Slim sleeves, raised up to the head of the pliers, for a fine and comfortable grip between thumb and forefinger
Low force requirements due to very high leverage
Load-optimised design for a more direct working feel
Low-friction double spring for smooth and even opening
The mirror polish, together with a fine oil film, provides optimum protection against rust - no malfunctions in the gear circuit due to flying chrome shavings
Cutting edges additionally laser-hardened, cutting hardness approx. 62 HRC

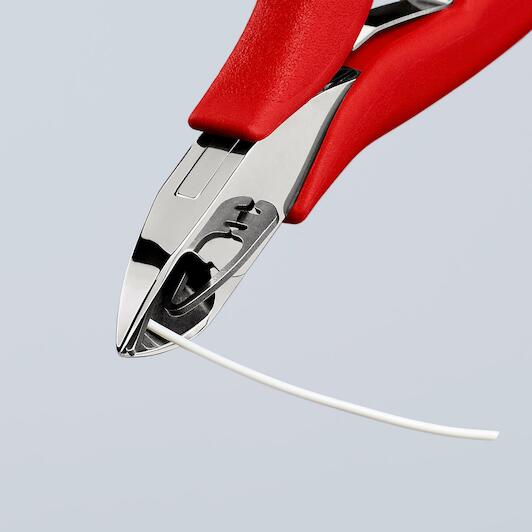

Round head with bevel and wire clamp; the wire ends cannot jump out uncontrollably

Documents

⤓ Product sheet PDF

All Features

Pliers type: Diognal cutting pliers
Non-sparking: No
Material (handle): Plastic
Length: 115 mm
Rohs compliance: irrelevant
Blade length mm (c): 0,0
Handle: with non-slip plastic covering
Cutting capacities semi-hard wire (diameter): Ø 1.2 mm
Reach compliance: does not contain SVHC

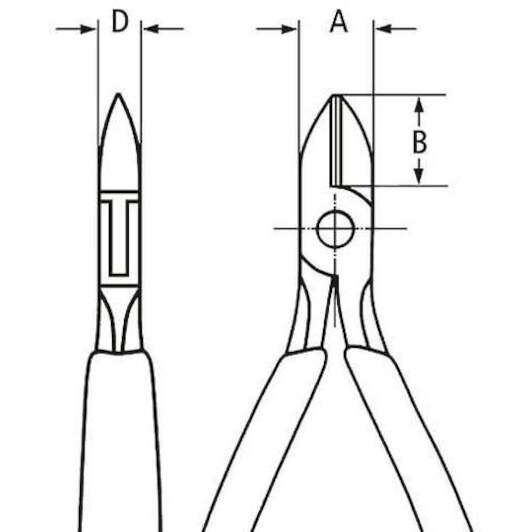

Jaw length (b): 14 mm
Cutting capacities piano wire (diameter): Ø 0,0
Weight: 55 g
Jaw thickness (hinge) (d): 7.5 mm
Cup: mirror-polished
Dimensions: 115 x 68 x 11 mm
Standard: DIN ISO 9654
Head width (a): 11 mm

Brand KNIPEX
41190144
EAN 4003773018629
Supplier number KNIPEX 77 11 115

Frequently asked questions about this product

Answered by specialists

What is the Knipex 77 11 115 diagonal cutter used for?: It is designed for ultra-fine cutting work in electronics and precision engineering.
What wire capacities can this cutter handle?: It cuts soft wire from 0.3 to 1.6 mm, medium-hard wire up to 1.2 mm, and hard wire up to 0.6 mm.
What are the benefits of the box joint design?: The zero-backlash box joint prevents tilting and ensures a smooth, highly precise cutting action.
Does this tool catch cut wire ends?: Yes, the integrated lead catcher holds cut wire ends so they do not fly off uncontrollably.
Is this cutter insulated for live electrical work?: No, this cutter is not insulated for live electrical work and is not non-sparking.
