What is this high leverage diagonal cutter suitable for?

You use it to cut soft, medium-hard, and hard wire, as well as piano wire up to Ø 1.5 mm.

What is the benefit of a high leverage design over standard diagonal cutters?

The matched cutting edge angle and transmission ratio require 20% less effort to cut.

Is this tool insulated for live electrical work?

No, the handles have a standard plastic coating and are not 1000V or VDE rated.

How hard are the cutting edges on this tool?

The induction-hardened precision cutting edges feature a hardness of 64 HRC for long service life.

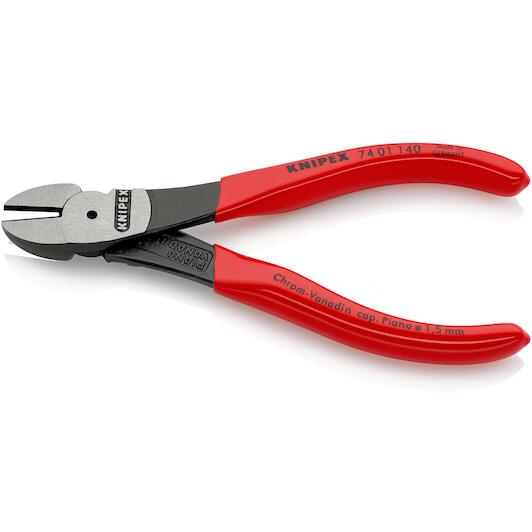

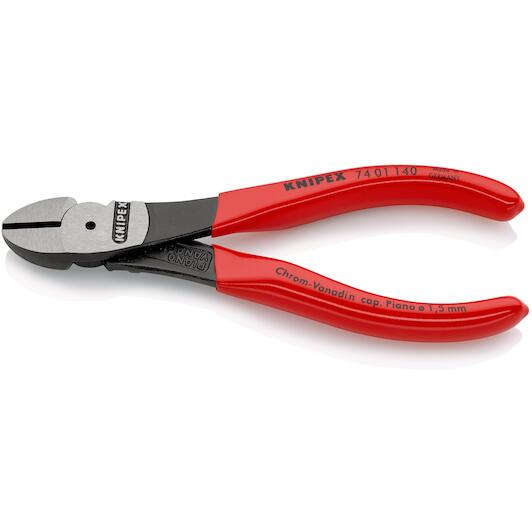

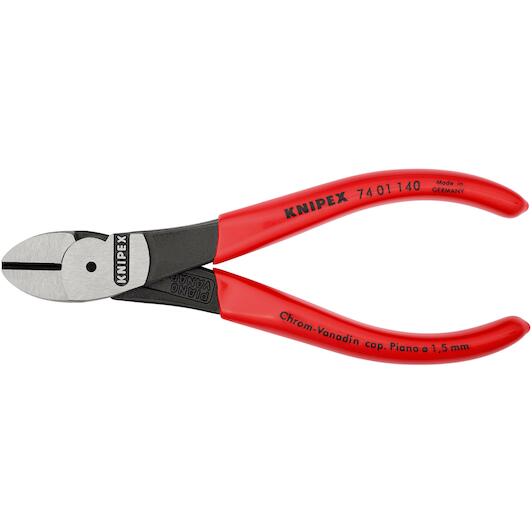

KNIPEX 74 01 140 power side cutters plastic-coated black atramentised 140 mm

Name: KNIPEX 74 01 140 power side cutters plastic-coated black atramentised 140 mm
Brand: KNIPEX
SKU: 41190145
Price: 22.8 EUR
Availability: InStock

Supplier number: KNIPEX 74 01 140 | EAN 4003773039747

22.80 tax incl.

€18.84 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 5 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Alternative to this product

BAHCO 2101D-140IP diagonal cutters with...

19.80 €37.78

€16.36 excl. VAT

Delivery time average 8 days.

Maximum cutting power in a compact design

Practical benefits

High leverage by Knipex: The optimized transmission ratio allows you to cut hard materials with 20% less physical effort than standard diagonal cutters.

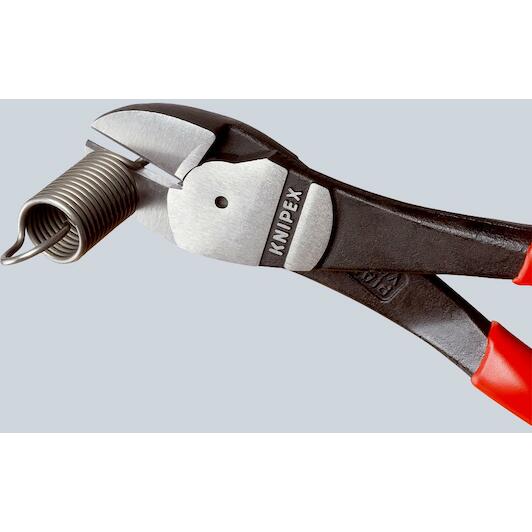

Induction hardened precision edges: Specially hardened cutting edges rated at 64 HRC cleanly slice through various wire types, including tough piano wire.
Forged heavy-duty joint: A forged-on axle combined with oil-hardened chrome vanadium steel ensures long-lasting stability during demanding continuous use.

In a nutshell

The right choise for

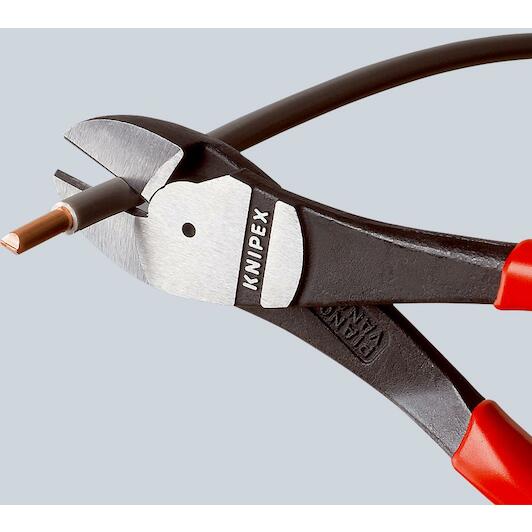

With the Knipex 74 01 140 high leverage diagonal cutter, you cut through tough materials with 20% less physical effort compared to standard diagonal cutters. Thanks to its compact 140 mm size, you work with complete control in confined areas during cabling, assembly, and installation tasks. The induction-hardened precision cutting edges with a hardness of 64 hrc cleanly slice through medium-hard wire up to ø 3.1 mm, hard wire up to ø 2.0 mm, and piano wire up to ø 1.5 mm. a forged-on joint axle and chrome vanadium steel ensure exceptional stability under heavy continuous use, while the plastic-coated handles provide a reliable grip.

Product information FAQ

€22.80

In stock - tax incl.

Key features according to our expert

Pliers type: Diognal cutting pliers
Non-sparking: No
Material (Handle): Plastic
Length: 140 mm

Product description

For very high and lasting load
Large cutting capacity at low effort thanks to optimum matching of cutting angle and gear ratio
Extra induction-hardened precision cutting edges (hardness is approx. 64 HRC), for all wire types, including piano wire

Documents

⤓ Product sheet PDF

All Features

Pliers type: Diognal cutting pliers
Non-sparking: No
Material (handle): Plastic
Length: 140 mm
Cutting value cu cable, multiple stranded: Ø 0,0
Handle: plastic-coated
Cutting capacities semi-hard wire (diameter): Ø 3.1 mm
Cutting capacities soft wire (diameter): Ø 2.0 mm
Reach compliance: does not contain SVHC
Cutting capacities piano wire (diameter): Ø 1.5 mm
Rohs compliance: irrelevant
Dimensions: 140 x 52 x 15 mm
Cup: polished
Weight: 131 g
Standard: DIN ISO 5749
Tang: black atramentized

Brand KNIPEX
41190145
EAN 4003773039747
Supplier number KNIPEX 74 01 140

Frequently asked questions about this product

Answered by specialists

What is this high leverage diagonal cutter suitable for?: You use it to cut soft, medium-hard, and hard wire, as well as piano wire up to Ø 1.5 mm.
What is the benefit of a high leverage design over standard diagonal cutters?: The matched cutting edge angle and transmission ratio require 20% less effort to cut.
What are the cutting capacities of this 140 mm model?: It cuts medium-hard wire up to Ø 3.1 mm, hard wire up to Ø 2.0 mm, and piano wire up to Ø 1.5 mm.
Is this tool insulated for live electrical work?: No, the handles have a standard plastic coating and are not 1000V or VDE rated.
How hard are the cutting edges on this tool?: The induction-hardened precision cutting edges feature a hardness of 64 HRC for long service life.
