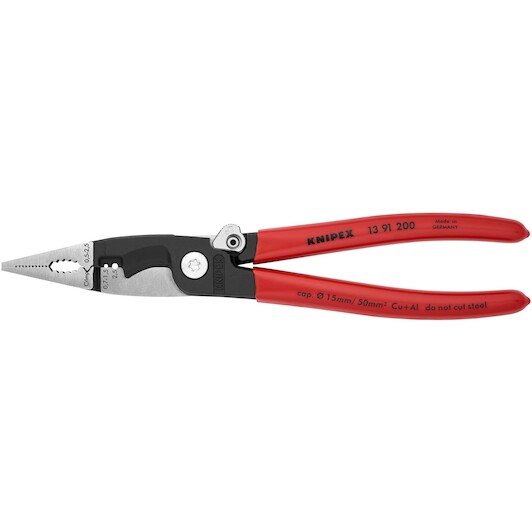

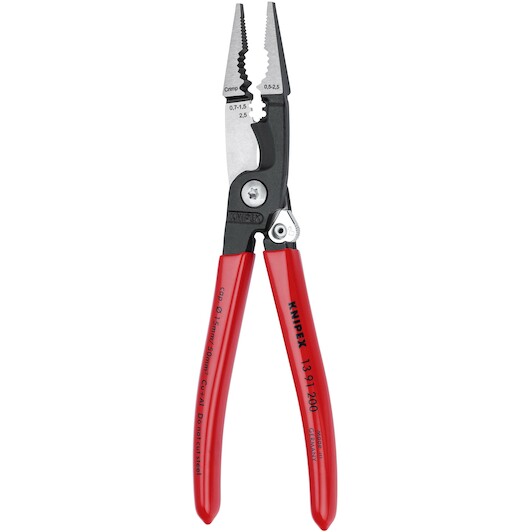

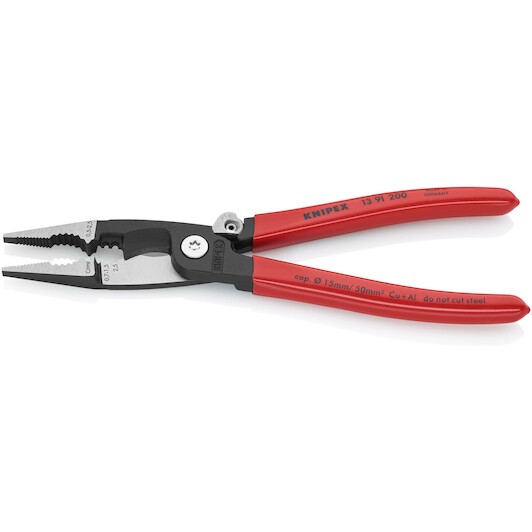

KNIPEX 13 91 200 Electrical installation pliers plastic-coated black atramentised 200 mm

Name: KNIPEX 13 91 200 Electrical installation pliers plastic-coated black atramentised 200 mm
Brand: KNIPEX
SKU: 03064778
Price: 46.8 EUR
Availability: InStock

Supplier number: KNIPEX 13 91 200 | EAN 4003773075257

Recommended Retail Price €73.27

46.80 tax incl.

€38.68 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 1 products in stock.

Delivery by DHL

↓ Documents (1) ✆ Talk to a specialist

Complete multifunctional pliers for electrical installation

Practical benefits

Six functions in one: You grip, bend, debur, cut cable, strip conductors, and crimp wire ferrules using a single versatile tool.
Clean and effortless cutting: Induction-hardened precision cutting edges cleanly shear copper and aluminium cables up to 15 mm in diameter.
Reliable Knipex gripping control: Smooth jaw tips handle single conductors without damage, while serrated surfaces provide a secure hold on flat and round materials.

In a nutshell

The right choise for

With the Knipex 13 91 200 electrical installation pliers, you streamline every installation job in control cabinets and junction boxes. Combining six vital functions in a single 200 mm tool, it eliminates the need to constantly switch between separate pliers. Smooth jaw tips allow you to grip and bend individual conductors without surface damage, while the sharp outer edge deburs pass-through holes cleanly. Its induction-hardened cable shears slice through copper and aluminium cables up to 15 mm in diameter. You can also strip wires from 0.75 to 2.5 mm² and crimp end sleeves from 0.5 to 2.5 mm² with total accuracy.

Product information FAQ

€46.80

In stock - tax incl.

Key features according to our expert

Length: 200 mm
Surface treatment: Black blackened
VDE approved: No

Product description

6 functions in one pair of pliers
For gripping flat and round materials, bending, deburring, cutting cables, stripping and crimping end sleeves
Smooth gripping surfaces at the tip for damage-free gripping of wires; profiled gripping surfaces and burner hole for gripping flat and round materials
Marked outer edge along the gripping surfaces for machining flush-mounted boxes and deburring through-holes
Stripping cut-outs for cables 0.75 to 1.5 mm² and 2.5 mm²
Crimp position for conductor end sleeves 0.5 - 2.5 mm²
Cable cutter with precision cutting edges (inductively hardened) for Cu and Al cables up to 5 x 2.5 mm² / Ø 15 mm
Slim design for good accessibility
Precise, smooth-running screwed joint
On models with opening spring integrated in the hinge, the activated locking latch keeps the blades closed while other functions are retained
The intelligent locking mechanism allows you to "grab" without opening the pliers. The blade remains closed and protected.

Documents

⤓ Product sheet PDF

All Features

Length: 200 mm
Surface treatment: Black blackened
Vde approved: No
Cup: polished
Handle: plastic-coated
Reach compliance: does not contain SVHC
Rohs compliance: irrelevant
Awg: 1 / 0
Weight: 236 g
Dimensions: 200 x 85 x 20 mm
Tang: black atramentized

Brand KNIPEX
03064778
EAN 4003773075257
Supplier number KNIPEX 13 91 200

Frequently asked questions about this product

Answered by specialists

Which functions are combined in the Knipex 13 91 200 installation pliers?: These pliers combine six functions: gripping, bending, deburring, cable cutting, stripping, and crimping wire ferrules.
What are the stripping and crimping capacities?: You can strip conductors of 0.75 to 1.5 mm² and 2.5 mm², and crimp wire ferrules from 0.5 to 2.5 mm².
What is the maximum cutting capacity of the cable shears?: The precision cutting edges cut copper and aluminium cables up to 5 x 2.5 mm² or a diameter of 15 mm (50 mm²).
Is the Knipex 13 91 200 VDE-certified?: No, this model has plastic-coated handles and is not VDE-tested.
What is the distinct outer jaw edge used for?: The clear-cut edge is designed for working on flush-mounted junction boxes and deburring feed-through holes.
