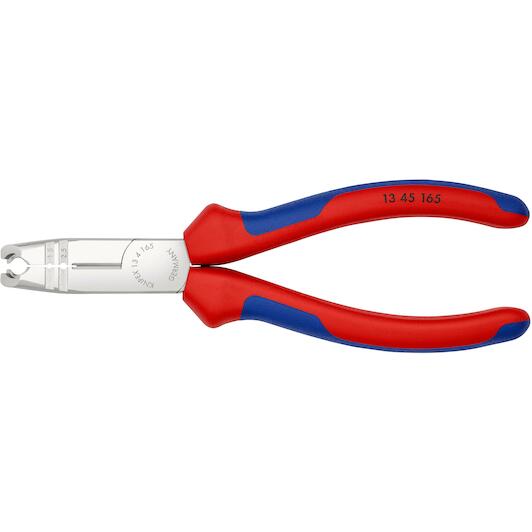

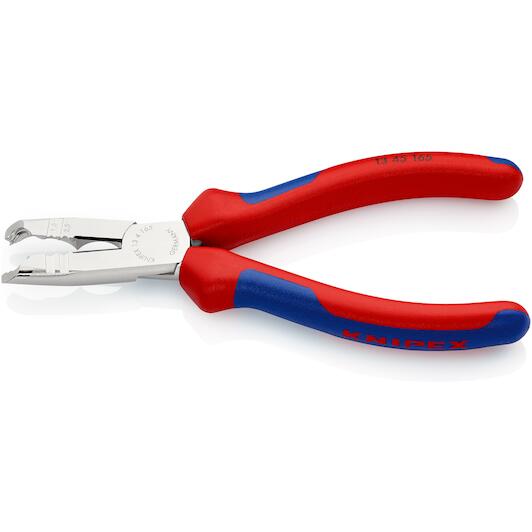

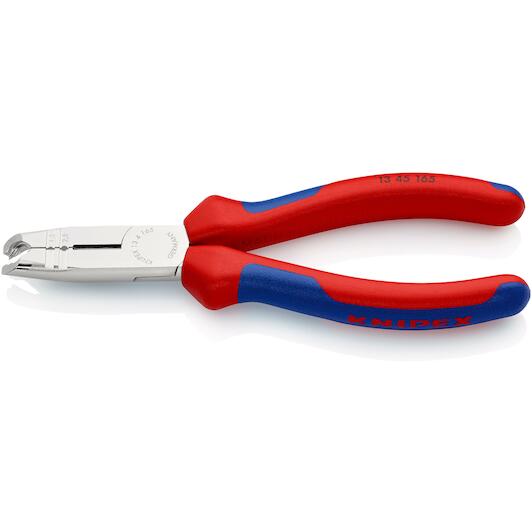

KNIPEX 13 45 165 dismantling bar with multi-component handles chrome-plated 165 mm

Supplier number: KNIPEX 13 45 165 | EAN 4003773079682
This product has been discontinued.



Product information

Key features according to our expert

  • For min. cable cross-section: 0,75 mm²
  • With crimping function: No
  • For max. cable cross-section: 2,5 mm²
  • VDE approved: No
  • Adjustment type: Fixed settings
  • Length: 165 mm
  • With cutting function: Yes
  • With automatic stripping function: No
  • Max. cable diameter: 13 mm
  • Min. cable diameter: 8 mm

Product description

  • KNIPEX 13 45 165 Stripping Pliers with multi-component grips chrome-plated 165 mm
  • Multifunctional - cutting and stripping with one pair of pliers
  • For time-saving stripping of all round sheathed and damp-proof installation cables (e.g. NYM cable)

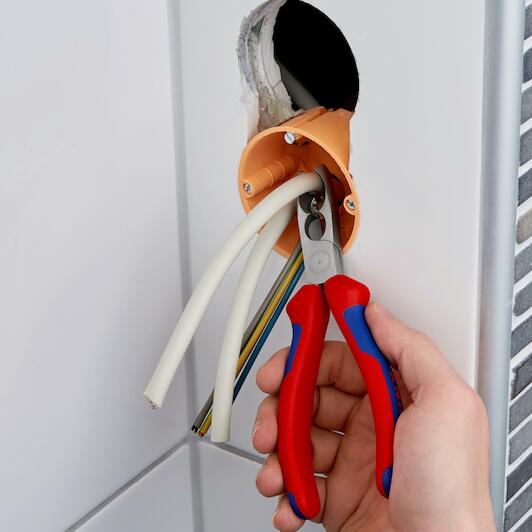

  • Simplified access especially into deep mounted junction boxes thanks to slim head design and optimally angled cable sheath cutter
  • Strip cables easily and without damage thanks to circular cutting edge with depth limiter
  • 30 % lighter than comparable pliers
  • All cutters additionally induction-hardened to approx. 61 HRC for high wear resistance
  • Suitable for universal use: precision wire stripping holes for conductors from 1.5 and 2.5 mm²
  • With side cutters for cutting and trimming conductors, wires, small screws and nails

All Features

For min. cable cross-section
0,75 mm²
With crimping function
No
For max. cable cross-section
2,5 mm²
Vde approved
No
Adjustment type
Fixed settings
Length
165 mm
With cutting function
Yes
With automatic stripping function
No
Max. cable diameter
13 mm
Min. cable diameter
8 mm
Rohs compliance
irrelevant
Handle
with multi-component handle
Cutting capacities semi-hard wire (diameter)
Ø 3.2 mm
Cutting capacities soft wire (diameter)
Ø 2.2 mm
Stripping values (diameter)
8 - 13 mm
Stripping capacities square millimetres
0.75 - 1.5 mm² / 2.5 mm²
Reach compliance
does not contain SVHC
Cup
chromed
Weight
176 g
Dimensions
165 x 57 x 20 mm
Tang
chromed
  • Brand KNIPEX
  • EAN 4003773079682
  • Supplier number KNIPEX 13 45 165
