INTERNATIONAL TOOLS

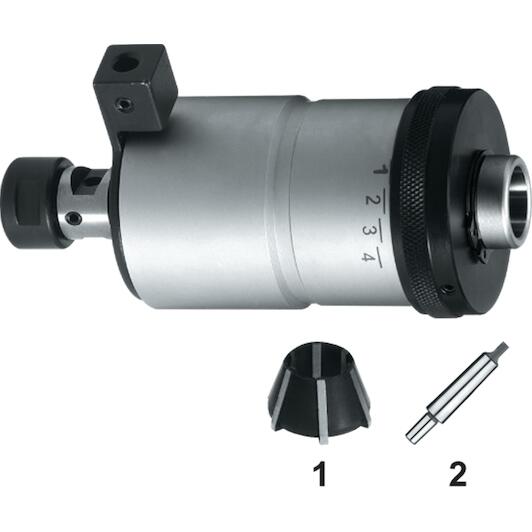

INTERNATIONAL TOOLS 817000120 ECO PRO tapping device with reversing device' with pressure and tension compensation' with adjustable slipping clutch M5-M12' B16

633.46 tax incl.
€523.52 excl. VAT (incl. all environmental contributions)
On order: delivered from 31/08/2026
each

  • Delivery by DHL

Product Description:

  • International Tools ECO PRO Tapping Unit with reversing arrangement with push and pull compensation with adjustable torque coupling
  • With reversing arrangement and with adjustable torque coupling, for usage with Collets, with internal B-shank
Key features according to our expert
  • Min. diameter: 16
  • Max. diameter: 5 mm
Specifications / All features
  • Brand: INTERNATIONAL TOOLS
  • EAN: 8716563313526
  • Supplier number: INTERNATIONAL TOOLS 817000120
Min. diameter
16
Max. diameter
5 mm

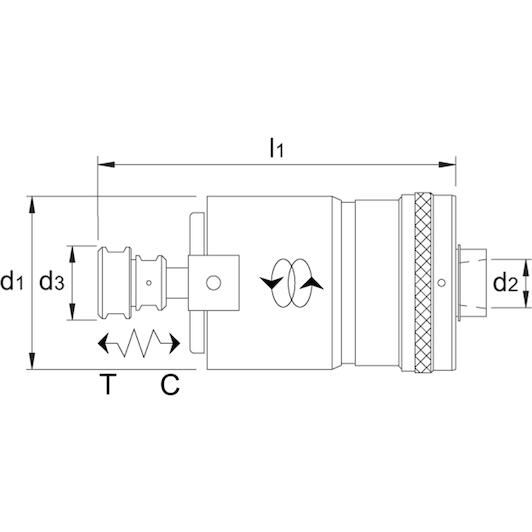

Diameter ø (d1)
74 mm
Ratio (x:y)
1:2,2
Diameter ø (d3)
28 mm
Length (l2)
156 mm
Shank (d2)
B16
Max. rpm (rpm)
1000 Rev/min
Release
4 mm
Quality
ECO PRO
Shank type
B
Clamping range (ø)
M5-M12 mm
