Which batteries are compatible with the Hikoki DS18DCW4Z?

The tool operates on all Hikoki 18V slide-on lithium-ion batteries and Hikoki Multi Volt batteries.

What is the function of the RFC system?

Reactive Force Control (RFC) uses a gyro sensor to stop the motor immediately if the bit jams, preventing kickback and protecting your wrists.

Are batteries and a charger included with this model?

No, this is a bare tool supplied in a cardboard box. It comes with a side handle, belt hook, and screwdriver bit, without batteries or a charger.

What is the drilling capacity and maximum torque?

It delivers a maximum torque of 140 Nm and drills up to 102 mm in wood and 16 mm in steel. The all-metal keyless chuck accepts bits up to 13 mm.

How many torque settings does this drill driver have?

The tool features 22 torque settings for precise screwdriving plus a dedicated drill setting for full power.

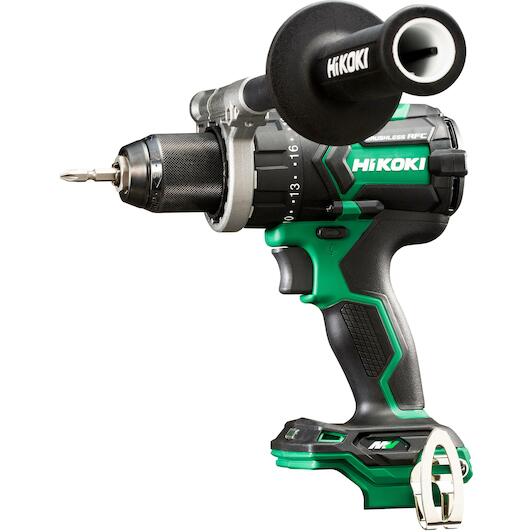

HIKOKI DS18DCW4Z 18V cordless drill/driver 140 Nm (without battery and charger)

Name: HIKOKI DS18DCW4Z 18V cordless drill/driver 140 Nm (without battery and charger)
Brand: HIKOKI
SKU: 03274793
Price: 207.88 EUR
Availability: InStock

Supplier number: HIKOKI DS18DCW4Z | EAN 4966376404926

Variant

Recommended Retail Price €271.49

207.88 tax incl.

€171.80 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 4 products in stock.

Delivery by DHL
Up to 5 years warranty on HiKOKI after successful registration!

✆ Talk to a specialist

Heavy-duty drilling performance with Hikoki

Practical benefits

High torque for demanding tasks: Delivering a maximum torque of 140 Nm, you easily drill through tough wood and steel applications.
Enhanced safety against kickback: The Reactive Force Control feature stops the motor during sudden jamming to protect your wrists from twisting.
Precise torque setting control: Choose from 22 clutch settings plus drill mode to match the exact requirements of your fastening work.

In a nutshell

The right choise for

With the Hikoki DS18DCW4Z, you handle heavy-duty drilling and screwdriving tasks with total confidence. Its brushless motor delivers a strong 140 Nm of torque, enabling drilling capacities of up to 102 mm in wood and 16 mm in steel. Built-in Reactive Force Control (RFC) technology instantly cuts motor power if the bit binds, protecting your wrists from sudden kickback. With 22 clutch settings plus a dedicated drill mode, you achieve precise depth control, while the durable 13 mm metal keyless chuck ensures optimal bit retention. Supplied in a cardboard box with a side handle, belt hook, and bit as a bare tool for your 18V or Multi Volt battery platform.

Product information FAQ

€207.88

In stock - tax incl.

Key features according to our expert

Battery voltage: 18 V
Number of settings (torque): 22 (+drill mode)
Number of batteries included: 0
Chuck material: Metal
UN number: Not applicable
Weight: 2,6 kg
Supplied in: Cardboard box
Type of system case: Not applicable
Max. tightening torque: 140 Nm
Max. drilling diameter (steel): 16 mm
Max. drilling diameter (wood): 102 mm
Max. clamping capacity: 13 mm
Product Range: HiKOKI 18V

Contents of the delivery

Extra handle
Hook
Screwdriver bit
Cardboard box

Product description

The most powerful in the industry and a top-class drilling speed for the toughest applications
Robust aluminium motor housing
An improved airflow design and heat sink keep the electronics cool to ensure continuous operation, even under heavy loads
Reactive Force Control (RFC) technology and a gyro sensor detect when the tool bit is suddenly overloaded, reducing the rotation of the main unit to prevent potential injury
Compact housing for working in tight and hard-to-reach spaces
Constant speed control provides extra power, enabling the motor to maintain its speed under load
Metal drill chuck with carbide inserts for maximum clamping force to prevent the bits from slipping
The rotatable auxiliary handle with 11 positions ensures ease of use and simple operation
Ergonomic soft-grip handle for optimum control and prolonged comfortable use

All Features

Battery voltage: 18 V
Number of settings (torque): 22 (+drill mode)
Number of batteries included: 0
Chuck material: Metal
Un number: Not applicable
Weight: 2,6 kg
Supplied in: Cardboard box
Type of system case: Not applicable
Max. tightening torque: 140 Nm
Max. drilling diameter (steel): 16 mm
Max. drilling diameter (wood): 102 mm
Max. clamping capacity: 13 mm
Stone capacity (mm): 20
Capacity steel (mm): 16
Speed at no load high (min.): 0-2.000
Wood capacity (mm): 102
Motor without carbon brushes: 1
Weight (kg): 2,6
Machine screw capacity (mm): 6
Drill head capacity (mm): 13
Product range: HiKOKI 18V
Max. tightening torque (nm): 140
Max. torque soft (nm): 70
Capacity wood screws (mm): 12x100
Idle speed low (min.): 0-500
Battery voltage (v): 18
Dimensions l x w x h (mm): 190x70x267

Brand HIKOKI
03274793
EAN 4966376404926
Supplier number HIKOKI DS18DCW4Z
Warranty Up to 5 years warranty on HiKOKI after successful registration!

Frequently asked questions about this product

Answered by specialists

Which batteries are compatible with the Hikoki DS18DCW4Z?: The tool operates on all Hikoki 18V slide-on lithium-ion batteries and Hikoki Multi Volt batteries.
What is the function of the RFC system?: Reactive Force Control (RFC) uses a gyro sensor to stop the motor immediately if the bit jams, preventing kickback and protecting your wrists.
Are batteries and a charger included with this model?: No, this is a bare tool supplied in a cardboard box. It comes with a side handle, belt hook, and screwdriver bit, without batteries or a charger.
What is the drilling capacity and maximum torque?: It delivers a maximum torque of 140 Nm and drills up to 102 mm in wood and 16 mm in steel. The all-metal keyless chuck accepts bits up to 13 mm.
How many torque settings does this drill driver have?: The tool features 22 torque settings for precise screwdriving plus a dedicated drill setting for full power.
