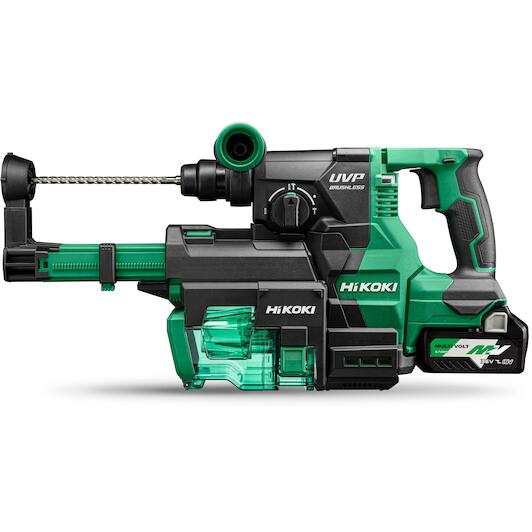

HIKOKI DH3628DAWEZ 36V SDS-Plus cordless hammer drill 3.2 J in HSC III case (2x 2.5Ah battery + charger)

Variant

HIKOKI DH3628DAW4Z 36V SDS-Plus cordless hammer drill 3.2 J (without battery and charger) HIKOKI DH3628DAW4Z 36V SDS-Plus cordless hammer drill 3.2 J (without battery and charger) HIKOKI DH3628DAW2Z 36V SDS-Plus cordless combination hammer in HSC IV (excluding battery and charger) HIKOKI DH3628DAW2Z 36V SDS-Plus cordless combination hammer in HSC IV (excluding battery and charger) HIKOKI DH3628DAW3Z 36V cordless SDS-Plus combination hammer in HSC IV (excluding battery and charger) HIKOKI DH3628DAW3Z 36V cordless SDS-Plus combination hammer in HSC IV (excluding battery and charger) HIKOKI DH3628DAWRZ 36V SDS-Plus cordless combi hammer in HSC IV (2 x 2.5Ah MultiVolt batteries + charger) HIKOKI DH3628DAWRZ 36V SDS-Plus cordless combi hammer in HSC IV (2 x 2.5Ah MultiVolt batteries + charger) HIKOKI DH3628DAWVZ 36V SDS-Plus cordless combination hammer in an HSC IV case (2 x 4.0Ah MultiVolt batteries + charger) HIKOKI DH3628DAWVZ 36V SDS-Plus cordless combination hammer in an HSC IV case (2 x 4.0Ah MultiVolt batteries + charger) HIKOKI DH3628DAWEZ 36V SDS-Plus cordless hammer drill 3.2 J in HSC III case (2x 2.5Ah battery + charger) HIKOKI DH3628DAWEZ 36V SDS-Plus cordless hammer drill 3.2 J in HSC III case (2x 2.5Ah battery + charger)
Recommended Retail Price €949.33
741.56 tax incl.
€612.86 excl. VAT (incl. all environmental contributions)
On order: delivered from 31/08/2026
each

Contents of the delivery

  • Additional handle
  • Depth gauge
  • Battery cover
  • Dust extraction system
  • Stackable system box 4

Product description

  • Three modes: hammer drill, drill only or hammer only, with selectable chisel position for optimum
  • Ergonomic soft-grip handle for optimum control and user comfort
Key features according to our expert
  • Battery voltage: 36 V
  • Max. impact rate: 4300 /min.
  • Number of batteries included: 2
  • UN number: UN3481
  • Type of system case: HSC IV
  • Supplied in: System case
  • Anti-vibration system: Yes
  • Vibration level (drilling in concrete): 12,1 m/s²
  • Vibration level (chiselling in concrete): 9,9 m/s²
  • Weight: 4,2 kg
  • Min. impact rate: 0 /min.
  • Capacity (battery): 2,5 Ah
  • Max. drilling diameter (steel): 13 mm
  • Max. drilling diameter (wood): 32 mm
  • Max. drilling diameter (concrete): 28 mm
  • Impact energy: 3,2 J
  • With keyless chuck: No
  • Tool holder type: SDS-plus
  • With dust extraction system: Yes
  • Product Range: HiKOKI 36V
Specifications / All features
Battery voltage
36 V
Max. impact rate
4300 /min.
Number of batteries included
2
Un number
UN3481
Type of system case
HSC IV
Supplied in
System case
Anti-vibration system
Yes
Vibration level (drilling in concrete)
12,1 m/s²
Vibration level (chiselling in concrete)
9,9 m/s²
Weight
4,2 kg
Min. impact rate
0 /min.
Capacity (battery)
2,5 Ah
Max. drilling diameter (steel)
13 mm
Max. drilling diameter (wood)
32 mm
Max. drilling diameter (concrete)
28 mm
Impact energy
3,2 J
With keyless chuck
No
Tool holder type
SDS-plus
With dust extraction system
Yes
Capacity steel (mm)
13
Charger (type)
UC18YSL3
Wood capacity (mm)
32
Motor without carbon brushes
1
No-load speed (min.)
0-950
Weight (kg)
5.25
Battery capacity (ah)
2.5
Uvp (user vibration protection)
1
Product range
HiKOKI 36V
Capcacity concrete (mm)
28
Battery charging time (min)
32 min.
Impact energy (joule)
3.2
Height (mm)
247
Battery composition
Li-ion
Triaxial vibration value (ah) m/s²
12.1
Battery voltage (v)
36
Number of strokes loaded (min.)
0-4.300
Idle speed low (min.)
0-700
Battery (type)
BSL36A18
