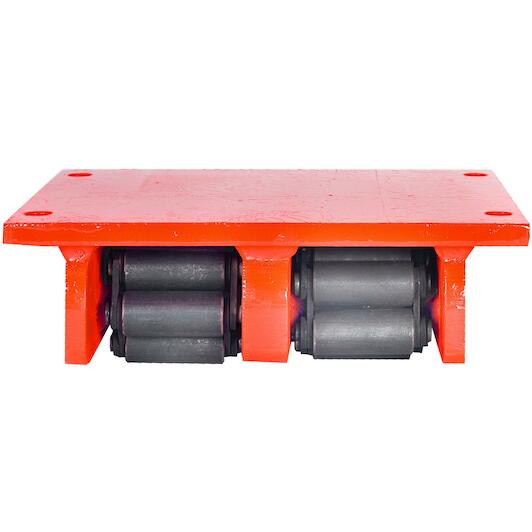

HI-FORCE RSD100 heavy-duty double conveyor roller with groove guide 100 tonnes

HI-FORCE
Supplier number: HI-FORCE RSD100 | EAN 5056388015575
6,556.99 tax incl.
€5,419.00 excl. VAT (incl. all environmental contributions)
On order: delivered from 13/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€6,556.99
tax incl.

Product information

Key features according to our expert

  • Max. weight: 100 t

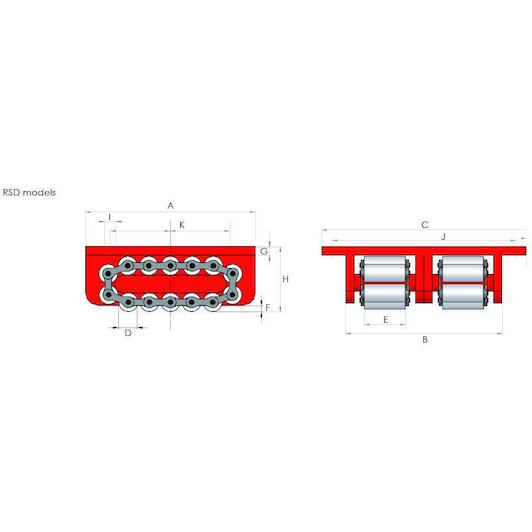

  • Technical drawing (F): 10 mm
  • Technical drawing (K): 120 mm
  • Technical drawing (J): 325 mm
  • Technical drawing (I): 18 mm
  • H: 115 mm
  • Number of rollers: 2 x 17
  • Technical drawing (G): 18 mm
  • Technical drawing (E): 68 mm
  • Technical drawing (D): 30 mm
  • Technical drawing (C): 360 mm
  • Technical drawing (B): 280 mm
  • Technical drawing (A): 320 mm
  • Weight: 57,5 kg
  • Number of rollers in contact: 2 x 6

Product description

  • Low-profile dual roller design for increased stability and safety
  • Double groove guide in the central plate significantly reduces wear and tear
  • Mounting holes provided as standard
  • Maximum recommended travel speed 5 metres per minute
  • Also suitable as a fixed-mounted transport roller under the moving load
  • Equipped with flat top plate
  • Capacity: 100 tonnes
  • Number of rollers in contact with ground surface is 2 x 6
  • Total number of rollers on the skate is 2 x 17
  • Geiwht: 57.5 kg
  • Overall length: 320 mm
  • Width of support surface: 360 mm
  • Height: 115 mm

All Features

Max. weight
100 t
Technical drawing (f)
10 mm
Technical drawing (k)
120 mm
Technical drawing (j)
325 mm
Technical drawing (i)
18 mm
H
115 mm
Number of rollers
2 x 17
Technical drawing (g)
18 mm
Technical drawing (e)
68 mm
Technical drawing (d)
30 mm
Technical drawing (c)
360 mm
Technical drawing (b)
280 mm
Technical drawing (a)
320 mm
Weight
57,5 kg
Number of rollers in contact
2 x 6
  • Brand HI-FORCE
  • EAN 5056388015575
  • Supplier number HI-FORCE RSD100
