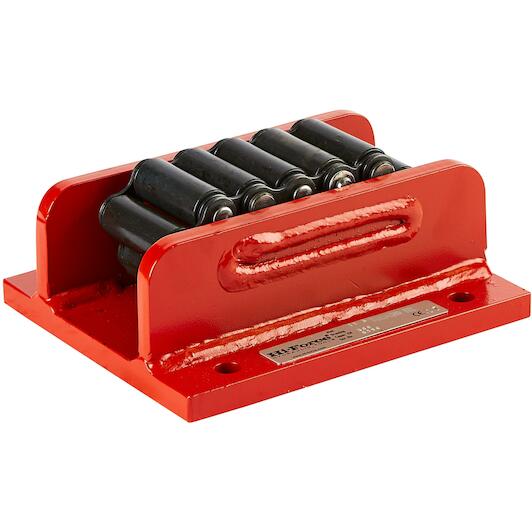

HI-FORCE RSA20 heavy-duty transport roller 20 tonnes

Supplier number: HI-FORCE RSA20 | EAN 5056388015520
1,512.50 tax incl.
€1,250.00 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

  • Delivery by DHL


€1,512.50
tax incl.

Product information

Key features according to our expert

  • Max. weight: 20 t

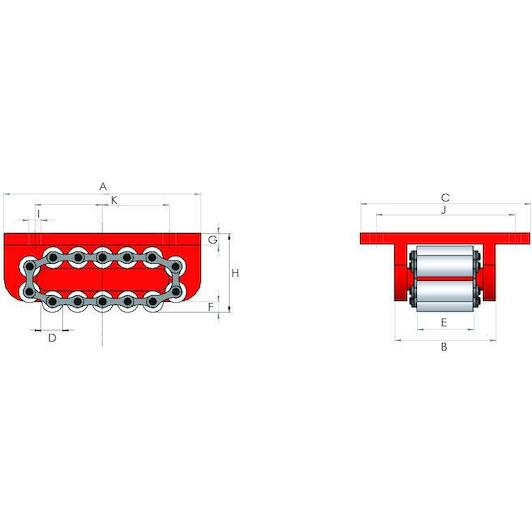

  • Technical drawing (F): 10 mm
  • Technical drawing (K): 75 mm
  • Technical drawing (J): 155 mm
  • Technical drawing (I): 14 mm
  • H: 87 mm
  • Number of rollers: 13
  • Technical drawing (G): 14 mm
  • Technical drawing (E): 60 mm
  • Technical drawing (D): 24 mm
  • Technical drawing (C): 190 mm
  • Technical drawing (B): 113 mm
  • Technical drawing (A): 220 mm
  • Weight: 11,7 kg
  • Number of rollers in contact: 4

Product description

  • Low design for increased stability and safety
  • Equipped with flat top plate
  • Drilled bolt holes (4 pcs) on all models with a capacity of up to 50 tonnes
  • Maximum recommended movement speed of 5 metres per minute
  • Also suitable as fixed-mounted transport roller under moving load
  • Capacity: 20 tonnes
  • Number of rollers in contact with ground surface is 4
  • Total number of rollers on the skate is 13
  • Geiwht: 11.7kg
  • Overall length: 220 mm
  • Width of support surface: 190 mm
  • Height: 87 mm

All Features

Max. weight
20 t
Technical drawing (f)
10 mm
Technical drawing (k)
75 mm
Technical drawing (j)
155 mm
Technical drawing (i)
14 mm
H
87 mm
Number of rollers
13
Technical drawing (g)
14 mm
Technical drawing (e)
60 mm
Technical drawing (d)
24 mm
Technical drawing (c)
190 mm
Technical drawing (b)
113 mm
Technical drawing (a)
220 mm
Weight
11,7 kg
Number of rollers in contact
4
  • Brand HI-FORCE
  • EAN 5056388015520
  • Supplier number HI-FORCE RSA20
