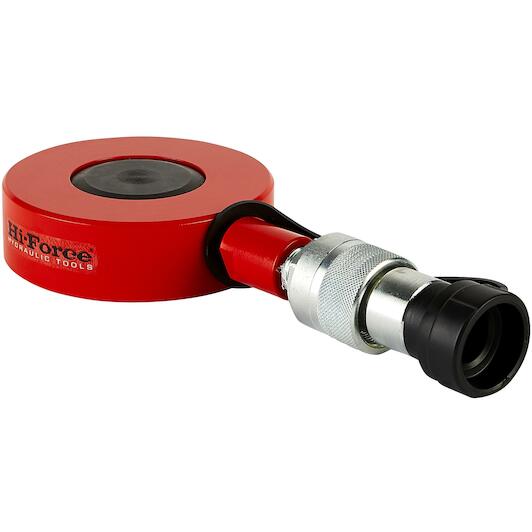

Product description
- Single acting, load return
- Compact design with very low build height, for use in confined spaces
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved performance at high pressure
- Equipped with an adapter for the required coupling diameter
- The footplate of all HVL cylinders must always be fully supported during operation.
- Capacity: 20 tonnes
- Stroke length: 6 mm
- Cylinder size: 29 cm²
- Oil capacity: 0.017 l
- Installation height: 32 mm
- Cylinder diameter: 104 mm
- Plunger diameter: 52 mm
- Weight: 2.7 kg
- Max. operating pressure: 700 bar
