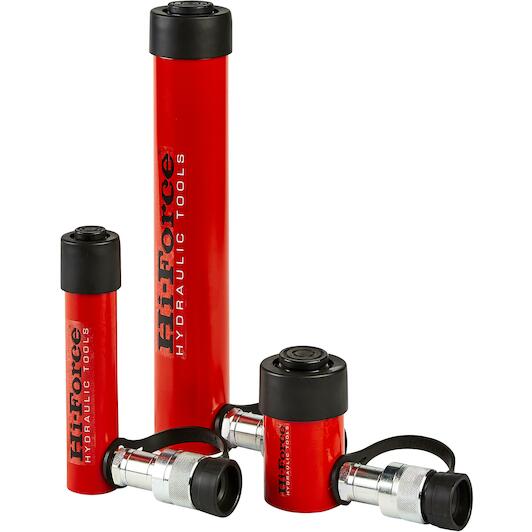

Product description
- Single-acting, spring return
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved high-pressure performance
- Bearing thread suitable for full load
- Grooved saddles fitted as standard on all models
- Capacity: 50 tonnes
- Stroke length: 102 mm
- Oil capacity: 728 cm³
- Construction height: 201 mm
- Cylinder diameter: 127 mm
- Piston diameter: 79 mm
- Weight: 16.8 kg
- Max. working pressure: 700 bar
- Complete with quick-release coupling
