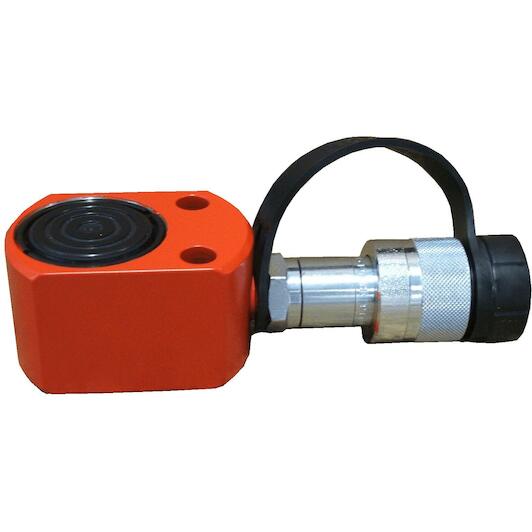

Product description
- Single-acting, spring return
- Low build height design for use in confined spaces
- Nitrocarbonised plunger for corrosion resistance
- Bearing surfaces with minimal friction
- Anti-extrusion seals for improved performance at high pressure
- Capacity: 10 tonnes
- Stroke length: 10 mm
- Oil capacity: 14 cm³
- Construction height: 45 mm
- Cylinder diameter: 81 mm
- Piston diameter: 38 mm
- Weight: 1.6 kg
- Max. working pressure: 700 bar
- Complete with quick-release coupling
