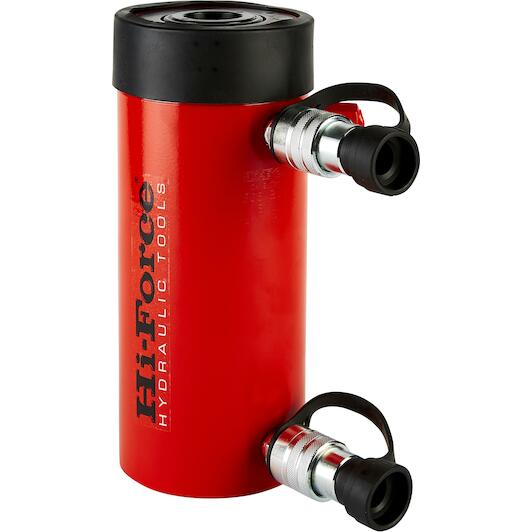

HI-FORCE HHR306 hydraulic double-acting hollow plunger cylinder, 33 tonnes, stroke length 150 mm

Name: HI-FORCE HHR306 hydraulic double-acting hollow plunger cylinder, 33 tonnes, stroke length 150 mm
Brand: HI-FORCE
SKU: 06002606
Price: 3081.58 EUR
Availability: PreOrder

3,081.58 tax incl.

€2,546.76 excl. VAT (incl. all environmental contributions)

HI-FORCE HHR306 hydraulic double-acting hollow plunger cylinder, 33 tonnes, stroke length 150 mm

€3,081.58

On order: delivered from 19/05/2026

each

Delivery by DHL
Manual in your language included

Product information
Additional info

Product description

Double-acting design for improved control
Hollow plunger design for tooling, maintenance, and chucking applications
Nitrocarbonised plunger for corrosion resistance
Bearing surfaces with minimal friction
Return side equipped with pressure relief valve
Anti-extrusion seals for improved performance at high pressure
Bearing thread suitable for full load

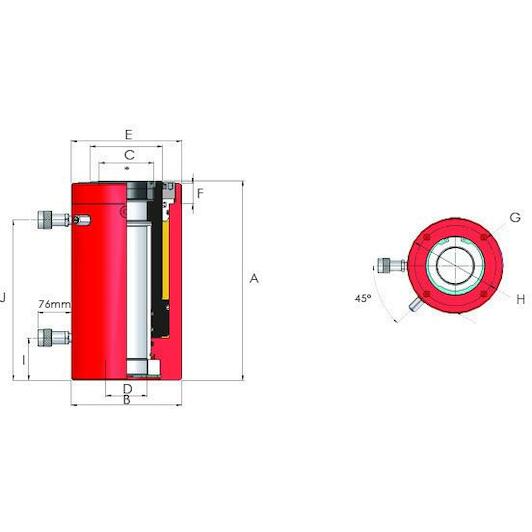

Note: the 33 and 61 tonne versions offer 2 mounting holes at 90° from the coupling.
Thrust force: 33 tonnes
Pull force: 24 tonnes
Stroke length: 150 mm
Oil capacity: 701 cm³
Construction height: 279 mm
Cylinder diameter: 115 mm
Piston diameter: 60 mm
Weight: 17.6 kg
Inner diameter plunger: 35 mm
Connection plunger: 4.1/2"-12
Max. working pressure: 700 bar
