Product description

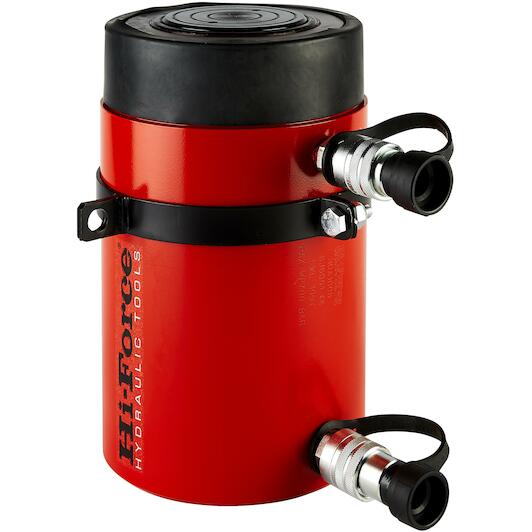

- Double-acting heavy-duty cylinder
- Capacity of 152 tonnes
- Stroke length of 152 mm
- Working pressure 700 bar
- Double-acting design increases efficiency through improved performance.
- Substantial pull in return mode for increased versatility
- Nitrocarbonised cylinder housing and plunger for enhanced corrosion protection
- Bearing surfaces with minimal friction
- Return side equipped with pressure relief valve
- Anti-extrusion seals for improved high-pressure performance
- Flat saddle, collar thread and plunger thread as standard on all models up to 203 tonnes
- Lifting eyes standard on models from 152 to 1012 tonnes
- Note: mounting holes for positioning not suitable for full load
