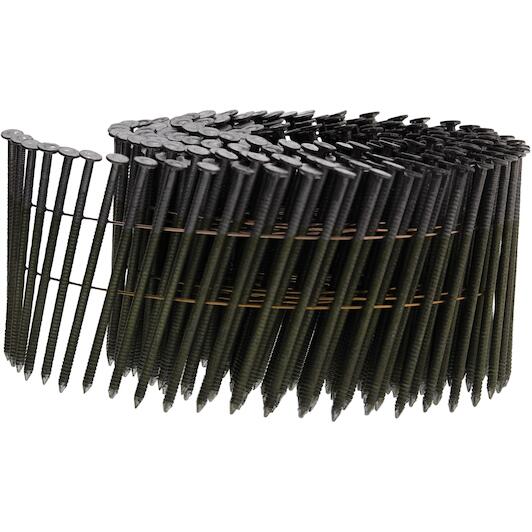

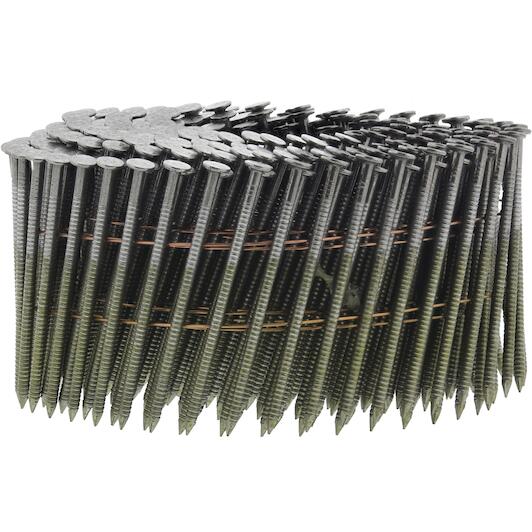

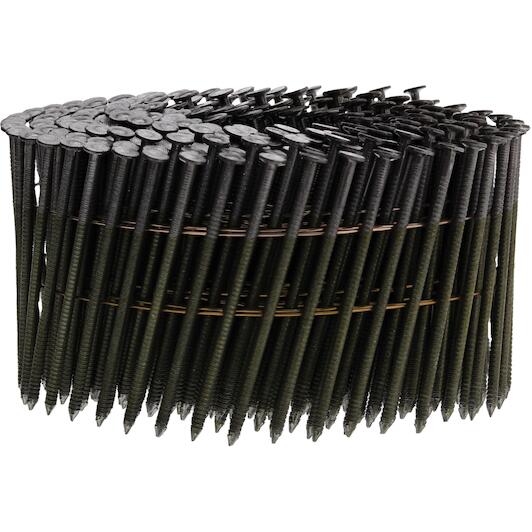

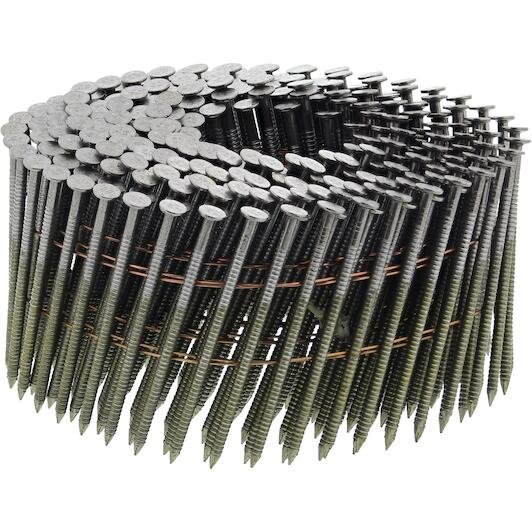

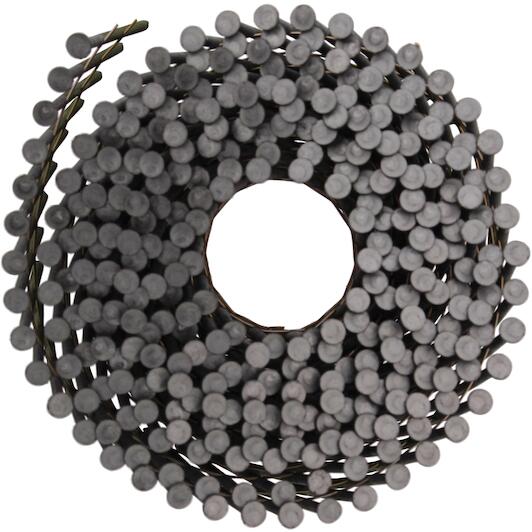

HAUBOLD 504501 coil nail 16° threaded CW 2.5x60mm ring blank

Name: HAUBOLD 504501 coil nail 16° threaded CW 2.5x60mm ring blank
Brand: HAUBOLD
SKU: 02702180
Price: 0.02 EUR
Availability: PreOrder

Supplier number: HAUBOLD 504501 | EAN 4022907045010

0.02 tax incl.

€0.02 excl. VAT (incl. all environmental contributions)

On order: delivered from 10/10/2026

The minimum purchase order quantity for the product is 7200.

Delivery by DHL

✆ Talk to a specialist

Secure timber fastening with Haubold

Practical benefits

Superior holding power: The ring shank profile grips deep into wood fibres, giving you maximum resistance against pulling forces.
Smooth pneumatic feeding: Wire-collated at 16°, these nails feed reliably into your coil nailer to ensure uninterrupted, rapid nailing.
Reliable structural fastening: Sized at 2.5x60 mm, they provide the ideal depth and strength you need for framing and timber assembly.

In a nutshell

The right choise for

With Haubold 504501 coil nails, you create secure and highly durable timber joints with ease. The ring shank profile grips deep into wood fibres to provide superior withdrawal resistance, keeping your structures firmly in place. Wire-collated at a 16° angle, they feed smoothly into your coil nailer for fast, uninterrupted work on pallets, crates, framing, and subflooring. Sized at 2.5x60 mm, these bright steel nails deliver the ideal depth and holding power for dry indoor projects. a box contains 7200 nails, giving you plenty of capacity to get the job done efficiently.

Product information FAQ

€0.02

tax incl.

Key features according to our expert

Length: 60 mm
Diameter: 2,5 mm

Scope of delivery

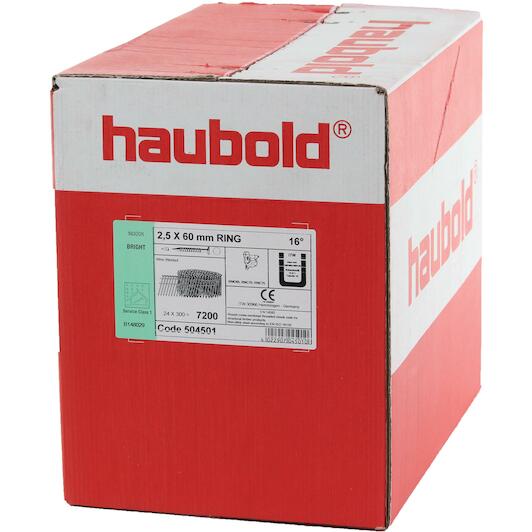

Box with 7200 nails

Product description

Indoor use, service class 1
Standard quality nails for applications where aesthetics and anti-corrosion are not a high priority
Large nail capacity: work longer without reloading
Weatherproof

Applications

Timber frame construction
Roof panels
Packing and crates
Pallets
Battens
Formwork
Precast applications
Floors
Cladding

All Features

Length: 60 mm
Diameter: 2,5 mm
Type of connection: 16° plastic coil wire welded
Service class: Indoor use
Rush: 8.0 mm
Number of nails per strip: 300 pcs
Wire type: Ring
Point type: Diamond
Base material: Wood
Type of head: Flat head
Surface treatment: Bright
Head diameter: 6.1 mm
Nominal diameter: 2.5 mm

Brand HAUBOLD
02702180
EAN 4022907045010
Supplier number HAUBOLD 504501

Frequently asked questions about this product

Answered by specialists

What are the dimensions of these coil nails?: These nails have a length of 60 mm and a diameter of 2.5 mm.
What collation type and angle do these nails feature?: The nails are wire welded at a 16° angle.
What shank profile and finish do these nails have?: They feature a ring shank for superior holding power and a bright (blank) steel finish.
What applications are these bright nails suitable for?: They are intended for indoor applications (service class 1) where anti-corrosion is not required.
How many nails are included in a box?: One box contains 7200 nails.
