GESIPA 1433679 blind rivet nut flat-head cillindrical smooth aluminium hp M5 7 x 13.5 mm

Supplier number: GESIPA 1433679 | EAN 5013656410173
0.17 tax incl.
€0.14 excl. VAT (incl. all environmental contributions)
On order: delivered from 24/11/2026

The minimum purchase order quantity for the product is 500.

  • Delivery by DHL

Solid internal threads from one side

Practical benefits
  • Reliable blind M5 installation: You create strong M5 threads in hollow sections or sheet panels where rear access is impossible.
  • Broad flat head support: The wide dome head distributes clamping pressure across the surface to stop thin sheet materials from distorting.
  • Lightweight corrosion resistant aluminium: Manufactured from aluminium, it prevents rust buildup while keeping overall assembly weight to a minimum.

In a nutshell

The right choise for

Create a dependable M5 female thread in hollow profiles or thin sheet materials where rear access is impossible with this Gesipa blind rivet nut. It is well suited for automotive repairs, panel mounting and light enclosure assembly.

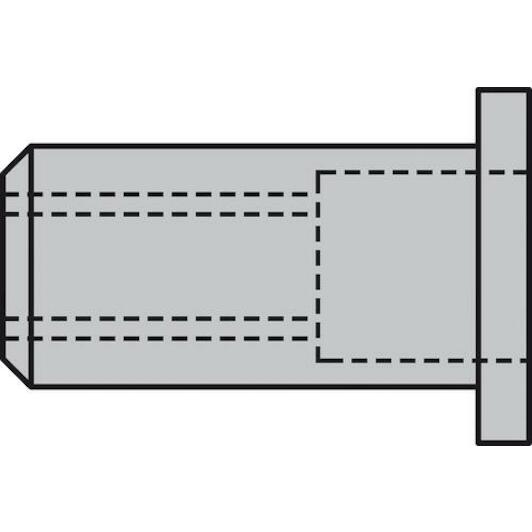

The smooth cylindrical aluminium body features a 7 mm shank diameter and 13.5 mm length, fitting into a 7.1 mm drilled hole. Covering a grip range from 2.5 mm to 5.0 mm, it locks securely in place using a standard rivet nut tool fitted with an M5 threaded mandrel.

A wide flat round head spreads the clamping force across the surface, protecting thin components against distortion or pull-through. In addition, the lightweight aluminium construction resists corrosion without adding unnecessary weight to your structure.



€0.17
tax incl.

Product information

Key features according to our expert

  • Length: 13,5 mm
  • Thread designation: M5
  • Diameter (shoulder): 7 mm

Product description:

  • GESIPA blind rivet nuts are joining elements which allow you to create strong and durable threads for non-permanent connections.
  • Blind rivet nuts provide an internal thread.
  • As with blind rivets, two or more components can be riveted together using both joining elements.
  • They can be riveted "blindly" into the workpiece, meaning that only one side can be accessed.
  • It is this simplicity which makes the blind rivet nut such a smart solution.
  • Blind rivet nuts are available from GESIPA in various models with different setting-head shapes and made from various materials such as aluminium, steel or stainless steel.

All Features

Length
13,5 mm
Thread designation
M5
Diameter (shoulder)
7 mm
  • Brand GESIPA
  • EAN 5013656410173
  • Supplier number GESIPA 1433679

Frequently asked questions about this product

Answered by specialists
What drill hole diameter is required for this blind rivet nut?
With a shank diameter of 7 mm, drill a 7.1 mm hole into the workpiece.
What is the grip range of this Gesipa nut?
This model is suitable for material thicknesses between 2.5 mm and 5.0 mm.
Which tool is required for installation?
You install this blind rivet nut using a rivet nut setting tool fitted with an M5 threaded mandrel and nosepiece.
What is the advantage of the flat dome head?
The flat round head provides a wide contact area, supporting the nut securely against the workpiece surface.
Can this fastener be installed in thin sheet material?
Yes, blind rivet nuts are designed to create durable M5 threads in thin materials accessible from only one side.
