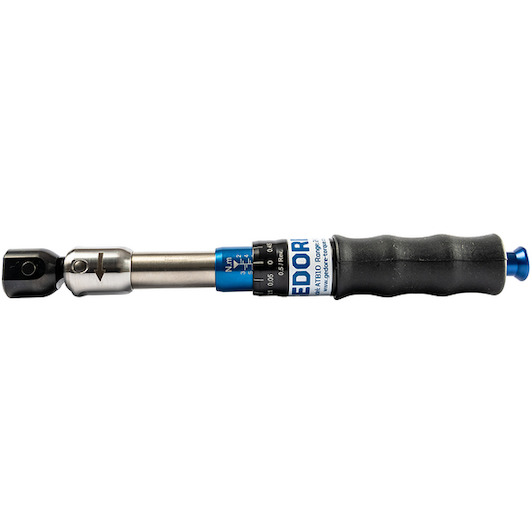

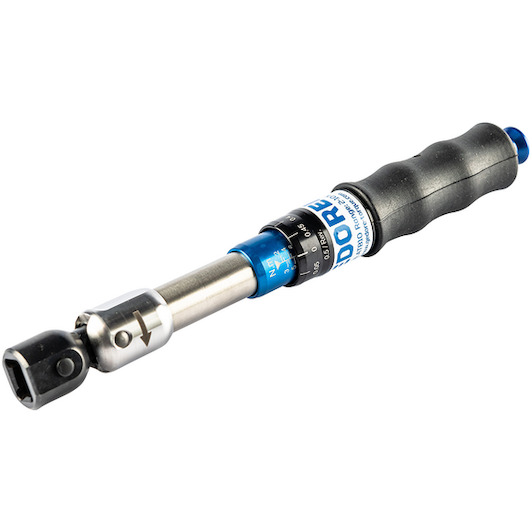

GEDORE ATB 5 G articulated torque spanner ATB SE 9x12 mm 1-5 Nm - 2839636

Name: GEDORE ATB 5 G articulated torque spanner ATB SE 9x12 mm 1-5 Nm - 2839636
Brand: GEDORE
SKU: 08072987
Price: 451.16 EUR
Availability: PreOrder

Supplier number: GEDORE 2839636 | EAN 0611702896008

This product has been discontinued.

✆ Talk to a specialist

Product information

Key features according to our expert

Max. tightening torque: 5 Nm
Drive profile size: 9 x 12 mm
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Min. tightening torque: 1 Nm

Product description

With 9x12 mm internal rectangular tray
With micrometer scale, which allows simple and safe setting of the desired value
With setting protection against unintentional adjustment of the torque value
Tripping accuracy /- 6 %
Kinking of the handle up to 20° on reaching the set torque makes tripping unlikely.
Classified according to DIN EN ISO 67892003 Type II Class A

All Features

Max. tightening torque: 5 Nm
Drive profile size: 9 x 12 mm
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Min. tightening torque: 1 Nm
Vernier nm: 0.025 Nm
Torque (min.) [nm].: 1 Nm
Overall length [mm]: 230 mm
Tightening direction: Left and right
Precision +/-: +/- 6 %
Test certificate: DIN EN ISO 6789-2:2017
Drive type/drive: Rectangle recording
Fixed setting: No
Drive intake, rectangular...: 9 x 12 mm
Insertion depth 1: 16.0 mm
Epa/esd version: No
Turn-off mechanism: Long-stroke release
Target groups: AutomotiveIndustry Precision mechanics Military Mechanical Engineering Service
Scope: AssemblySeries assembly Production Quality control Test and trial departments
Torque (max.) [nm].: 5 Nm
