Scope of delivery
- KNICKER torque spanner type 88,Test certificate in accordance with DIN EN ISO 6789,Supplied in a robust plastic case
Product description
- Application Controlled screw tightening in the range 150 - 1000 Nm
- Industry and automotive (trucks, commercial vehicles)

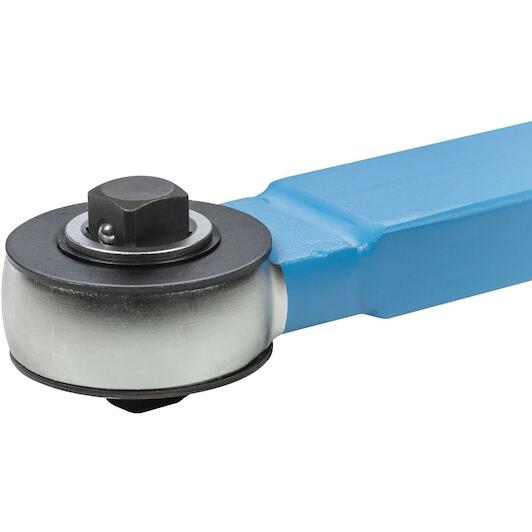

- Design Adjustable torque spanner - with scale, 3/4" drive square with integrated ratchet function
- Suitable for clockwise and anticlockwise tightening, due to piercing square
- Accuracy +/- 4 % tolerance of set scale value
- Construction in accordance with DIN EN ISO 6789, traceable to national standards
- Snap mechanism (handle bends) as switch-off signal, tactile and visible, makes overtightening unlikely, double scale in Nm and lbf-ft
- Scope of delivery Torque spanner type 88 KNICKER
- Test certificate in accordance with DIN EN ISO 6789

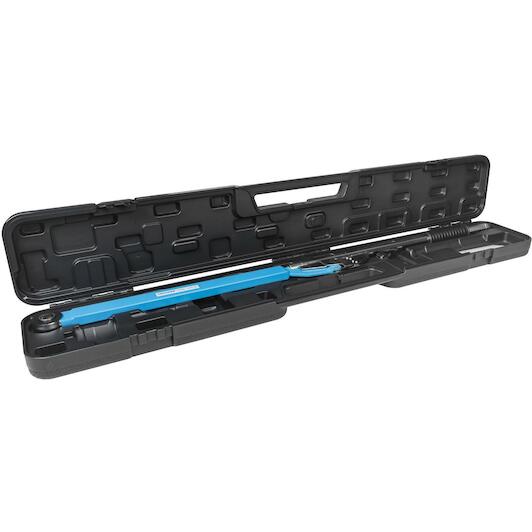

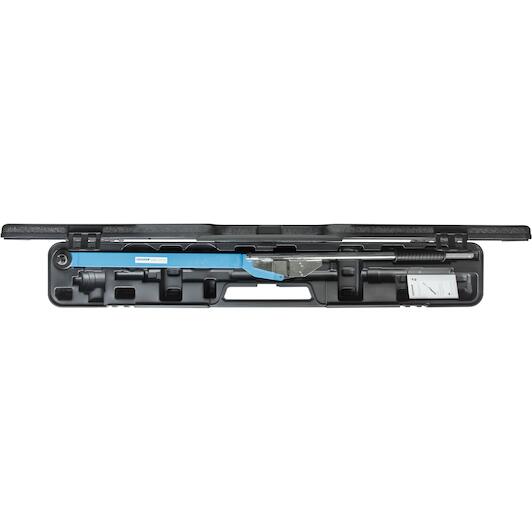

- Supplied in a robust plastic case
Key features according to our expert
-
Min. tightening torque: 150 Nm
-
Drive profile size: 3/4"
-
VDE approved: No
-
With safety colour code 1000V: Not applicable
-
ESD: No
-
Adjustable torque range: 150-700 Nm
-
Max. tightening torque: 700 Nm
Specifications / All features
-
Brand:
GEDORE
-
03218125
-
EAN:
4010886950227
-
Supplier number:
GEDORE 3022854
- Min. tightening torque
- 150 Nm
- Drive profile size
- 3/4"
- Vde approved
- No
- With safety colour code 1000v
- Not applicable
- Esd
- No
- Adjustable torque range
- 150-700 Nm
- Max. tightening torque
- 700 Nm
- Precision +/-
- +/- 4 %
- Drive type/drive
- Piercing square
- Tightening torque (min.) [lbf-ft]
- 100 lbf-ft
- Scale division [nm]
- 20 Nm
- Overall length [mm]
- 1,250 mm
- Storage/contents
- Plastic case
- Tightening direction
- Left and right
- Drive square [inch]
- 3/4"
- Retrieval angle
- 10 °
- Torque (min.) [nm].
- 150 Nm
- Fixed setting
- No
- Target groups
- Automotive Industry Construction and commercial vehicles Consumer Military Mechanical Engineering Utilities Railroad Service Agriculture Oil and gas
- Tightening torque (max) [lbf-ft]
- 500 lbf-ft
- Turn-off mechanism
- Long-stroke release
- Scale division [lbf-ft]
- 10 lbf-ft
- Drive square [metric]
- 20 mm
- Scope
- AssemblyMaintenance and repair
- Material
- Tubular steel construction
- Number of teeth
- 36
- Torque (max.) [nm].
- 700 Nm
