GEDORE 8574-10 torque spanner dremometer ds 3/4" 110-550 Nm - 1427156

Name: GEDORE 8574-10 torque spanner dremometer ds 3/4" 110-550 Nm - 1427156
Brand: GEDORE
SKU: 41151053
Price: 1151.8 EUR
Availability: PreOrder

Supplier number: GEDORE 1427156 | EAN 4002805921531

Recommended Retail Price €1,828.16

1,151.80 tax incl.

€951.90 excl. VAT (incl. all environmental contributions)

On order: delivered from 20/10/2026

Delivery by DHL

✆ Talk to a specialist

Product information

€1,151.80

tax incl.

Key features according to our expert

Max. tightening torque: 550 Nm
Drive profile size: 3/4"
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Display: Analogue
Overall length: 812 mm
Min. tightening torque: 110 Nm

Product description

Application Controlled screw tightening in the range 110 - 550 Nm / 80 - 400 lbf-ft
For use in almost all industrial (production) environments

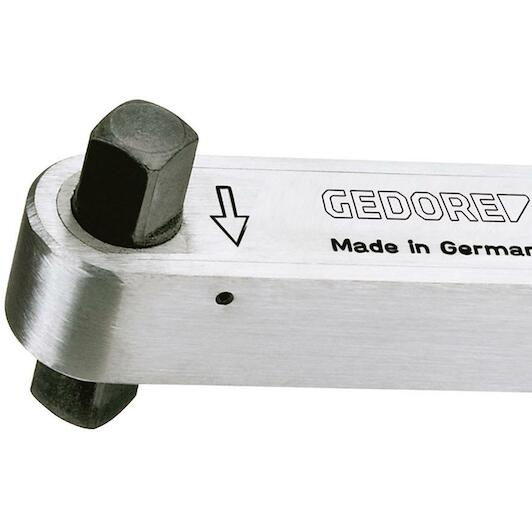

Version Classified according to DIN EN ISO 6789-22017 Type II Class A, incl traceable test certificate, calibrated with a maximum permissible deviation of +/- 3% and thus more accurate than the /- 4% prescribed by the standard, 3/4" drive square with pin lock DIN 3120 - B 20
ISO 1174
Automatic stop with tactile and audible signal
Double scale with 10 Nm and 10 lbf-ft graduations
Technical advantages/function Light but robust (because the housing is made of a single piece of aluminium), very workshop-friendly
No shifting of set values and therefore no impact on accuracy by working with both hands or outside the handle (as with conventional torque spanners).
Both the drive square and the pivot point are on one shaft, so lengthening the spanner does not affect the tightening value.
Extremely low wear due to force reduction on the lever mechanism
Forged lever chain from the in-house GEDORE quality forge
High precision, even in heavy continuous use
Long service life and long service life
Simple operation - quick and reliable tightening of the set torque
Convenient adjustment using an attractively designed, captive adjustment knob on the handle end
Single or double drive square for controlled clockwise and/or anticlockwise tightening

All Features

Max. tightening torque: 550 Nm
Drive profile size: 3/4"
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Display: Analogue
Overall length: 812 mm
Min. tightening torque: 110 Nm
Test certificate: DIN EN ISO 6789-2:2017
Fixed setting: No
Drive type/drive: Single-sided square
Tightening torque (min.) [lbf-ft]: 80 lbf-ft
Head width 1 [mm].: 45.0 mm
Standard: DIN 3120 - B 20ISO 1174
Storage/contents: Plastic box
Scale division [nm]: 10 Nm
Head height 1 [mm]: 35 mm
Precision +/-: +/- 3 %
Drive square [inch]: 3/4"
Tightening direction: Turn right
Overall length [mm]: 812 mm
Torque (min.) [nm].: 110 Nm
Tightening range (min/max) [lbf-ft].: 80 lbf-ft - 400 lbf-ft
Turn-off mechanism: Short road clearance
Calibration length: 719 mm
Tightening torque (max) [lbf-ft]: 400 lbf-ft
Distance housing - square centre: 22.5 mm
Scale division [lbf-ft]: 10 lbf-ft
Target groups: Automotive Industry Construction and commercial vehicles Military Energy Mechanical engineering Workshop Utilities Service Agriculture Oil and gas
Drive square [metric]: 20 mm
Type of torque spanner: DS
Torque range (min./max.) [nm].: 110 Nm - 550 Nm
Scope: MountingSeries assembly Production Maintenance and repair
Material: Aluminium alloy
Torque (max.) [nm].: 550 Nm
