What size is this combination ratchet spanner?

This spanner has an 8 mm size on both ends.

Is the ratcheting direction reversible?

Yes, you can quickly switch between clockwise and counterclockwise rotation using the change lever.

What is the benefit of the UD profile?

The UD profile applies force to the fastener flats, providing high torque transfer while protecting bolt heads.

What is the working angle of the ratchet mechanism?

The ratchet has a 7° working angle, allowing fast operation in tight spaces.

What is the total length of this spanner?

The total length of this spanner is 141 mm.

GEDORE 7 UR 8 UD 8 mm reversible ratchet spanner - 2297256

Name: GEDORE 7 UR 8 UD 8 mm reversible ratchet spanner - 2297256
Brand: GEDORE
SKU: 41896165
Price: 18.2 EUR
Availability: PreOrder

Supplier number: GEDORE 2297256 | EAN 4010886889350

Recommended Retail Price €31.27

18.20 tax incl.

€15.04 excl. VAT (incl. all environmental contributions)

On order: delivered from 08/10/2026

Delivery by DHL

✆ Talk to a specialist

Faster tightening with Gedore ratchet

Practical benefits

Quick direction change lever: You effortlessly switch between loosening and tightening without having to take the wrench off the fastener.

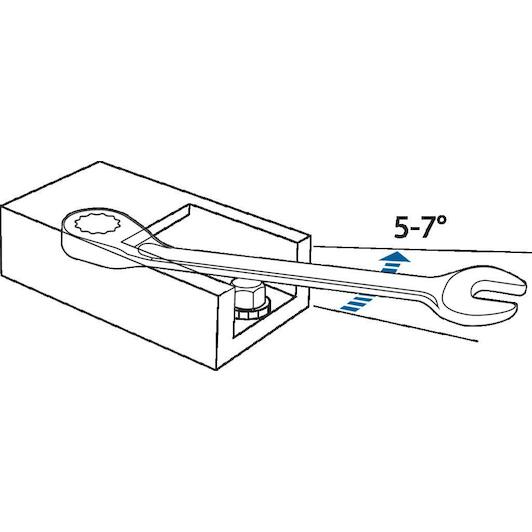

Easy access in tight spaces: The 13-degree offset ring and compact 7-degree working angle give you excellent clearance in confined areas.
High torque fastener protection: The engineered UD profile distributes force evenly, ensuring you transmit maximum torque without rounding bolt heads.

In a nutshell

The right choise for

With the Gedore 7 ur 8 reversible combination ratchet spanner, you tackle 8 mm bolts and nuts quickly and accurately, even in cramped spaces. Thanks to the compact 7-degree working angle and the 13-degree offset ring, you need minimal swing clearance in tight engine bays and machinery. The integrated reversing lever lets you switch directions instantly without taking the spanner off the fastener. Furthermore, the proven ud profile applies force directly to the flats, delivering high torque transfer while protecting bolt heads from wear. Measuring 141 mm in total length, this tool provides the ideal balance of leverage and accessibility for mechanical assembly.

Product information FAQ

€18.20

tax incl.

Key features according to our expert

Width across flats: 8 mm
Overall length: 141 mm

Product description

With equal key widths
UD profile
High power transmission
Chrome vanadium steel 31CrV3
Reflective appearance through matt chrome-plated surface, insert ring and locking bar manganese-phosphated
Annealed forged
Jaws ground to exact nominal size for optimum contact surfaces
With adapter No. 7 RA or No. 7 RB (to be ordered separately) the No. 7 UR becomes a (bit) ratchet
Ring side bent by 13°, switchable
With spanner with ring ratchet No. 7 R for loosening the ratchet or quickly tightening the ratchet.
Fits comfortably in the hand due to profiled profile in the shaft
Torsion-resistant geometry with double T-profile

All Features

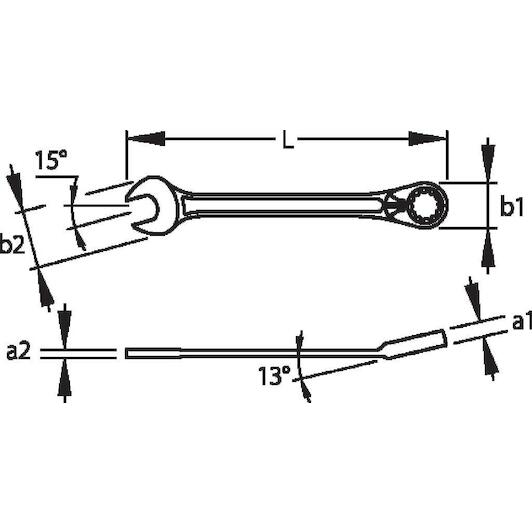

Width across flats: 8 mm
Overall length: 141 mm
Retrieval angle: 7 °
Overall length [mm]: 141 mm
Surface area: chromed
Head height 1 [mm]: 7 mm
Bekstand: 15 °
Standard: non-standardized
Head width 1 [mm].: 17.5 mm
Head height 2 [mm]: 3.8 mm
Head width 2 [mm]: 19.8 mm
Ring corner: 13°
Material: 31CrV3
Key width [mm]: 8,0

Brand GEDORE
41896165
EAN 4010886889350
Supplier number GEDORE 2297256

Frequently asked questions about this product

Answered by specialists

What size is this combination ratchet spanner?: This spanner has an 8 mm size on both ends.
Is the ratcheting direction reversible?: Yes, you can quickly switch between clockwise and counterclockwise rotation using the change lever.
What is the benefit of the UD profile?: The UD profile applies force to the fastener flats, providing high torque transfer while protecting bolt heads.
What is the working angle of the ratchet mechanism?: The ratchet has a 7° working angle, allowing fast operation in tight spaces.
What is the total length of this spanner?: The total length of this spanner is 141 mm.
