GEDORE 7 UR 22 switchable ratchet spanner UD 22 mm - 2297388

GEDORE
Supplier number: GEDORE 2297388 | EAN 4010886889480
Recommended Retail Price €78.72
44.80 tax incl.
€37.02 excl. VAT (incl. all environmental contributions)
On order: delivered from 14/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€44.80
tax incl.

Product information

Key features according to our expert

  • Width across flats: 22 mm
  • Overall length: 281 mm

Product description

  • With equal key widths
  • UD profile
  • High power transmission
  • Chrome vanadium steel 31CrV3
  • Reflective appearance through matt chrome-plated surface, insert ring and locking bar manganese-phosphated
  • Annealed forged
  • Jaws ground to exact nominal size for optimum contact surfaces
  • With adapter No. 7 RA or No. 7 RB (to be ordered separately), the No. 7 UR becomes a (bit) ratchet
  • Ring side bent by 13°, switchable
  • With spanner with ring ratchet No. 7 R for loosening the ratchet or quickly tightening the ratchet.
  • Fits comfortably in the hand due to profiled profile in the shaft
  • Torsion-resistant geometry with double-T profile

All Features

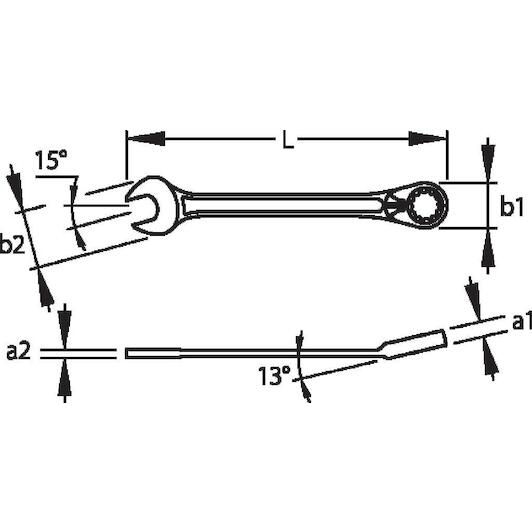

Width across flats
22 mm
Overall length
281 mm

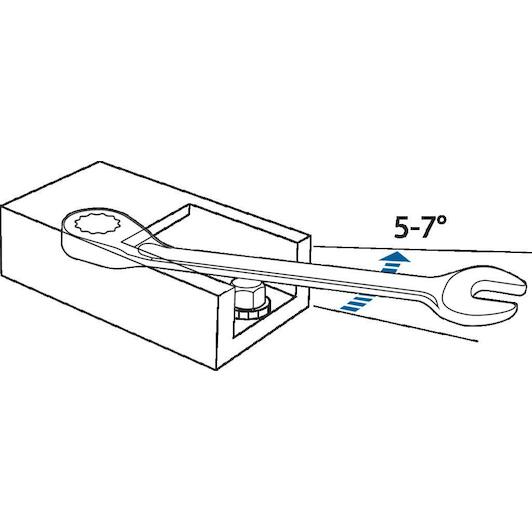

Retrieval angle
6 °
Overall length [mm]
290 mm
Surface area
chromed
Head height 1 [mm]
13.3 mm
Bekstand
15 °
Standard
non-standardized
Head width 1 [mm].
42.5 mm
Head height 2 [mm]
7.1 mm
Head width 2 [mm]
48 mm
Ring corner
13°
Material
31CrV3
Key width [mm]
22,0
  • Brand GEDORE
  • EAN 4010886889480
  • Supplier number GEDORE 2297388
