GEDORE 4550-10 torque spanner torcofix k 1/2" 20-100 Nm - 7601530

Name: GEDORE 4550-10 torque spanner torcofix k 1/2" 20-100 Nm - 7601530
Brand: GEDORE
SKU: 41150575
Price: 325.03 EUR
Availability: PreOrder
Rating: 8 (2 reviews)

2 review(s)

This article is not available

Successor to this product

GEDORE TF-K100 Torcofix K 1/2" torque spanner, 20-100 Nm -...

View product

Product information
Reviews

Product description

4550-10 Torque spanner TORCOFIX K 1/2" 20-100 Nm

Features

Controlled tightening of screws in the range of 1 - 850 N-m / 0.75 - 630 lbf-ft (guide values screws M3-6.9 to M24-8.8,M30-5.6),adjustable,audible and tactile switch-off and robust torque spanner with integrated ratchet with square drive for industry and crafts,Design: classified in accordance with DIN EN ISO 6789:2003 type II class A, with a manufacturer's certificate
Accuracy +/- 3 % of set scale value
Exceeds the directive of the standard (+/- 4 %),for controlled clockwise and anticlockwise tightening,1/4",3/8",1/2" mushroom head-switching square with ball lock
From 3/4" through-hole square with ball lock,robust,painted tubular steel construction,with zinc-plated ratchet and high-quality plastic parts,ergonomically shaped,handy,black plastic handle with calibration aid,double scale N-m and lbf-ft under a viewing window with magnifying glass effect,with micrometer scale for N-m main scale for setting scale intermediate values,automatic switch-off using audible and tactile signal,ergonomic system for setting the torque

Key features according to our expert

Min. tightening torque: 20 Nm
Drive profile size: 1/2"
VDE approved: No
With safety colour code 1000V: Not applicable
ESD: No
Adjustable torque range: 20-100 Nm
Max. tightening torque: 100 Nm

Specifications / All features

Brand: GEDORE
41150575
EAN: 4002805455012
Supplier number: GEDORE 7601530

Min. tightening torque: 20 Nm
Drive profile size: 1/2"
Vde approved: No
With safety colour code 1000v: Not applicable
Esd: No
Adjustable torque range: 20-100 Nm
Max. tightening torque: 100 Nm
Test certificate: DIN EN ISO 6789-2:2017
Fixed setting: No
Drive type/drive: Mushroom head
Tightening torque (min.) [lbf-ft]: 15 lbf-ft

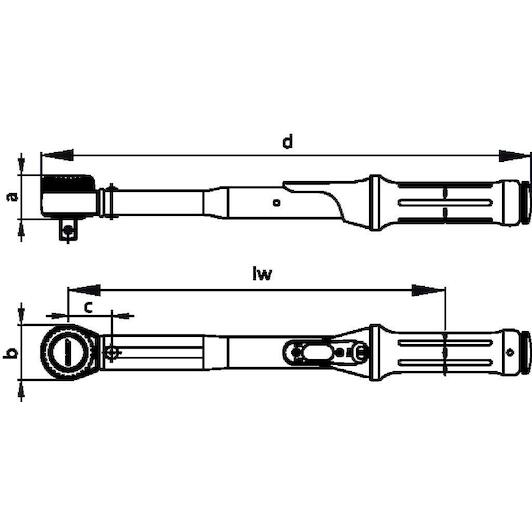

Head width 1 [mm].: 44.0 mm
Tightening direction: Left and right
Scale division [nm]: 5 Nm
Head height 1 [mm]: 36 mm
Precision +/-: +/- 3 %
Tightening range (min/max) [lbf-ft].: 15 lbf-ft - 75 lbf-ft
Overall length [mm]: 395 mm
Retrieval angle: 7,5 °
Torque (min.) [nm].: 20 Nm
Vernier nm: 0.5 Nm
Distance housing - square centre: 22 mm
Drive square [inch]: 1/2"
Calibration length: 303.2 mm
Tightening torque (max) [lbf-ft]: 75 lbf-ft
Turn-off mechanism: Short road clearance
Scale division [lbf-ft]: 5 lbf-ft
Target groups: Automotive Industry Construction and Commercial Vehicles Consumer Energy Mechanical Engineering Workshop Service Agriculture Oil and gas Utilities
Drive square [metric]: 12.5 mm
Torque range (min./max.) [nm].: 20 Nm - 100 Nm
Scope: AssemblyMaintenance and repair
Number of teeth: 48
Torque (max.) [nm].: 100 Nm

Questions about this product?
Contact our customer service.
Call, mail or chat with us!

Reviews about GEDORE 4550-10 torque spanner torcofix k 1/2" 20-100 Nm - 7601530

8,0 op 10

2 review(s)

5 stars

(0)

4 stars

(2)

3 stars

(0)

2 stars

(0)

1 stars

(0)

Review Terms and Conditions Klium

8/10

Zeer degelijk ding met duidelijke klik op het ingestelde moment. Nadeeltje vind ik dat de schaalverdeling in Nm wat onduidelijk is af te lezen door het venstertje. Je moet er schuin in kijken.

Bas
14/01/2018

8/10

Richard
03/11/2016
