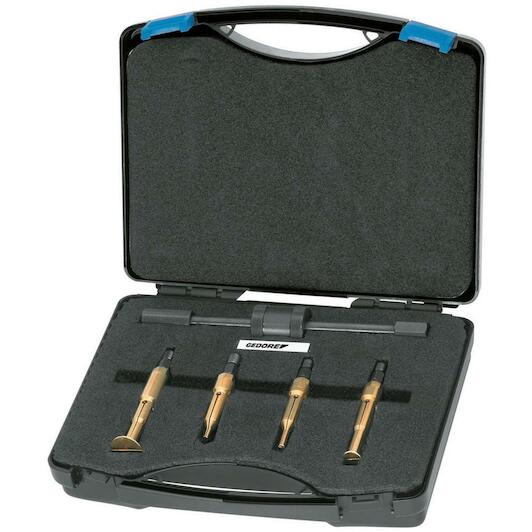

Scope of delivery
- 1.34/1 Inside puller 5 - 8.5 mm
- 1.34/2 Inside puller 8 - 15 mm
- 1.34/3 Inside puller 15 - 25 mm
- 1.34/4 Inside puller 25 - 36 mm
- 1.35/0 Slide hammer 230 mm, 200 g
- 134/099 Plastic case with foam insert
Product description
- For close-fitting ball bearings, rings, bushings and oil seals
- Titanium-grained surface
- Multiple spanner width (11 + 13 mm)
- M10 threaded connection
Operating instructions

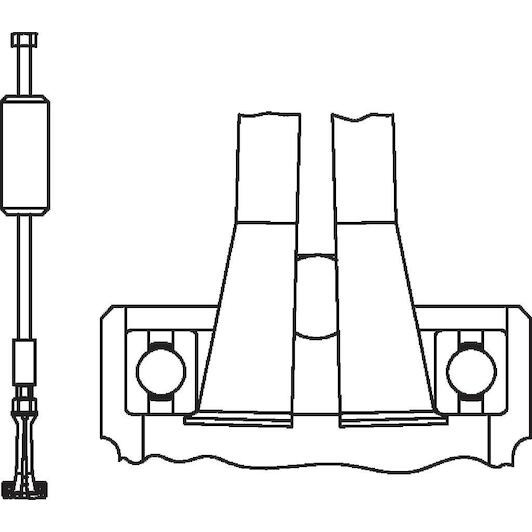

- Insert the internal extractor into the bearing and screw in the spindle
- The sharp cams of the shells press themselves behind the part to be removed
- Only then do you put on the slide hammer or counterholder
- In plastic case, 275 x 229 x 83 mm
