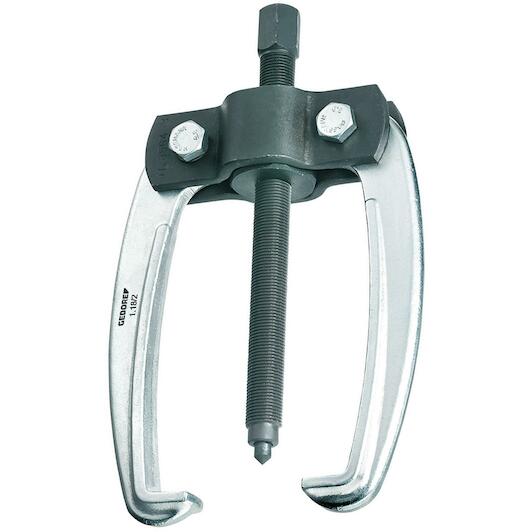

Product description
- The proven model series for price-conscious bearing release
Supplier number:
GEDORE 1464965
|
EAN
4036976111118
Recommended Retail Price
€81.99
48.40
tax incl.
€40.00 excl. VAT (incl. all environmental contributions)
Product information
Key features according to our expert
- Max. width: 110 mm
- Hydraulical: No
- Number of hooks: 2
- Max. height: 110 mm
All Features
- Max. width
- 110 mm
- Hydraulical
- No
- Number of hooks
- 2
- Max. height
- 110 mm
- Reversible arms available
- No
- Clamping bracket available
- No

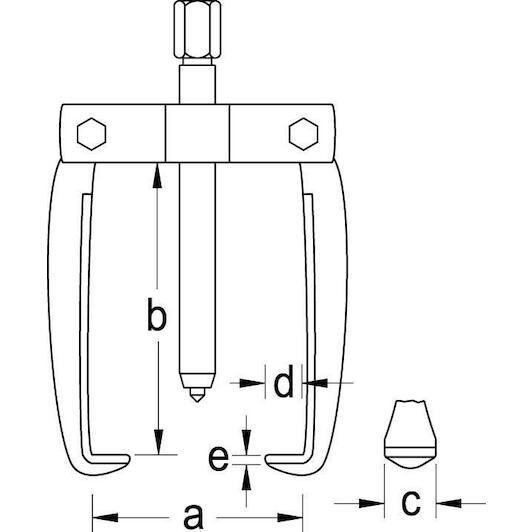

- Hook foot thickness at end e1 [mm]
- 5.0 mm
- Hook foot depth usable d2 [mm]
- 18 mm
- Suitable for use with a hydraulic spindle
- No
- Screws included
- No
- Hook foot width on the gripping surface c1 [mm]
- 17 mm
- Number of arms
- 2
- Spindle thread size
- M 14x1.5 x 163
- Towing force (max.) [t]
- 2
- Drive hexagonal width
- 17 mm
- Hook brake available
- No
- Span when pulled externally (max) [mm].
- 110 mm
- Spindle-slide protection
- No
- Clamping depth usable b [mm]
- 110 mm
- Brand GEDORE
- EAN 4036976111118
- Supplier number GEDORE 1464965
