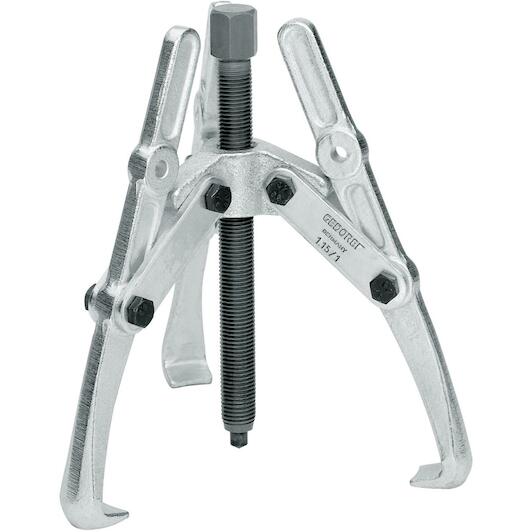

GEDORE 1.15/4 trigger 3-arm 280x390 mm - 8006510

Name: GEDORE 1.15/4 trigger 3-arm 280x390 mm - 8006510
Brand: GEDORE
SKU: 01041119
Price: 264.8 EUR
Availability: PreOrder

Supplier number: GEDORE 8006510 | EAN 4036976104684

Recommended Retail Price €454.94

264.80 tax incl.

€218.84 excl. VAT (incl. all environmental contributions)

On order: delivered from 07/10/2026

Delivery by DHL

✆ Talk to a specialist

Heavy-duty extraction with Gedore 1.15/4

Practical benefits

Balanced three arm grip: You remove pulleys, gears, and bearings smoothly as the 3 arms distribute heavy pulling forces evenly across components.
Extended reach for shafts: With a 390 mm clamping reach and 280 mm width, you easily access deeply positioned parts on long shafts.
Automatic leg clamping: The gripping feet clamp tighter automatically as you tighten the spindle, preventing slippage during high-load extractions.

In a nutshell

The right choise for

With the Gedore 1.15/4 universal puller, you smoothly dismount stubborn pulleys, bearings, and gears from long shafts. The 3 heavy-duty arms distribute the maximum pulling capacity of 12.0 tonnes evenly across the workpiece, preventing tilting and protecting the underlying shaft from damage. Thanks to a generous clamping width of 280 mm and a reach of 390 mm, you effortlessly access deeply seated components in industrial machinery, automotive workshops, and agricultural equipment. The gripping feet clamp tighter automatically as you turn the mechanical spindle, ensuring non-slipping, secure, and controlled extraction during every demanding maintenance job.

Product information FAQ

€264.80

tax incl.

Key features according to our expert

Max. width: 280 mm
Hydraulical: No
Number of hooks: 3
Max. height: 390 mm

Product description

Proven, particularly powerful design for pulling discs, wheels, ball bearings, etc.
Technical and economic advantages due to variable clamping depth and independent pulling of hooks
Particularly suitable for pulling V-belt pulleys and flywheel pulleys mounted on relatively long shafts
Suitable for use with a hydraulic spindle

All Features

Max. width: 280 mm
Hydraulical: No
Number of hooks: 3
Max. height: 390 mm
Reversible arms available: No
Clamping bracket available: No
Quick-release lever available: No
Hook foot thickness at end e1 [mm]: 3.5 mm
Hook foot depth usable d2 [mm]: 20 mm
Suitable for use with a hydraulic spindle: No
Hydraulic spindle optional: 1.06/HSP1
Screws included: No
Hook foot width on the gripping surface c1 [mm]: 32 mm
Number of arms: 3
Hooks parallel adjustable: No
Drive hexagonal width: 22 mm
Double-sided hooks: No
Towing force (max.) [t]: 12
Spindle thread size: G 1/2 x 250
Hook brake available: No
Span when pulled externally (max) [mm].: 280 mm
Spindle-slide protection: No
Automatic pressing: No
Clamping depth usable b [mm]: 390 mm

Brand GEDORE
01041119
EAN 4036976104684
Supplier number GEDORE 8006510

Frequently asked questions about this product

Answered by specialists

What are the maximum pulling dimensions of this tool?: This puller has a maximum clamping spread of 280 mm and a clamping reach of 390 mm.
Is the Gedore 1.15/4 a hydraulic puller?: No, this model features a standard mechanical spindle, but it can be retrofitted with an optional hydraulic spindle.
What are the primary applications for this 3-arm puller?: It is ideal for removing V-belt pulleys, flywheels, and bearings mounted on longer shafts.
What is the maximum pulling capacity of this tool?: The maximum pulling load capacity is 12.0 tonnes.
