GEDORE 1.15/1 trigger 3-armed 130x140 mm - 8006190

GEDORE
Supplier number: GEDORE 8006190 | EAN 4036976104646
Recommended Retail Price €120.30
65.80 tax incl.
€54.38 excl. VAT (incl. all environmental contributions)
On order: delivered from 09/10/2026

  • Delivery by DHL
✆ Talk to a specialist

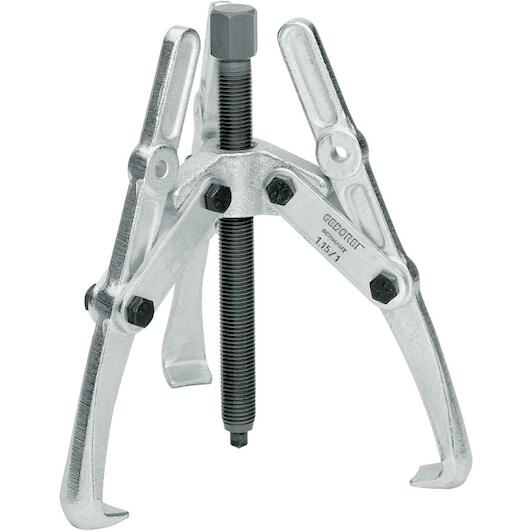

Reliable pulling with the Gedore universal puller

Practical benefits
  • Balanced load across components: The 3-arm configuration ensures you apply force evenly around bearings, pulleys, and gears without tilting or slipping.
  • Self-gripping legs for safety: You maintain a firm hold on workpieces because the hooks press tightly and automatically under increasing tension.
  • Reach on longer shafts: With a 130 mm spread and 140 mm reach, you easily access components positioned deeply on extended shafts.

In a nutshell

The right choise for

With the Gedore 1.15/1 universal puller, you remove seized ball bearings, pulleys, and gears without damaging surrounding components. The 3-arm design evenly distributes the maximum tractive force of 3.0 t across the workpiece to prevent tilting and slipping during tough jobs. Thanks to the self-gripping legs, you maintain a firm and secure hold throughout the extraction. Featuring a maximum clamping spread of 130 mm and a reach of 140 mm, it easily accesses components positioned deeply on extended shafts. You operate the mechanical spindle using a 17 mm wrench, with the option to retrofit a hydraulic spindle whenever required.



Product information FAQ
€65.80
tax incl.

Product information

Key features according to our expert

  • Max. width: 130 mm
  • Hydraulical: No
  • Number of hooks: 3
  • Max. height: 140 mm

Product description

  • Proven, particularly powerful design for pulling discs, wheels, ball bearings, etc.
  • Technical and economic advantages due to variable clamping depth and independent pulling of hooks
  • Particularly suitable for pulling V-belt pulleys and flywheel pulleys mounted on relatively long shafts
  • Suitable for use with a hydraulic spindle

All Features

Max. width
130 mm
Hydraulical
No
Number of hooks
3
Max. height
140 mm
Reversible arms available
No
Clamping bracket available
No
Quick-release lever available
No

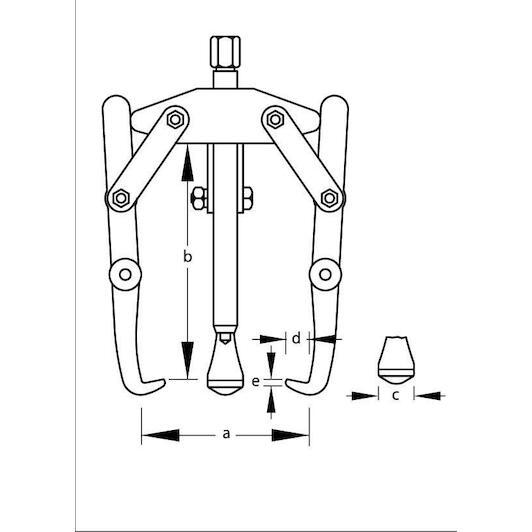

Hook foot thickness at end e1 [mm]
2.0 mm
Hook foot depth usable d2 [mm]
11 mm
Suitable for use with a hydraulic spindle
Yes
Screws included
No
Hook foot width on the gripping surface c1 [mm]
18 mm
Number of arms
3
Hooks parallel adjustable
No
Drive hexagonal width
17 mm
Double-sided hooks
No
Towing force (max.) [t]
3
Spindle thread size
M 14x1.5 x 140
Hook brake available
No
Span when pulled externally (max) [mm].
130 mm
Spindle-slide protection
No
Automatic pressing
Yes
Clamping depth usable b [mm]
140 mm
  • Brand GEDORE
  • EAN 4036976104646
  • Supplier number GEDORE 8006190

Frequently asked questions about this product

Answered by specialists
What are the maximum working dimensions of this puller?
The puller has a maximum clamping spread of 130 mm and a clamping reach of 140 mm.
What is the maximum pulling capacity?
This model provides a maximum tractive force of 3.0 t.
Can this puller be retrofitted with a hydraulic spindle?
Yes, it comes with a mechanical spindle and can be upgraded with a hydraulic spindle.
What wrench size is required to operate the spindle?
The actuating hexagon requires a 17 mm wrench or socket.
What applications is this three-arm puller suited for?
It is suited for removing pulleys, flywheels, ball bearings, and gears.
