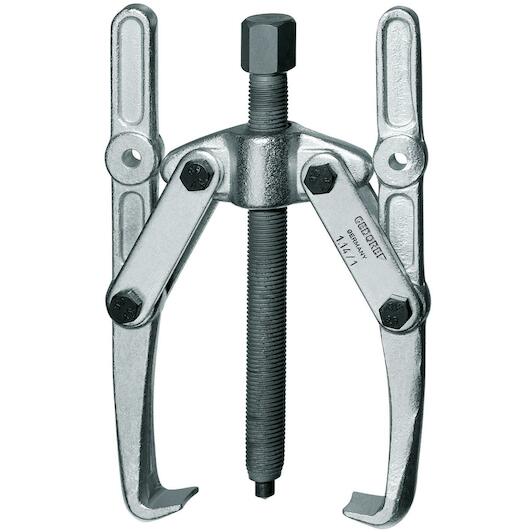

GEDORE 1.14/5 trigger 2-arm 420x480 mm - 8005620

Show more features

Max. width

420 mm

Number of hooks

2

Hydraulical

No

Max. height

480 mm

Double-sided hooks

No

Clamping bracket available

No

Hook foot thickness at end e1 [mm]

3.5 mm

Overall length [mm]

575 mm

Hook foot depth usable d2 [mm]

20 mm

Suitable for use with a hydraulic spindle

Yes

Hydraulic spindle optional

1.06/HSP1

Screws included

No

Hook foot width on the gripping surface c1 [mm]

32 mm

Number of arms

2

Reversible arms available

No

Drive hexagonal width

22 mm

Towing force (max.) [t]

8

Spindle thread size

G 1/2 x 350

Hook brake available

No

Span when pulled externally (max) [mm].

420 mm

Spindle-slide protection

No

Automatic pressing

Yes

Clamping depth usable b [mm]

480 mm
