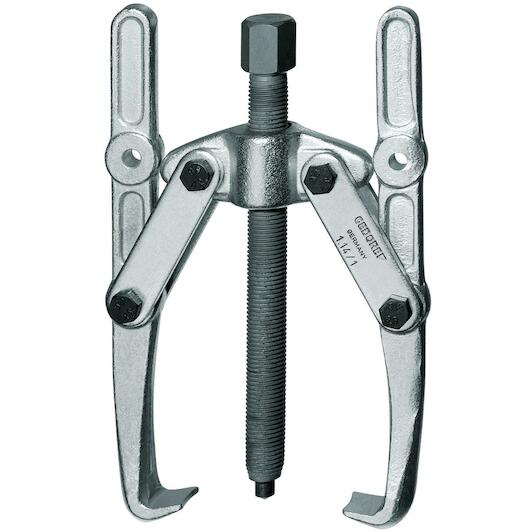

GEDORE 1.14/1 trigger 2-armed 130x140 mm - 8005030

GEDORE
Supplier number: GEDORE 8005030 | EAN 4036976104547
Recommended Retail Price €101.88
63.60 tax incl.
€52.56 excl. VAT (incl. all environmental contributions)
On order: delivered from 09/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€63.60
tax incl.

Product information

Key features according to our expert

  • Max. width: 130 mm
  • Hydraulical: No
  • Number of hooks: 2
  • Max. height: 140 mm

Product description

  • Proven, particularly powerful design for pulling discs, wheels, ball bearings, etc.
  • Technical and economic advantages due to variable clamping depth and independent pulling of hooks
  • Particularly suitable for pulling V-belt pulleys and flywheel pulleys mounted on relatively long shafts
  • Suitable for use with a hydraulic spindle

All Features

Max. width
130 mm
Hydraulical
No
Number of hooks
2
Max. height
140 mm
Double-sided hooks
No
Clamping bracket available
No
Hook foot thickness at end e1 [mm]
2.0 mm
Overall length [mm]
180 mm
Hook foot depth usable d2 [mm]
11 mm
Suitable for use with a hydraulic spindle
Yes
Screws included
No
Hook foot width on the gripping surface c1 [mm]
18 mm
Number of arms
2
Reversible arms available
No
Drive hexagonal width
17 mm
Towing force (max.) [t]
2
Spindle thread size
M 14x1.5 x 140
Hook brake available
No
Span when pulled externally (max) [mm].
130 mm
Spindle-slide protection
No
Automatic pressing
Yes
Clamping depth usable b [mm]
140 mm
  • Brand GEDORE
  • EAN 4036976104547
  • Supplier number GEDORE 8005030
