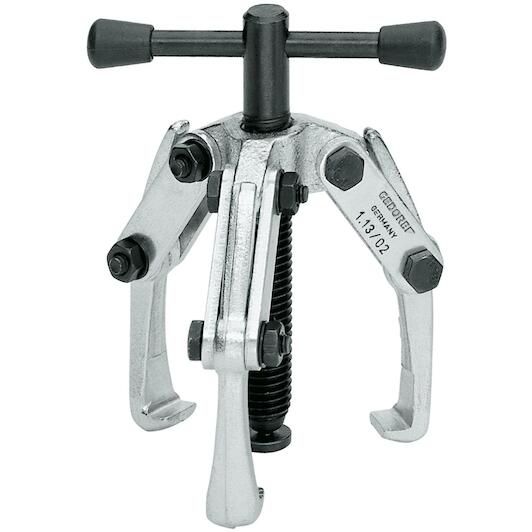

GEDORE 1.13/02 battery terminal puller 3-arm 60x40 mm - 8004650

Show more features

Max. width

60 mm

Puller type

Universel puller

Number of hooks

3

Hydraulical

No

Max. height

40 mm

Reversible arms available

No

Clamping bracket available

No

Quick-release lever available

No

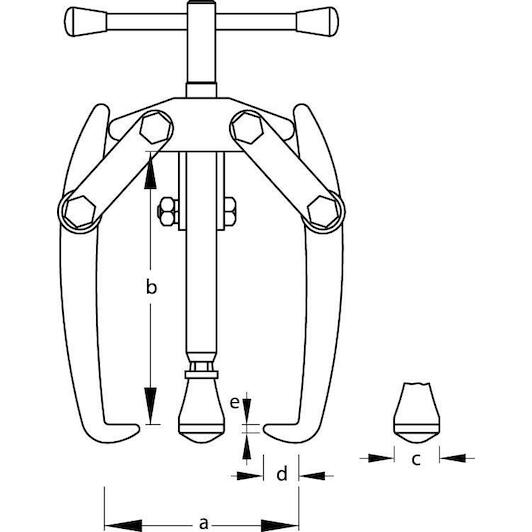

Hook foot thickness at end e1 [mm]

2.0 mm

Hook foot depth usable d2 [mm]

5 mm

Suitable for use with a hydraulic spindle

No

Screws included

No

Hook foot width on the gripping surface c1 [mm]

10 mm

Number of arms

3

Hooks parallel adjustable

No

Spindle thread size

M 10x1.5 x 60

Double-sided hooks

No

Towing force (max.) [t]

0.75

Hook brake available

No

Span when pulled externally (max) [mm].

60 mm

Spindle-slide protection

No

Automatic pressing

Yes

Clamping depth usable b [mm]

40 mm
