What is the Gedore 1.10/2 universal puller used for?

It is designed for pulling pulleys, wheels, gears, and ball bearings safely off shafts.

What are the maximum pulling dimensions?

This puller has a maximum clamping width of 160 mm and a maximum clamping reach of 130 mm.

Is this puller hydraulically operated?

No, the Gedore 1.10/2 operates purely mechanically using a threaded spindle.

What is the advantage of the double-ended legs?

The wide and narrow leg ends automatically grip tighter under load for secure extraction.

Can you attach bolts to the puller legs?

Yes, the wide leg ends have 8 mm slots to pull components using M8 bolts.

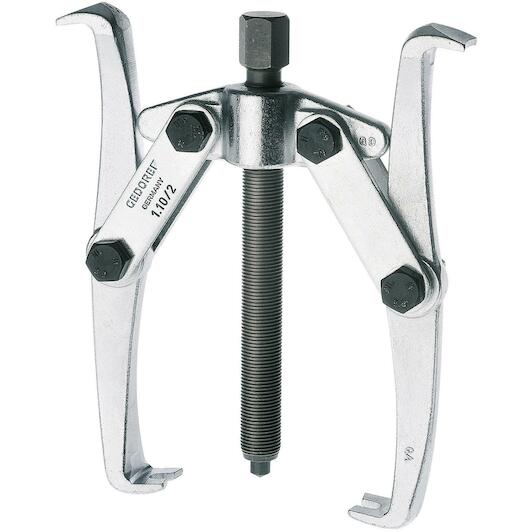

GEDORE 1.10/2 universal puller 160x130 mm - 8002790

Name: GEDORE 1.10/2 universal puller 160x130 mm - 8002790
Brand: GEDORE
SKU: 01041071
Price: 103.2 EUR
Availability: PreOrder

Supplier number: GEDORE 8002790 | EAN 4036976104332

Recommended Retail Price €163.88

103.20 tax incl.

€85.29 excl. VAT (incl. all environmental contributions)

On order: delivered from 20/10/2026

Delivery by DHL

✆ Talk to a specialist

Powerful pulling with the Gedore puller

Practical benefits

Automatic self-tightening grip: The double-sided leg ends clamp automatically under load, allowing you to remove pulleys, wheels, and bearings safely.
Flexible bolt extraction: Integrated 8 mm slots on the wide hook ends let you pull off gears and discs using standard bolts with ease.
Versatile working capacity: Featuring a 160 mm span width and 130 mm reach depth, you handle diverse mechanical extraction tasks effortlessly.

In a nutshell

The right choise for

With the Gedore 1.10/2 2-arm universal puller, you safely remove tightly seated components like bearings, pulleys, gears, and flywheels without damaging the shaft or workpiece. This mechanical puller provides a clamping width of up to 160 mm and a reach depth of up to 130 mm, giving you plenty of capacity for demanding workshop maintenance tasks. The double-sided leg ends clamp tighter automatically under tension, ensuring a dependable and secure grip as you drive the threaded spindle. Additionally, the integrated 8 mm slots on the wide hook ends allow you to extract components smoothly using bolts, eliminating the need for destructive disassembly methods.

Product information FAQ

€103.20

tax incl.

Key features according to our expert

Max. width: 160 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 130 mm

Product description

Proven, powerful design for pulling loose discs, wheels, ball bearings, etc.
The double-sided use of wide or narrow hook ends pulls itself tight
The wide hook ends of pullers No. 1.10/2, /3, /4 and /5 are fitted with 8 mm slots, so that discs or gears can also be pulled out using 8 mm screws

All Features

Max. width: 160 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 130 mm
Towing force (max.) [t]: 5
Clamping bracket available: No
Hook foot thickness at end e1 [mm]: 3.0 mm
Hook foot depth usable d2 [mm]: 13 mm
Suitable for use with a hydraulic spindle: No
Screws included: No
Hook foot width on the gripping surface c1 [mm]: 24 mm
Number of arms: 2
Reversible arms available: No
Double-sided hooks: No
Hook brake available: No
Drive hexagonal width: 19 mm
Spindle thread size: M 18x1.5 x 170
Crochet foot width: 20 mm
Span when pulled externally (max) [mm].: 160 mm
Spindle-slide protection: No
Automatic pressing: No
Clamping depth usable b [mm]: 130 mm

Brand GEDORE
01041071
EAN 4036976104332
Supplier number GEDORE 8002790

Frequently asked questions about this product

Answered by specialists

What is the Gedore 1.10/2 universal puller used for?: It is designed for pulling pulleys, wheels, gears, and ball bearings safely off shafts.
What are the maximum pulling dimensions?: This puller has a maximum clamping width of 160 mm and a maximum clamping reach of 130 mm.
Is this puller hydraulically operated?: No, the Gedore 1.10/2 operates purely mechanically using a threaded spindle.
What is the advantage of the double-ended legs?: The wide and narrow leg ends automatically grip tighter under load for secure extraction.
Can you attach bolts to the puller legs?: Yes, the wide leg ends have 8 mm slots to pull components using M8 bolts.
