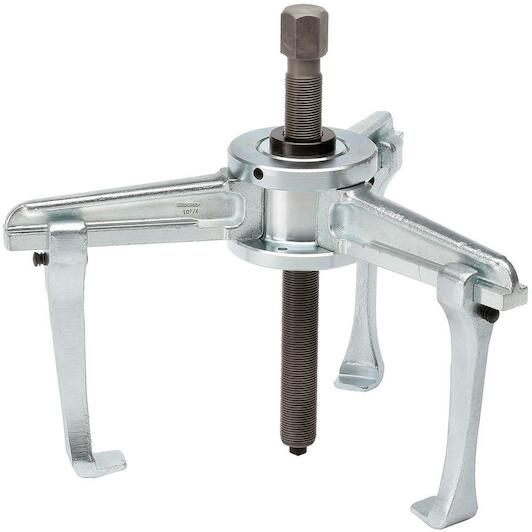

GEDORE 1.07/4A1-B universal puller 3-armed, all-steel hook with hook brake 580x200 mm - 2546558

GEDORE
Supplier number: GEDORE 2546558 | EAN 4036976126020
Recommended Retail Price €1,873.73
1,180.60 tax incl.
€975.70 excl. VAT (incl. all environmental contributions)
On order: delivered from 22/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€1,180.60
tax incl.

Product information

Key features according to our expert

  • Max. width: 640 mm
  • Number of hooks: 3
  • Max. height: 200 mm
  • Hydraulical: No
  • Puller type: Universel puller

Product description

  • Industrial quality, 3 arms for optimum load distribution, tilt-proof and material-friendly
  • Strong, ergonomically shaped traverse
  • Hook red-hot fall extension
  • All-steel hooks positively connected to the crossbeam
  • With patented hook brake - quick adjustment and secure attachment of hooks, at the push of a button
  • Can be used as an internal trigger by repositioning the hooks
  • Nitrocarbonised spindle surface, wear-resistant and corrosion-proof
  • Spindle remains smooth and clean - no need for greasing or oiling
  • Cross section can be combined with other spindle/hook designs and lengths from the GEDORE puller kit

All Features

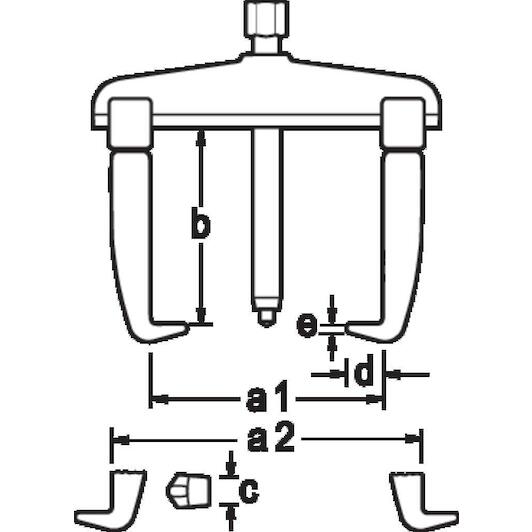

Max. width
640 mm
Number of hooks
3
Max. height
200 mm
Hydraulical
No
Puller type
Universel puller
Clamping bracket available
No
Quick-release lever available
No
Hook foot thickness at end e1 [mm]
6.5 mm
Overall length [mm]
137 mm
Reversible arms available
Yes
Hook foot depth usable d2 [mm]
28 mm
Suitable for use with a hydraulic spindle
Yes
Hydraulic spindle optional
1.06/HSP3
Screws included
No
Hook foot width on the gripping surface c1 [mm]
36 mm
Number of arms
3
Hooks parallel adjustable
No
Scale present
No
Span at external pull (min.) [mm].
150 mm
Anti-slip protection on the spindle available
No
Towing force (max.) [t]
10
Drive hexagonal width
36 mm
Spindle thread size
G 1" x 360
Hook brake available
Yes
Span for internal pull a2 (min.) [mm]
270 mm
Span for internal pulling a2 (max.) [mm]
640 mm
Span when pulled externally (max) [mm].
580 mm
Spindle-slide protection
No
Clamping depth usable b [mm]
200 mm
  • Brand GEDORE
  • EAN 4036976126020
  • Supplier number GEDORE 2546558
