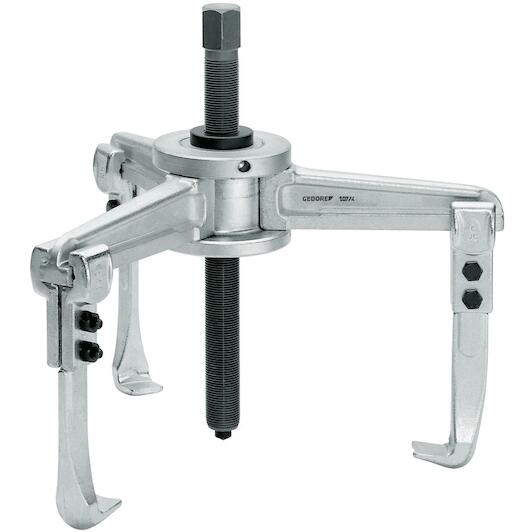

Product description
- Industrial quality, 3 arms for optimum load distribution, tilt-proof and material-friendly
- Strong, ergonomically shaped traverse
- Red-hot drop hook
- Pull hook with proven screw connection for a friction connection
- Can be used as internal trigger by moving the hooks
- Nitrocarbonised spindle surface, wear and corrosion resistant
- Spindle remains smooth and clean - no need for greasing or oiling
- Cross section can be combined with other spindle/hook designs and lengths from the GEDORE puller kit
Key features according to our expert
-
Max. width: 580 mm
-
Puller type: Universel puller
-
Number of hooks: 3
-
Hydraulical: No
-
Max. height: 200 mm
Specifications / All features
-
Brand:
GEDORE
-
01040956
-
EAN:
4036976121056
-
Supplier number:
GEDORE 1958003
- Max. width
- 580 mm
- Puller type
- Universel puller
- Number of hooks
- 3
- Hydraulical
- No
- Max. height
- 200 mm
- Hydraulic spindle optional
- 1.06/HSP3
- Hooks parallel adjustable
- No
- Number of arms
- 3
- Hook foot width on the gripping surface c1 [mm]
- 36 mm
- Screws included
- No
- Hook foot depth usable d2 [mm]
- 28 mm
- Suitable for use with a hydraulic spindle
- No
- Anti-slip protection on the spindle available
- No
- Scale present
- No
- Hook foot thickness at end e1 [mm]
- 6.5 mm
- Quick-release lever available
- No
- Clamping bracket available
- No
- Reversible arms available
- No
- Drive hexagonal width
- 36 mm
- Towing force (max.) [t]
- 10
- Span at external pull (min.) [mm].
- 150 mm
- Spindle thread size
- G 1 x 360
- Hook brake available
- No
- Span for internal pull a2 (min.) [mm]
- 270 mm
- Span for internal pulling a2 (max.) [mm]
- 640 mm
- Span when pulled externally (max) [mm].
- 580 mm
- Spindle-slide protection
- No
- Clamping depth usable b [mm]
- 200 mm
