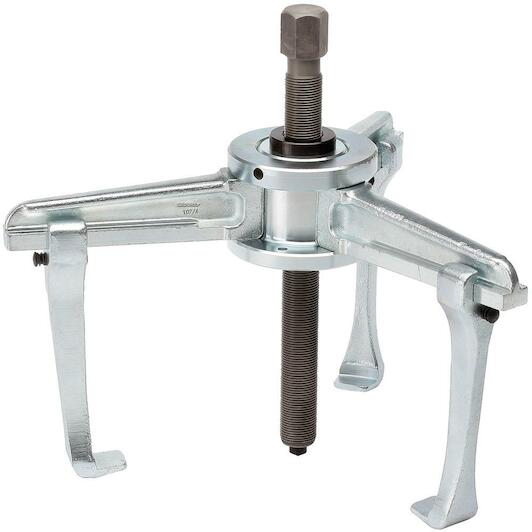

GEDORE 1.07/41-B universal puller 3-armed, all-steel hook with hook brake 450x200 mm - 2546531

GEDORE
Supplier number: GEDORE 2546531 | EAN 4036976126013
Recommended Retail Price €1,532.97
965.80 tax incl.
€798.18 excl. VAT (incl. all environmental contributions)
On order: delivered from 21/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€965.80
tax incl.

Product information

Key features according to our expert

  • Max. width: 450 mm
  • Puller type: Universel puller
  • Hydraulical: No
  • Number of hooks: 3
  • Max. height: 200 mm

Product description

  • Industrial quality, 3 arms for optimum load distribution, tilt-proof and material-friendly
  • Strong, ergonomically shaped traverse
  • Hook red-hot fall extension
  • All-steel hooks positively connected to the crossbeam
  • With patented hook brake - quick adjustment and secure attachment of hooks, at the push of a button
  • Can be used as an internal trigger by moving the hooks
  • Nitrocarbonised spindle surface, wear and corrosion resistant
  • Spindle remains smooth and clean - no need for greasing or oiling
  • Cross section can be combined with other spindle/hook designs and lengths from the GEDORE puller kit

All Features

Max. width
450 mm
Puller type
Universel puller
Hydraulical
No
Number of hooks
3
Max. height
200 mm
Hydraulic spindle optional
1.06/HSP3
Hooks parallel adjustable
No
Number of arms
3

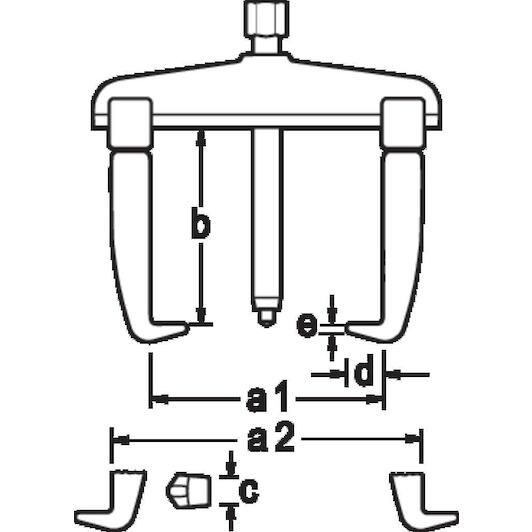

Hook foot width on the gripping surface c1 [mm]
36 mm
Screws included
No
Scale present
No
Suitable for use with a hydraulic spindle
No
Hook foot depth usable d2 [mm]
28 mm
Anti-slip protection on the spindle available
No
Overall length [mm]
137 mm
Hook foot thickness at end e1 [mm]
6.5 mm
Quick-release lever available
No
Clamping bracket available
No
Reversible arms available
No
Drive hexagonal width
36 mm
Towing force (max.) [t]
10
Span at external pull (min.) [mm].
150 mm
Spindle thread size
G 1" x 360
Hook brake available
No
Span for internal pull a2 (min.) [mm]
270 mm
Span for internal pulling a2 (max.) [mm]
530 mm
Span when pulled externally (max) [mm].
450 mm
Spindle-slide protection
No
Spindle-point interchangeable
No
Clamping depth usable b [mm]
200 mm
  • Brand GEDORE
  • EAN 4036976126013
  • Supplier number GEDORE 2546531
