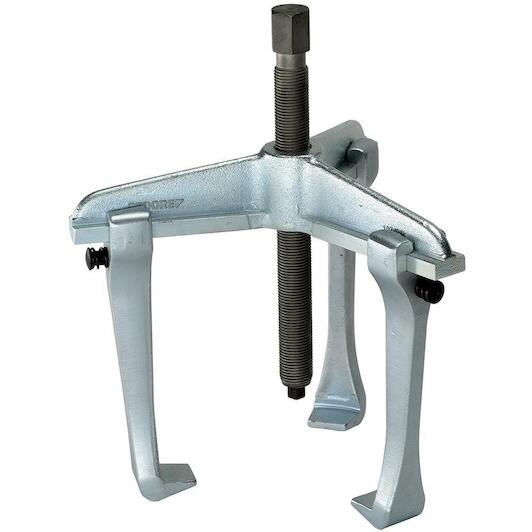

GEDORE 1.07/21-B universal puller 3-armed, all-steel hook with hook brake 160x150 mm - 1957961

Show more features

Max. width

220 mm

Hydraulical

No

Max. height

150 mm

Number of hooks

3

Puller type

Universel puller

Clamping bracket available

No

Quick-release lever available

No

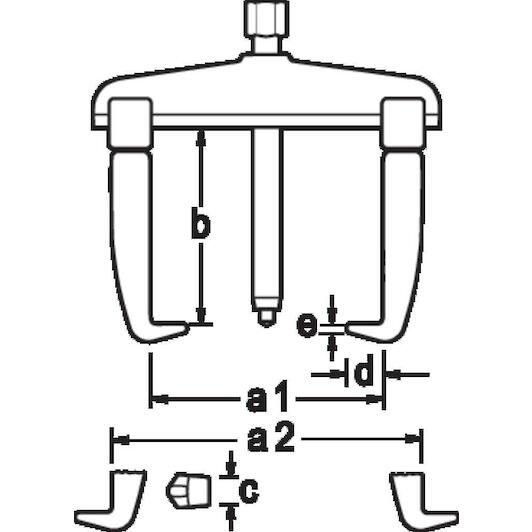

Hook foot thickness at end e1 [mm]

3.5 mm

Reversible arms available

Yes

Hook foot depth usable d2 [mm]

24 mm

Suitable for use with a hydraulic spindle

Yes

Hydraulic spindle optional

1.06/HSP1

Screws included

No

Hook foot width on the gripping surface c1 [mm]

30 mm

Number of arms

3

Hooks parallel adjustable

No

Scale present

No

Drive hexagonal width

22 mm

Anti-slip protection on the spindle available

No

Towing force (max.) [t]

5

Spindle thread size

G 1/2 x 210

Hook brake available

Yes

Span for internal pull a2 (min.) [mm]

100 mm

Span for internal pulling a2 (max.) [mm]

220 mm

Span when pulled externally (max) [mm].

160 mm

Spindle-slide protection

No

Clamping depth usable b [mm]

150 mm
