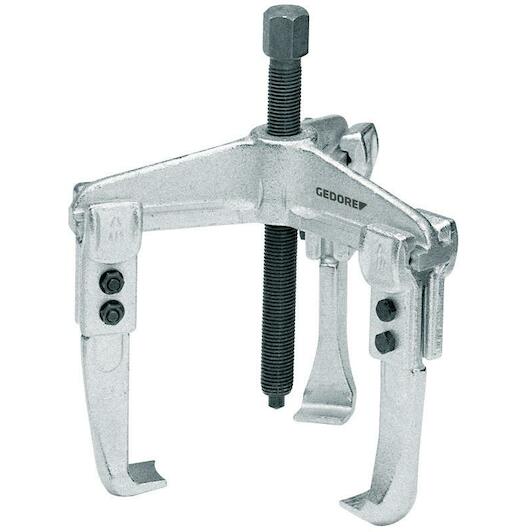

GEDORE 1.07/2 universal puller 3-arm 160x150 mm - 8114160

Supplier number: GEDORE 8114160 | EAN 4036976103885
Recommended Retail Price €284.33
167.80 tax incl.
€138.68 excl. VAT (incl. all environmental contributions)
On order: delivered from 10/10/2026

  • Delivery by DHL


€167.80
tax incl.

Product information

Key features according to our expert

  • Max. width: 160 mm
  • Number of hooks: 3
  • Max. height: 150 mm
  • Hydraulical: No
  • Puller type: Universel puller

Product description

  • Secure grip and centred pulling due to even load distribution on 3 hooks
  • Strong, ergonomically shaped traverse
  • Red-hot drop hook
  • Towing hook with proven screw connection for a frictional connection
  • Adjusting scale for even setting of the hooks
  • Enables centric, force-optimised pull-off even at very high pull-off forces
  • Nitrocarbonised spindle surface, wear-resistant and corrosion-proof
  • Spindle remains smooth and clean - no need for greasing or oiling
  • Cross section can be combined with other spindle/hook designs and lengths from the GEDORE puller kit
  • Interchangeable hooks for several spindle depths are available as accessories

All Features

Max. width
160 mm
Number of hooks
3
Max. height
150 mm
Hydraulical
No
Puller type
Universel puller
Clamping bracket available
No
Quick-release lever available
No

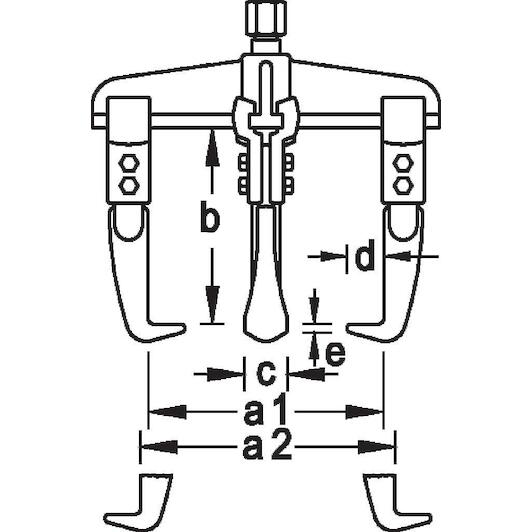

Hook foot thickness at end e1 [mm]
3.5 mm
Reversible arms available
No
Hook foot depth usable d2 [mm]
18 mm
Suitable for use with a hydraulic spindle
Yes
Hydraulic spindle optional
1.06/HSP1
Screws included
No
Hook foot width on the gripping surface c1 [mm]
30 mm
Number of arms
3
Hooks parallel adjustable
No
Scale present
No
Drive hexagonal width
22 mm
Anti-slip protection on the spindle available
No
Towing force (max.) [t]
5
Spindle thread size
G 1/2 x 210
Hook brake available
No
Span for internal pull a2 (min.) [mm]
100 mm
Span for internal pulling a2 (max.) [mm]
220 mm
Span when pulled externally (max) [mm].
160 mm
Spindle-slide protection
No
Clamping depth usable b [mm]
150 mm
  • Brand GEDORE
  • EAN 4036976103885
  • Supplier number GEDORE 8114160
