gedore_1227335

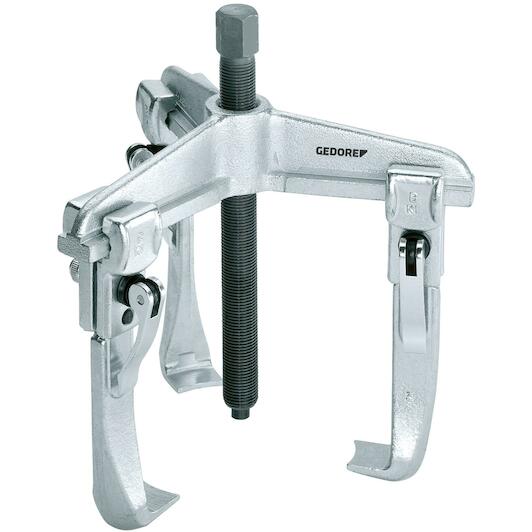

GEDORE 1.07/2-E universal quick release lever 3-arm 160x150 mm - 1227335

Supplier number: GEDORE 1227335 | EAN 4036976106428
Recommended Retail Price €348.79
205.95 tax incl.
€170.21 excl. VAT (incl. all environmental contributions)
On order: delivered from 09/10/2026

  • Delivery by DHL


€205.95
tax incl.

Product information

Key features according to our expert

  • Max. width: 220 mm
  • Puller type: Universel puller
  • Hydraulical: No
  • Number of hooks: 3
  • Max. height: 150 mm

Product description

  • Industrial quality, 3 arms for optimum load distribution, tilt-proof and material-friendly
  • Strong, ergonomically shaped traverse
  • Hook red-hot fall prevention
  • Self-supporting hooks with T-profile for dimensionally stable connection
  • Patented quick adjustment for easy, safe setting and adjustment - without using tools
  • Can be used as an internal trigger by repositioning the hooks
  • Nitrocarbonised spindle surface, wear-resistant and corrosion-proof
  • Spindle remains smooth and clean - no need for greasing or oiling
  • Cross section can be combined with other spindle/hook designs and lengths from the GEDORE puller kit

All Features

Max. width
220 mm
Puller type
Universel puller
Hydraulical
No
Number of hooks
3
Max. height
150 mm
Hydraulic spindle optional
1.06/HSP1
Hooks parallel adjustable
No
Number of arms
3
Hook foot width on the gripping surface c1 [mm]
30 mm
Screws included
No
Hook foot depth usable d2 [mm]
18 mm
Suitable for use with a hydraulic spindle
Yes
Anti-slip protection on the spindle available
No
Scale present
No
Hook foot thickness at end e1 [mm]
3.5 mm
Quick-release lever available
Yes
Clamping bracket available
No
Reversible arms available
Yes
Drive hexagonal width
22 mm
Traction force (max.) [n].
10,0 N
Towing force (max.) [t]
5
Spindle thread size
G 1/2 x 210
Hook brake available
No
Span for internal pull a2 (min.) [mm]
100 mm
Span for internal pulling a2 (max.) [mm]
220 mm
Span when pulled externally (max) [mm].
160 mm
Spindle-slide protection
No
Clamping depth usable b [mm]
150 mm
  • Brand GEDORE
  • EAN 4036976106428
  • Supplier number GEDORE 1227335
