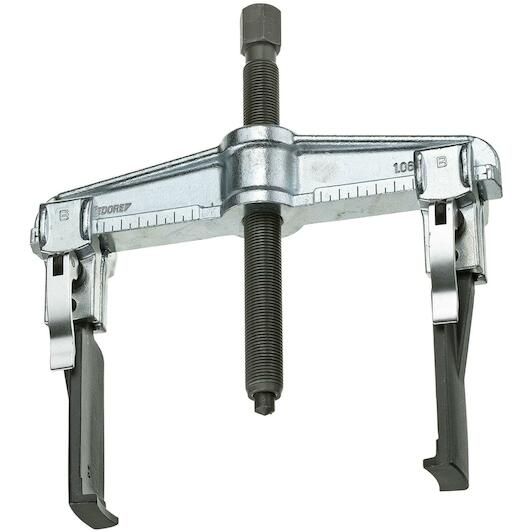

GEDORE 1.06/S2-E universal quick release lever 2-armed with slim hooks 160x150 mm - 2015722

Show more features

Max. width

160 mm

Hydraulical

No

Max. height

150 mm

Number of hooks

2

Puller type

Universel puller

Clamping bracket available

No

Quick-release lever available

Yes

Hook foot thickness at end e1 [mm]

5.0 mm

Reversible arms available

No

Hook foot depth usable d2 [mm]

7 mm

Suitable for use with a hydraulic spindle

No

Hydraulic spindle optional

1.06/HSP1

Screws included

No

Hook foot width on the gripping surface c1 [mm]

40 mm

Number of arms

2

Hooks parallel adjustable

No

Scale present

x

Drive hexagonal width

22 mm

Anti-slip protection on the spindle available

No

Towing force (max.) [t]

5

Spindle thread size

G 1/2 x 210

Hook brake available

No

Span when pulled externally (max) [mm].

160 mm

Total hook foot depth [mm]

15 mm

Spindle-slide protection

No

Spindle-point interchangeable

No

Clamping depth usable b [mm]

150 mm
