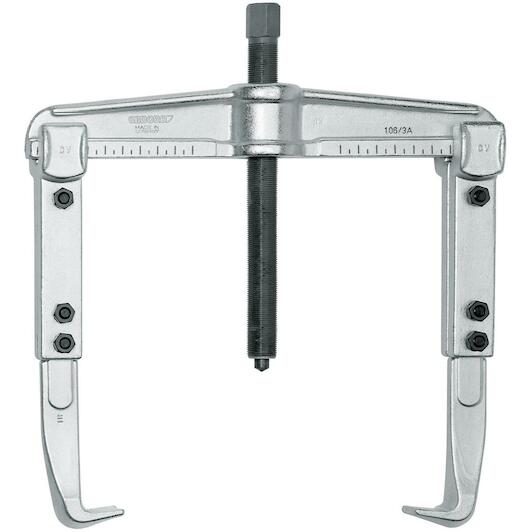

GEDORE 1.06/3-3 universal puller 2-armed 250x300 mm - 8001200

GEDORE
Supplier number: GEDORE 8001200 | EAN 4036976104257
Recommended Retail Price €435.77
257.20 tax incl.
€212.56 excl. VAT (incl. all environmental contributions)
On order: delivered from 07/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€257.20
tax incl.

Product information

Key features according to our expert

  • Max. width: 250 mm
  • Puller type: Universel puller
  • Hydraulical: No
  • Number of hooks: 2
  • Max. height: 300 mm

Product description

  • Robust, die-forged design
  • The spindle can be replaced by a hydraulic spindle if required (see table)
  • Extended hooks
  • Adjustment scale for even setting of the hooks
  • Enables centric, force-optimised retraction even with very high retraction forces
  • Exchangeable hooks for different spindle depths are available as accessories
  • Suitable for use with a hydraulic spindle (see table)

All Features

Max. width
250 mm
Puller type
Universel puller
Hydraulical
No
Number of hooks
2
Max. height
300 mm
Spindle surface coating
Nitrocharacterised
Reversible arms available
Yes
Hooks parallel adjustable
Yes
Number of arms
2
Spindle (usable) thread length [mm].
280 mm
Hook foot width on the gripping surface c1 [mm]
36 mm
Screws included
Yes
Suitable for use with a hydraulic spindle
Yes
Spindle take-up
G3/4"
Hydraulic spindle optional
1.06/HSP2
Spindle spanner width
27 mm
Hook foot depth usable d2 [mm]
28 mm
Scale present
x
Overall length [mm]
450 mm
Hook foot thickness at end e1 [mm]
6.5 mm
Quick-release lever available
No
Clamping bracket available
No
Anti-slip protection on the spindle available
No
Drive hexagonal width
27 mm
Spindle-slide protection
No
Implementation
2-arm with extended hooks
Spindle-point interchangeable
No
Span when pulled externally (max) [mm].
250 mm
Towing force (max.) [t]
7,5
Span for internal pulling a2 (max.) [mm]
330 mm
Span for internal pull a2 (min.) [mm]
125 mm
Use/application
For removing drive pulleys, wheels, ball bearings, etc.
Load of the entire tractor (max.) [t].
7,5 t
Hook brake available
No
Spindle print piece type
Spitze
Spindle thread size
G3/4x280mm
Clamping depth usable b [mm]
300 mm
  • Brand GEDORE
  • EAN 4036976104257
  • Supplier number GEDORE 8001200
