What is this universal quick-release puller used for?

This 2-arm puller is designed for the safe and quick removal of bearings, pulleys, and gear wheels.

What are the clamping capacities of the Gedore 1.06/2A-E?

The puller has a maximum clamping width of 200 mm and a usable reach of 150 mm.

Can this tool be used as an internal puller?

Yes, by reversing the legs you can easily convert it into an internal puller.

Is this puller hydraulically operated?

No, this is a mechanical spindle-driven puller.

How do you adjust the puller arms evenly?

The quick-release mechanism and adjustment scale ensure precise and centred alignment of the legs.

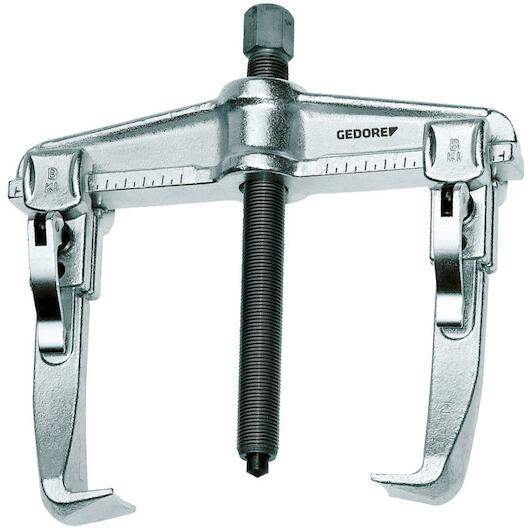

GEDORE 1.06/2A-E universal quick release chuck 2-armed 200x150 mm - 1217720

Name: GEDORE 1.06/2A-E universal quick release chuck 2-armed 200x150 mm - 1217720
Brand: GEDORE
SKU: 41231118
Price: 164.8 EUR
Availability: PreOrder

Supplier number: GEDORE 1217720 | EAN 4036976106282

Recommended Retail Price €282.39

164.80 tax incl.

€136.20 excl. VAT (incl. all environmental contributions)

On order: delivered from 07/10/2026

Delivery by DHL

✆ Talk to a specialist

Efficient extraction with Gedore 1.06/2A-E

Practical benefits

Fast adjustment without tools: The quick-release mechanism lets you position and lock the puller legs in seconds.
Versatile internal and external pulling: You can easily reverse the legs to remove components from the inside or the outside.
Centred and balanced force: The integrated scale helps you align the arms evenly for optimal and safe force transmission.

In a nutshell

The right choise for

With the Gedore 1.06/2A-E universal quick-release puller, you safely and quickly remove tight bearings, pulleys, and gears without damaging shafts. Thanks to the quick-release mechanism, you can adjust the two legs in seconds without needing extra tools. With a maximum clamping width of 200 mm and a reach of 150 mm, it handles a wide variety of workshop jobs with ease. The integrated scale ensures precise centring and balanced mechanical force transmission up to 5 tonnes. In addition, you can easily reverse the legs to use the tool as an internal puller.

Product information FAQ

€164.80

tax incl.

Key features according to our expert

Max. width: 200 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 150 mm

Product description

Tried-and-tested model for safely and quickly loosening discs, wheels, ball bearings, etc.
Robust, die-forged design
If required, the spindle can be replaced by a hydraulic spindle (see table)
Adjustment scale for even setting of the hooks
Enables centric, force-optimised retraction even with very high retraction forces
Interchangeable hooks for several clamping depths are available as accessories
Quick and uncomplicated setting and adjustment thanks to quick-release hooks
Suitable for use with a hydraulic spindle (see table)

All Features

Max. width: 200 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 150 mm
Hydraulic spindle optional: 1.06/HSP1
Hooks parallel adjustable: No
Number of arms: 2
Hook foot width on the gripping surface c1 [mm]: 30 mm
Screws included: No
Hook foot depth usable d2 [mm]: 18 mm
Suitable for use with a hydraulic spindle: Yes
Anti-slip protection on the spindle available: No
Scale present: x
Hook foot thickness at end e1 [mm]: 3.5 mm
Quick-release lever available: Yes
Clamping bracket available: No
Reversible arms available: Yes
Spindle thread size: G 1/2 x 210
Towing force (max.) [t]: 5
Drive hexagonal width: 22 mm
Hook brake available: No
Span for internal pull a2 (min.) [mm]: 90 mm
Span for internal pulling a2 (max.) [mm]: 260 mm
Span when pulled externally (max) [mm].: 200 mm
Spindle-slide protection: No
Spindle-point interchangeable: No
Clamping depth usable b [mm]: 150 mm

Brand GEDORE
41231118
EAN 4036976106282
Supplier number GEDORE 1217720

Frequently asked questions about this product

Answered by specialists

What is this universal quick-release puller used for?: This 2-arm puller is designed for the safe and quick removal of bearings, pulleys, and gear wheels.
What are the clamping capacities of the Gedore 1.06/2A-E?: The puller has a maximum clamping width of 200 mm and a usable reach of 150 mm.
Can this tool be used as an internal puller?: Yes, by reversing the legs you can easily convert it into an internal puller.
Is this puller hydraulically operated?: No, this is a mechanical spindle-driven puller.
How do you adjust the puller arms evenly?: The quick-release mechanism and adjustment scale ensure precise and centred alignment of the legs.
