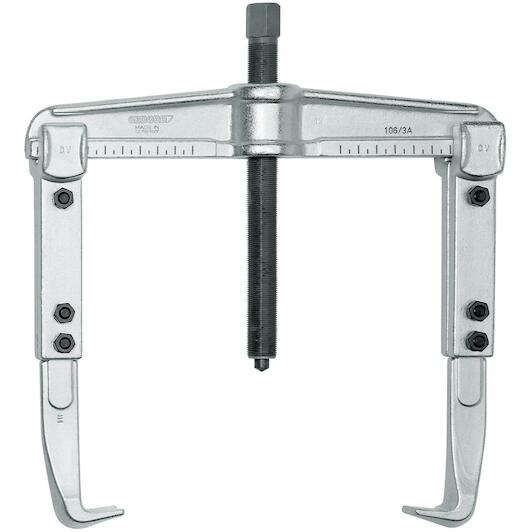

GEDORE 1.06/2A-3 universal puller 2-arm 200x300 mm - 8108780

Name: GEDORE 1.06/2A-3 universal puller 2-arm 200x300 mm - 8108780
Brand: GEDORE
SKU: 01040714
Price: 174.8 EUR
Availability: PreOrder

Supplier number: GEDORE 8108780 | EAN 4036976103434

Recommended Retail Price €303.20

174.80 tax incl.

€144.46 excl. VAT (incl. all environmental contributions)

On order: delivered from 07/10/2026

Delivery by DHL

✆ Talk to a specialist

Reliable extraction for deep-seated components

Practical benefits

Extended reach for depth: With extended 300 mm legs, you easily access and remove deeply recessed bearings, pulleys, and gears.
Premium Gedore construction: The drop-forged design delivers maximum durability, letting you extract stubborn mechanical components with complete confidence.
Smooth parallel adjustment: You can precisely adjust the clamping width up to 200 mm to ensure balanced force distribution across the workpiece.

In a nutshell

The right choise for

With the Gedore 1.06/2A-3 universal puller, you remove deep-seated bearings, gears, and pulleys without damaging shafts or surrounding components. Equipped with extended legs offering a 300 mm clamping reach and a width of up to 200 mm, it easily reaches hard-to-access assemblies. The integrated scale on the cross-beam ensures quick, centered adjustment of the drop-forged arms for balanced force distribution under loads up to 5 t. You can also reverse the legs for internal pulling, giving you the control and versatility needed for demanding mechanical maintenance and overhaul tasks.

Product information FAQ

€174.80

tax incl.

Key features according to our expert

Max. width: 200 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 300 mm

Product description

Robust, die-forged design
The spindle can be replaced by a hydraulic spindle if required (see table)
Extended hooks
Adjustment scale for even setting of the hooks
Enables centric, force-optimised retraction even with very high retraction forces
Exchangeable hooks for different spindle depths are available as accessories
Suitable for use with a hydraulic spindle (see table)

All Features

Max. width: 200 mm
Puller type: Universel puller
Hydraulical: No
Number of hooks: 2
Max. height: 300 mm
Spindle surface coating: Nitrocharacterised
Reversible arms available: Yes
Hooks parallel adjustable: Yes
Number of arms: 2
Spindle (usable) thread length [mm].: 210 mm
Hook foot width on the gripping surface c1 [mm]: 30 mm
Screws included: Yes
Suitable for use with a hydraulic spindle: Yes
Spindle take-up: G1/2"
Hydraulic spindle optional: 1.06/HSP1
Spindle spanner width: 22 mm
Hook foot depth usable d2 [mm]: 18 mm
Scale present: x
Overall length [mm]: 400 mm
Hook foot thickness at end e1 [mm]: 3.5 mm
Quick-release lever available: No
Clamping bracket available: No
Anti-slip protection on the spindle available: No
Drive hexagonal width: 22 mm
Spindle-slide protection: No
Implementation: 2-arm with extended hooks
Spindle-point interchangeable: No
Span when pulled externally (max) [mm].: 200 mm
Towing force (max.) [t]: 5
Span for internal pulling a2 (max.) [mm]: 260 mm
Span for internal pull a2 (min.) [mm]: 90 mm
Use/application: For removing drive pulleys, wheels, ball bearings, etc.
Load of the entire tractor (max.) [t].: 5 t
Hook brake available: No
Spindle print piece type: Spitze
Spindle thread size: G1/2x210mm
Clamping depth usable b [mm]: 300 mm

Brand GEDORE
01040714
EAN 4036976103434
Supplier number GEDORE 8108780

Frequently asked questions about this product

Answered by specialists

What are the maximum clamping dimensions of this puller?: This puller provides a maximum clamping spread of 200 mm for external pulling and a clamping reach of 300 mm with extended legs.
Can this tool be used for internal and external pulling?: Yes, reversing the legs allows you to easily switch between external and internal pulling applications.
How do you adjust the legs evenly on the beam?: The cross-beam features a scale for uniform leg adjustment, ensuring centered and optimized application of force.
Can this mechanical puller be upgraded with a hydraulic spindle?: Yes, you can replace the standard spindle with an optional hydraulic pressure spindle (1.06/HSP1).
What is the maximum pulling force of this model?: This puller is rated for a maximum tractive load of 5 t.
