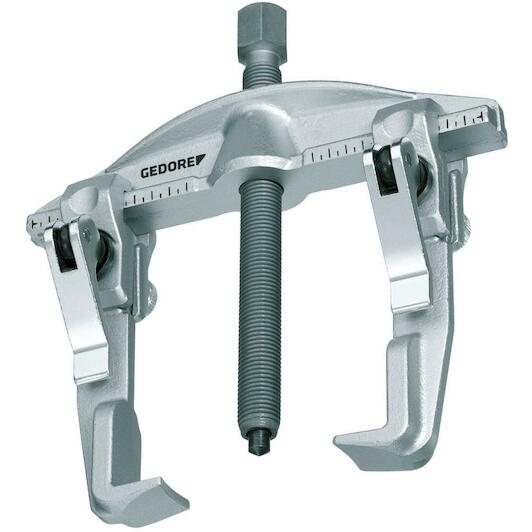

GEDORE 1.04/3A universal puller 2-arm 350x200 mm - 1307940

GEDORE
Supplier number: GEDORE 1307940 | EAN 4036976107227
Recommended Retail Price €568.55
324.80 tax incl.
€268.43 excl. VAT (incl. all environmental contributions)
On order: delivered from 08/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€324.80
tax incl.

Product information

Key features according to our expert

  • Max. width: 350 mm
  • Puller type: Universel puller
  • Hydraulical: No
  • Number of hooks: 2
  • Max. height: 200 mm

Product description

  • For safe and quick unloading of discs, wheels, ball bearings, etc.
  • Strong, ergonomically shaped cross beam with bending moment reinforcement
  • Thanks to the bending moment reinforcement on the upper side, the ergonomically shaped traverse provides even higher and reliable release torques

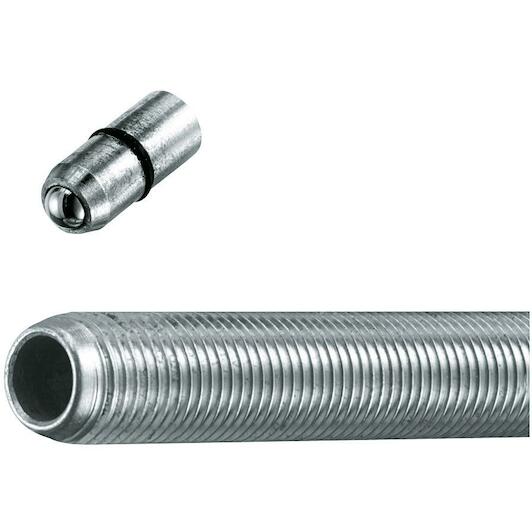

  • The spindle can be replaced by a hydraulic spindle if required (see table)
  • The quick adjustment feature contributes to ergonomic and fast working

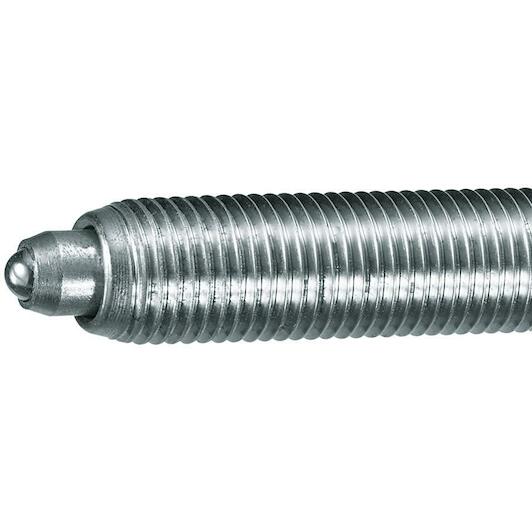

  • Interchangeable spindle tip (ball or pointed)
  • Suitable for use with a hydraulic spindle

All Features

Max. width
350 mm
Puller type
Universel puller
Hydraulical
No
Number of hooks
2
Max. height
200 mm
Spindle surface coating
Nitrocharacterised
Reversible arms available
Yes
Hooks parallel adjustable
Yes
Number of arms
2
Spindle (usable) thread length [mm].
280 mm
Hook foot width on the gripping surface c1 [mm]
36 mm
Screws included
No
Hydraulic spindle optional
1.06/HSP2
Spindle take-up
G3/4"
Suitable for use with a hydraulic spindle
Yes
Hook foot depth usable d2 [mm]
28 mm
Scale present
x
Hook foot thickness at end e1 [mm]
6.5 mm
Quick-release lever available
Yes
Clamping bracket available
No
Anti-slip protection on the spindle available
No
Spindle thread size
G3/4x280mm
Towing force (max.) [t]
7,5
Spindle-point interchangeable
Yes
Implementation
2-armed
Spindle-slide protection
No
Drive hexagonal width
27 mm
Span when pulled externally (max) [mm].
350 mm
Span for internal pulling a2 (max.) [mm]
420 mm
Span for internal pull a2 (min.) [mm]
150 mm
Use/application
For removing drive pulleys, wheels, ball bearings, etc.
Load of the entire tractor (max.) [t].
7,5 t
Hook brake available
No
Spindle print piece type
Kugel & Spitze
Clamping depth usable b [mm]
200 mm
  • Brand GEDORE
  • EAN 4036976107227
  • Supplier number GEDORE 1307940
