What are the maximum clamping reach and spread of this puller?

This puller has a maximum clamping width of 200 mm and a maximum clamping reach of 150 mm.

What is the benefit of the integrated leg brake?

The leg brake prevents unintentional slipping of the legs along the crossbeam, ensuring secure positioning.

Can this universal puller be used for internal pulling?

Yes, by reversing the legs on the crossbeam, this puller can be used as both an external and internal puller.

Is this puller hydraulically operated?

No, this model is equipped with a mechanical spindle and is not hydraulic.

How do you align the legs symmetrically on the crossbeam?

An adjustment scale on the crossbeam allows for quick, uniform, and centered positioning of both legs.

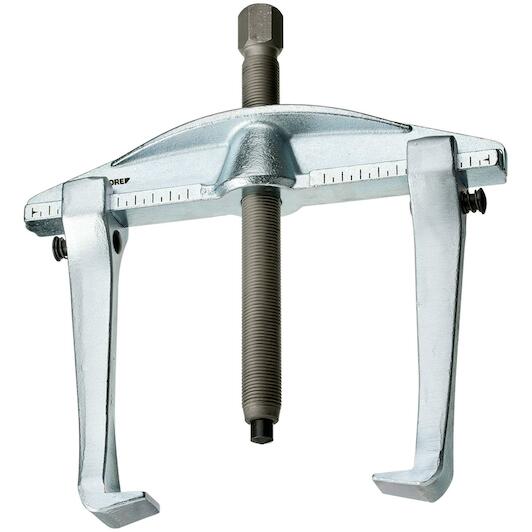

GEDORE 1.04/2A-B universal puller 2-armed, all-steel hook with hook brake 200x150 mm - 1981129

Name: GEDORE 1.04/2A-B universal puller 2-armed, all-steel hook with hook brake 200x150 mm - 1981129
Brand: GEDORE
SKU: 01040687
Price: 189.8 EUR
Availability: PreOrder

Supplier number: GEDORE 1981129 | EAN 4036976121759

Recommended Retail Price €312.62

189.80 tax incl.

€156.86 excl. VAT (incl. all environmental contributions)

On order: delivered from 20/10/2026

Delivery by DHL

✆ Talk to a specialist

Safe and controlled component removal

Practical benefits

Gedore universal puller performance: You reliably remove bearings and gears with a clamping width of up to 200 mm and 150 mm reach.
Secure integrated leg brake: The built-in leg brake prevents accidental slipping along the cross-beam, ensuring stable alignment while applying high tension.
Reversible internal external pulling: By reversing the rigid forged legs, you quickly convert the tool between external and internal pulling applications.

In a nutshell

The right choise for

With the Gedore 1.04/2A-B universal puller, you easily and safely remove seized ball bearings, pulleys, and gears from shafts without damaging surrounding parts. The integrated leg brake prevents unintentional slipping along the crossbeam, giving you optimal stability and safety while applying tension. Featuring a clamping width of up to 200 mm and a reach of 150 mm, this two-arm puller tackles demanding workshop jobs with ease. Using the built-in adjustment scale, you can quickly align the legs symmetrically or reverse them for internal pulling tasks. Take full control of your mechanical maintenance and get every disassembly job done quickly and accurately.

Product information FAQ

€189.80

tax incl.

Key features according to our expert

Max. width: 200 mm
Number of hooks: 2
Max. height: 150 mm
Hydraulical: No
Puller type: Universel puller

Product description

Thanks to the bending moment reinforcement at the top, the ergonomically shaped traverse features even higher and reliable release torques
Robust die-forged design
One-piece forged hooks
When loaded, the hooks retract automatically
With hook brake - protection against unintentional movement of the hooks
The hook can be moved on the crossbar at the push of a button
Adjustment scale for even setting of the hooks
Enables centric, force-optimised pull-off even with very high pull-off forces
If required, the spindle can be replaced by a hydraulic spindle (see table)
Interchangeable spindle tip (ball or pointed)
Spindle thermally hardened
Suitable for use with a hydraulic spindle

All Features

Max. width: 200 mm
Number of hooks: 2
Max. height: 150 mm
Hydraulical: No
Puller type: Universel puller
Anti-slip protection on the spindle available: No
Reversible arms available: Yes
Hooks parallel adjustable: Yes
Number of arms: 2
Spindle (usable) thread length [mm].: 210 mm
Hook foot width on the gripping surface c1 [mm]: 30 mm
Screws included: No
Spindle take-up: G1/2"
Spindle surface coating: Nitrocharacterised
Spindle spanner width: 22 mm
Suitable for use with a hydraulic spindle: Yes
Hook foot depth usable d2 [mm]: 24 mm
Scale present: x
Hook foot thickness at end e1 [mm]: 3.5 mm
Quick-release lever available: No
Clamping bracket available: No
Hydraulic spindle optional: 1.06/HSP1
Drive hexagonal width: 22 mm
Spindle-slide protection: No
Implementation: 2-armed
Spindle-point interchangeable: Yes
Span when pulled externally (max) [mm].: 200 mm
Towing force (max.) [t]: 5
Span for internal pulling a2 (max.) [mm]: 260 mm
Span for internal pull a2 (min.) [mm]: 110 mm
Use/application: For removing drive pulleys, wheels, ball bearings, etc.
Load of the entire tractor (max.) [t].: 5 t
Hook brake available: Yes
Spindle print piece type: Kugel & Spitze
Spindle thread size: G1/2x210mm
Clamping depth usable b [mm]: 150 mm

Brand GEDORE
01040687
EAN 4036976121759
Supplier number GEDORE 1981129

Frequently asked questions about this product

Answered by specialists

What are the maximum clamping reach and spread of this puller?: This puller has a maximum clamping width of 200 mm and a maximum clamping reach of 150 mm.
What is the benefit of the integrated leg brake?: The leg brake prevents unintentional slipping of the legs along the crossbeam, ensuring secure positioning.
Can this universal puller be used for internal pulling?: Yes, by reversing the legs on the crossbeam, this puller can be used as both an external and internal puller.
Is this puller hydraulically operated?: No, this model is equipped with a mechanical spindle and is not hydraulic.
How do you align the legs symmetrically on the crossbeam?: An adjustment scale on the crossbeam allows for quick, uniform, and centered positioning of both legs.
