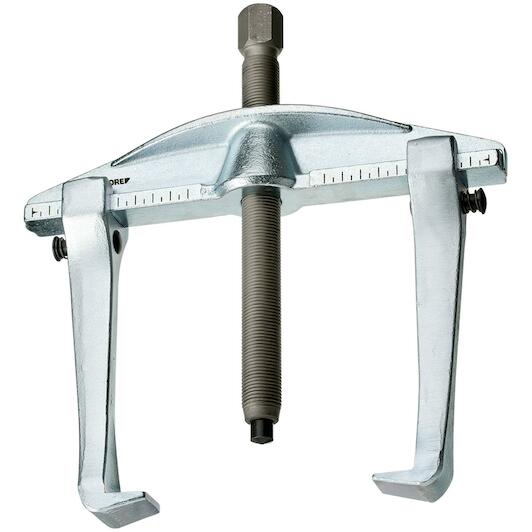

GEDORE 1.04/1A-B universal puller 2-armed, all-steel hook with hook brake 130x100 mm - 1981110

GEDORE
Supplier number: GEDORE 1981110 | EAN 4036976121742
Recommended Retail Price €165.36
103.40 tax incl.
€85.45 excl. VAT (incl. all environmental contributions)
On order: delivered from 17/10/2026

  • Delivery by DHL
✆ Talk to a specialist


Product information
€103.40
tax incl.

Product information

Key features according to our expert

  • Max. width: 130 mm
  • Number of hooks: 2
  • Max. height: 100 mm
  • Hydraulical: No
  • Puller type: Universel puller

Product description

  • Thanks to the bending moment reinforcement at the top, the ergonomically shaped traverse features even higher and reliable release torques
  • Robust die-forged design
  • One-piece forged hooks
  • When loaded, the hooks retract automatically
  • With hook brake - protection against unintentional movement of the hooks
  • The hook can be moved on the crossbar at the push of a button
  • Adjustment scale for even setting of the hooks
  • Enables centric, force-optimised pull-off even with very high pull-off forces
  • If required, the spindle can be replaced by a hydraulic spindle (see table)
  • Interchangeable spindle tip (ball or pointed)
  • Spindle thermally hardened

All Features

Max. width
130 mm
Number of hooks
2
Max. height
100 mm
Hydraulical
No
Puller type
Universel puller
Reversible arms available
Yes
Hooks parallel adjustable
Yes
Number of arms
2
Spindle (usable) thread length [mm].
140 mm
Hook foot width on the gripping surface c1 [mm]
22 mm
Screws included
No
Spindle surface coating
Nitrocharacterised
Spindle take-up
M14x1.5mm
Anti-slip protection on the spindle available
No
Hook foot depth usable d2 [mm]
15 mm
Scale present
x
Hook foot thickness at end e1 [mm]
3.0 mm
Quick-release lever available
No
Clamping bracket available
No
Suitable for use with a hydraulic spindle
No
Drive hexagonal width
17 mm
Spindle-point interchangeable
Yes
Implementation
2-armed
Spindle-slide protection
No
Towing force (max.) [t]
3
Span when pulled externally (max) [mm].
130 mm
Span for internal pulling a2 (max.) [mm]
170 mm
Span for internal pull a2 (min.) [mm]
70 mm
Use/application
For removing drive pulleys, wheels, ball bearings, etc.
Load of the entire tractor (max.) [t].
3 t
Hook brake available
Yes
Spindle thread size
M14x1.5x140mm
Clamping depth usable b [mm]
100 mm
  • Brand GEDORE
  • EAN 4036976121742
  • Supplier number GEDORE 1981110
