GEDORE 1 B 41 ring spanner UD profile 41 mm - 6003690

Name: GEDORE 1 B 41 ring spanner UD profile 41 mm - 6003690
Brand: GEDORE
SKU: 41890044
Price: 63.95 EUR
Availability: InStock

Supplier number: GEDORE 6003690 | EAN 4010886600368

Recommended Retail Price €113.86

63.95 tax incl.

€52.85 excl. VAT (incl. all environmental contributions)

On stock - immediately available | we have 2 products in stock.

Delivery by DHL

✆ Talk to a specialist

Maximum leverage for heavy fasteners

Practical benefits

Tough Gedore 1 B 41: You effortlessly loosen and tighten large 41 mm fixings using this robust combination spanner.
Reliable fastener head protection: The specialized UD-profile distributes torque across the flats to prevent rounded bolt corners.
Powerful mechanical leverage benefit: With a total length of 520 mm, you achieve high torque application with minimal physical strain.

In a nutshell

The right choise for

With the Gedore 1 b 41 combination spanner, you effortlessly loosen and tighten demanding 41 mm fasteners. Its generous 520 mm length provides high mechanical leverage, allowing you to free stubborn or over-torqued bolts with ease. The specialized UD-profile on the ring end distributes torque evenly across the flats, preventing bolt heads from rounding off. In addition, the 10° offset ring provides comfortable clearance and access around recessed fixings. Crafted from chrome-plated Gedore vanadium steel 31CrV3, this durable spanner delivers reliable performance for heavy machinery and vehicle maintenance.

Product information FAQ

€63.95

In stock - tax incl.

Key features according to our expert

Width across flats: 41 mm
Non-sparking: No
Length: 520 mm

Product description

Construction in accordance with DIN 3113 form B
ISO 3318
ISO 7738
Size 5 and 5.5 mm with hexagonal ring, from 6 mm with UD profile
Chrome vanadium steel 31CrV3, chrome-plated
Carefully forged and expertly machined
Ring bent and angled at 10°, with UD profile for careful force transmission
Overload is indicated by deformation
Deep-set or countersunk nuts or screws can be safely operated even with the curved washer
High industrial quality for continuous use under severe conditions, * not standardised

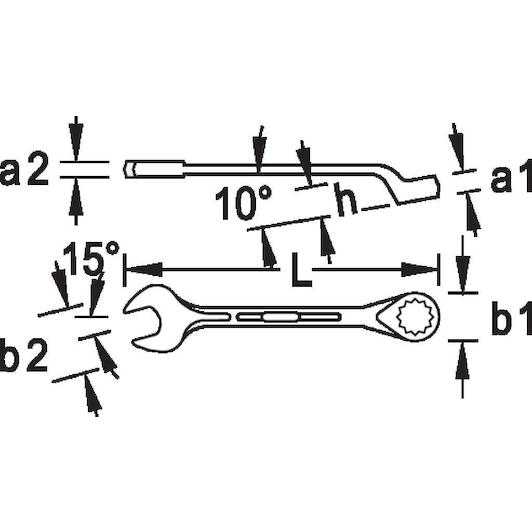

All Features

Width across flats: 41 mm
Non-sparking: No
Length: 520 mm
Head height 2 [mm]: 14 mm
Surface area: chromed
Head height 1 [mm]: 25.5 mm
Standard: DIN 3113 - form BISO 3318 ISO 7738
Head width 1 [mm].: 60.2 mm
Key width 1 [mm]: 41
Crown heights 1: 49 mm
Head width 2 [mm]: 85 mm
Weight lbs]: 3,200 lbs
Ring offset: 10°
Bekstand 1: 15°
Material: Vanadium steel 31CrV3
Overall length [mm]: 520 mm

Brand GEDORE
41890044
EAN 4010886600368
Supplier number GEDORE 6003690

Frequently asked questions about this product

Answered by specialists

What is the size of this combination spanner?: This spanner has a width across flats of 41 mm on both the open and ring ends.
What is the total length of the Gedore 1 B 41?: The overall length of this combination spanner is 520 mm.
What is the benefit of the UD profile on the ring end?: The UD profile ensures gentle and uniform torque transmission, protecting bolt heads from rounding off.
Is the ring end of this spanner offset?: Yes, the ring is offset by 10° from the shaft to provide better clearance around recessed fasteners.
Is this combination spanner non-sparking?: No, this spanner is not non-sparking and is made from chrome-plated Gedore vanadium steel 31CrV3.
