Scope of delivery
- 3-inch (75 mm) IR window
- Door lock with security key
- Warranty statement
- Fluke IR windows are complete, assembled and ready for installation
Product description
Installed and grounded in less than 5 minutes
Save time with the quick and easy installation of the CV series - installed in 5 minutes or less.
- One fitter
- One hole with standard Greenlee punch
- No need to remove the panel door
- Instantly grounds with the metal enclosure thanks to the patent-pending AutoGround process
- Meets arc discharge test values for distribution panels up to 63 kA when properly installed

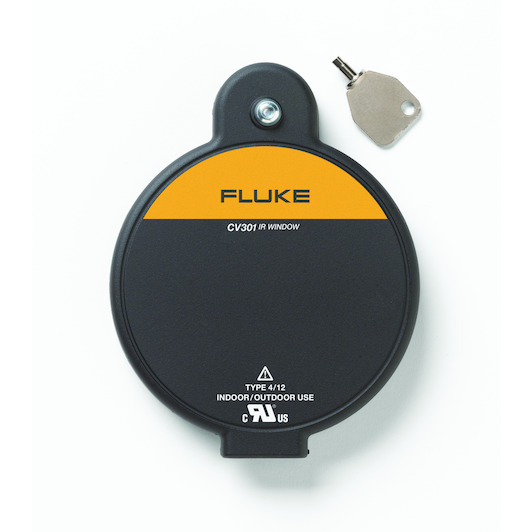

Work more efficiently with Fluke ClirVu CV301 75 mm (3 inch) infrared windows
- Significantly reduced NFPA 70E processes thanks to fewer work permit requirements

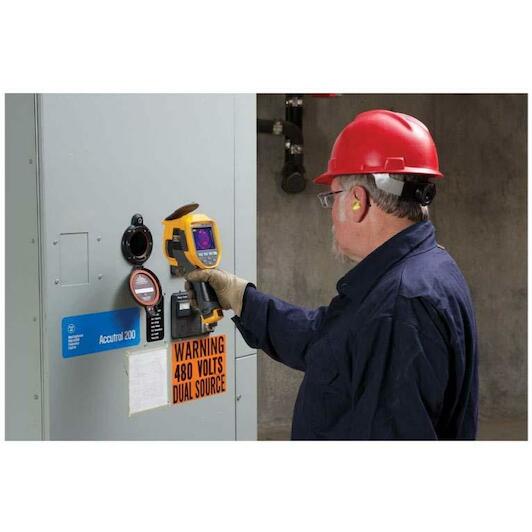

- Faster and more convenient inspections as full personal protective equipment is often not required
- Reduce the risk of arc discharge and electrocution, increase the safety of your staff and reduce preventive maintenance time and costs
- CV300 is Torture Tested according to the most stringent test requirements regarding arc discharges IEEE C37.20.7: 63 kA Tested for arcing by KEMA, UL 50/50E/50V, UL1558, IEC60529-1: IP67, IEC 60068, NEMA 4/12, CSA C22.2 NO. 14-13:2012 and CE

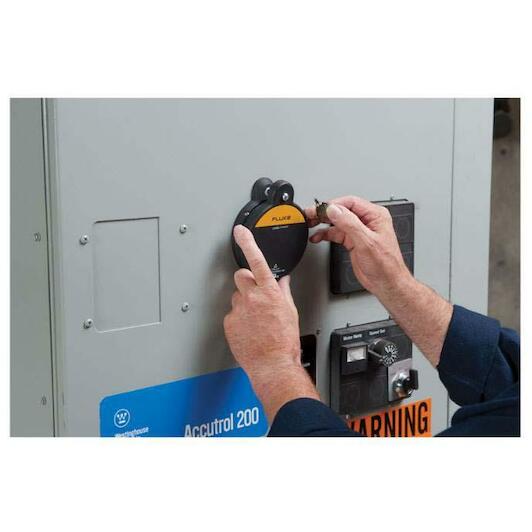

- Ease of quick access with a key or access with a security key
A company's biggest investment is not the equipment behind the panel door; its top priority is protecting the electricians, technicians and inspectors who risk their lives every day on the job.
The ClirVu coating - exclusive to Fluke infrared windows - seals the optics prior to assembly to protect against moisture degradation, making the window perfect for very hot and very cold environments.
An identification tag is attached to each Fluke infrared window, for unambiguous on-site numbering for quick site verification and faster repairs.
CV Series infrared windows are also available in 50 mm (2-inch) and 95 mm (4-inch) sizes.
